# MC500G-51 / MC600-10 / MC600-11 / MC600-50 / MC600-51 / MC600-52

## <mark style="color:blue;">Technical Resources</mark>

### Internal Access

The MC600 can be opened by the user. This does not void the warranty, however, any damage caused by doing so will not be covered.

The following steps will walk you through opening your MC600 case, as well as auto-powering on and clearing CMOS.

The case is very simple to open. To do so, remove the two screws from the back and slide the lid off towards the rear.

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FKmG20XzU0Hmy1LIpyDSA%2Fimage.png?alt=media&#x26;token=077b89b1-2727-45ec-b476-aaa788be2f0a" alt=""><figcaption></figcaption></figure>

***

## <mark style="color:blue;">MC600-10</mark>

### Motherboard

{% file src="<https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FYRRv8GK611RnwrhCIFPR%2FMC600-10%20Manual%20(1).pdf?alt=media&token=2d11d460-9315-4063-b68f-1e2318462a55>" %}

#### Drivers

[Click here for Drivers](https://drive.google.com/drive/folders/1gvW9DaS29yZJf243pQ4oxGfV2ax6BYKS)

### Auto Power On

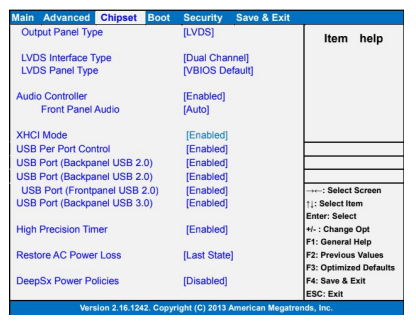

1. Power on the unit and press the Del key to access the BIOS
2. Navigate to the Chipset tab
3. Change “Restore AC Power Loss” to \[Power On]
4. Save changes and exit
5. Auto power on is now enabled

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FXhMPO5wRLQFmn56o2Xrl%2Fimage.png?alt=media&#x26;token=9507cac5-dc73-4a55-8b0e-23e3acb63b70" alt=""><figcaption></figcaption></figure>

### Clear CMOS <a href="#motherboard-reset-clear-the-cmos-2" id="motherboard-reset-clear-the-cmos-2"></a>

1. Locate the clear CMOS jumper
2. Move the jumper over by 1 pin
3. Wait 30 seconds
4. Restore the jumper to its original position
5. The CMOS is now clear

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FAMarsxzHiyIe9UXm3VHO%2Fimage.png?alt=media&#x26;token=8f640a75-ed96-4216-a19b-8b37a09374f1" alt=""><figcaption></figcaption></figure>

***

## <mark style="color:blue;">MC600-11</mark>

### Motherboard

Access the official [Motherboard manual & OEM Resources](https://www.asrockind.com/en-gb/IMB-156) from ASRock.  This external link provides access to the complete motherboard manual, along with the latest BIOS updates and specific drivers for your system's motherboard (IMB-156).

#### BIOS

**Warning:** Never interrupt a BIOS update. If the update is interrupted, the system may become irreparable.  Damage caused as a result of BIOS updates may not be covered by the system's warranty. &#x20;

You can follow this [how-to guide](https://support.onlogic.com/support-articles/how-tos/firmware-bios-drivers/asrock-bios-update-procedure) for installation instructions.

### Auto Power On

1. Locate the PWR\_JP1 jumper indicated by the orange circle
2. Move PWR\_JP1 over by 1 pin
3. The unit is now configured for auto power on

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FSXXy8kEghsV7mVhJ1J93%2Fimage.png?alt=media&#x26;token=229fcc53-a54d-46a1-9d51-01b28bfb44a8" alt=""><figcaption></figcaption></figure>

### Clear CMOS <a href="#motherboard-reset-clear-the-cmos-2" id="motherboard-reset-clear-the-cmos-2"></a>

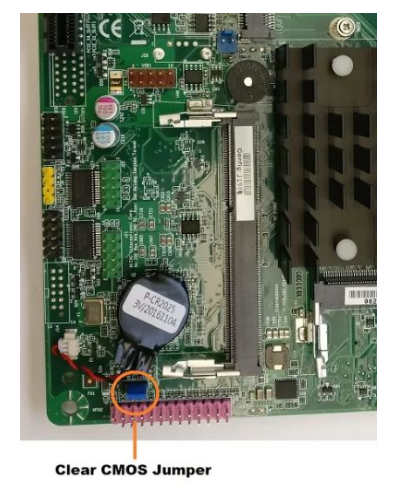

1. Locate the clear CMOS jumper
2. Move the jumper over by 1 pin
3. Wait 30 seconds
4. Restore the jumper to its original position
5. The CMOS is now clear

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FroI9dR7ZJc2u2XBD9RGa%2Fimage.png?alt=media&#x26;token=592dc36b-d241-4e00-af34-2fe9cb2a38ce" alt=""><figcaption></figcaption></figure>

***

## <mark style="color:blue;">MC600-50</mark>

### Motherboard

{% file src="<https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FLlwHKnZ1UhYph0nfpVOf%2FMC600-50%20Manual.pdf?alt=media&token=9771df92-c521-490c-96e9-e451717cadf3>" %}

#### Drivers

[Link to Drivers](https://drive.google.com/drive/folders/1RI7U0gtxFDJszG4u98IqBHzVZWDxqriS)

### Auto Power On

1. Locate the AT/ATX jumper
2. Move it over by 1 pin
3. Auto power on is now enabled

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fpj7JWAytXjWJdkqDCNyz%2Fimage.png?alt=media&#x26;token=9db008b6-c2c8-47a9-b145-98899f9c4f30" alt=""><figcaption></figcaption></figure>

### Clear CMOS

1. Locate the CLRMOS1 jumper
2. Move the jumper over by 1 pin
3. Wait 30 seconds
4. Restore the jumper to its original position
5. The CMOS is now clear

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FgwkyzC5vxyg6lcpUTM89%2Fimage.png?alt=media&#x26;token=63bb8bbf-82bb-471e-87ca-9a55a242ace3" alt=""><figcaption></figcaption></figure>

***

## <mark style="color:blue;">MC600-51</mark>

### Motherboard

Access the official [Motherboard manual & OEM Resources](https://www.asrockrack.com/general/productdetail.asp?Model=E3C226D2I#Specifications) from ASRock.  This external link provides access to the complete motherboard manual, along with the latest BIOS updates and specific drivers for your system's motherboard (E3C226D21).

{% file src="<https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FItkswisFyN8JzRJUEh9D%2FMC600-51%20Manual.pdf?alt=media&token=1e03bae4-7883-47ae-afa0-5eb3e3422299>" %}

[Link to Drivers](https://drive.google.com/drive/folders/1u68Rw9G7YfK4tV1FTj1N_fljHAdrO6AX)

### Auto Power On

1. Power on the unit and press the F2 key to access the BIOS
2. Navigate to the Advanced tab
3. Open the South Bridge Configuration menu
4. Change “Restore on AC/Power Loss” to \[Power on]
5. Save changes and exit from the Exit menu
6. Auto power on is now enabled

### Clear CMOS

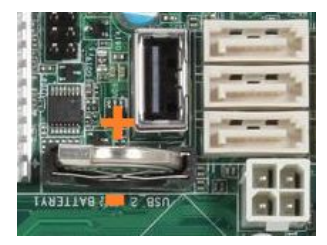

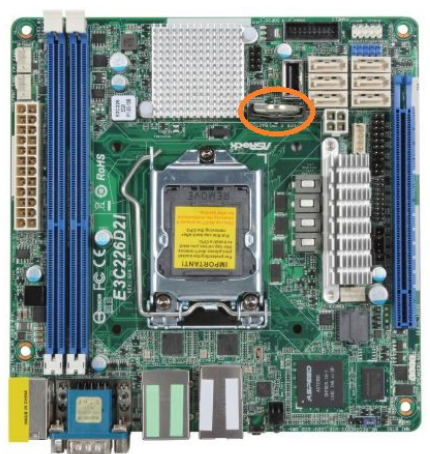

1. Locate the CMOS battery
2. Carefully remove it from the holder
3. Wait 5 minutes
4. Reinsert the battery
5. The CMOS is now clear

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F473CX5LlFHUwpoxoHZCg%2Fimage.png?alt=media&#x26;token=a6aff259-e042-4af9-8ece-e6f67e7970f2" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FrfcrMJk6MLAbD9Ej0LjC%2Fimage.png?alt=media&#x26;token=a5ab0710-eae2-4637-acb7-461176dbf6db" alt=""><figcaption></figcaption></figure>

***

## <mark style="color:blue;">MC500G-51 / MC600-52</mark>

### Motherboard

Access the official [Motherboard manual & OEM Resources](https://www.asrockind.com/en-gb/IMB-195) from ASRock.  This external link provides access to the complete motherboard manual, along with the latest BIOS updates and specific drivers for your system's motherboard (IMB-195).

{% file src="<https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FXhefc1Y1JyCKe6FMJgDD%2FMC600-52%20Manual.pdf?alt=media&token=6c4601b2-c78f-415c-896c-69fde48ef986>" %}

#### Drivers

[Link to Drivers](https://drive.google.com/drive/folders/17HrQDHq6T1wK0dzS8-3OCSR1bVE6aGLU)

### Auto Power On

1. Locate the AT/ATX jumper
2. Move it over by 1 pin
3. Auto power on is now enabled

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F7Ia4LWpbqmHDgHHxuNXS%2Fimage.png?alt=media&#x26;token=197ca911-0f30-4cb7-9bc4-a34a67dca2c9" alt=""><figcaption></figcaption></figure>

### Clear CMOS

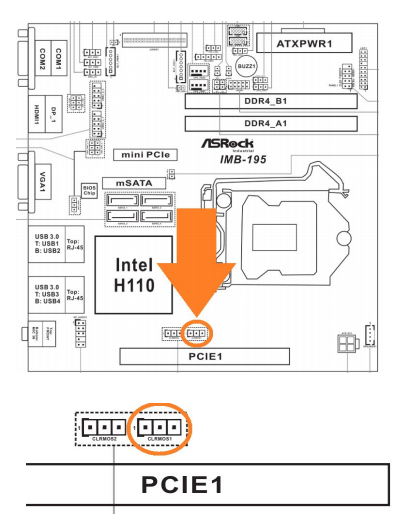

1. Locate the CLRMOS1 jumper
2. Move the jumper over by 1 pin
3. Wait 30 seconds
4. Restore the jumper to its original position
5. The CMOS is now clear

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FWtO1DsPN8wEGC0CgfFye%2Fimage.png?alt=media&#x26;token=db018296-895f-4525-b491-1826569df87c" alt=""><figcaption></figcaption></figure>
