# ML100G-40 / ML100G-41 / ML100G-53

## <mark style="color:blue;">Technical Resources</mark>

### Internal Access

The ML100 can be opened by the user. This does not void the warranty, however, any damage caused by doing so will not be covered.

1. Ensure your body is discharged of any static electricity by touching a grounded metal surface.
2. Remove the 4x phillips screws on the outside of the case.
3. Use the tab for leverage to pull the bottom panel off

<figure><img src="/files/MBWl8qqEpsRKXZd2jIon" alt="" height="278" width="420"><figcaption></figcaption></figure>

4. The internals of the unit can now be accessed

<figure><img src="/files/VMHvXJuYb56k6hzbaz0o" alt="" width="563"><figcaption></figcaption></figure>

***

## <mark style="color:blue;">ML100G-40</mark>

### Motherboard

Technical information related to the system's motherboard can be found from the support link below.

As of 12/2025, all ML100G-53s will be shipping with either I225s or I226s NICs.  This will be true until we run out of stock of the I225 motherboards

{% embed url="<https://www.asrockind.com/en-gb/product/489>" %}

### Auto Power On <a href="#enable-auto-power-on-4" id="enable-auto-power-on-4"></a>

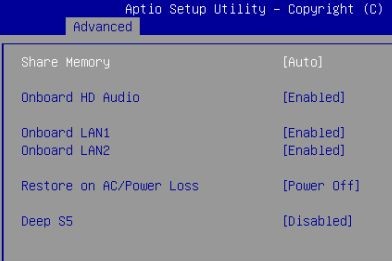

● Power on the unit and press F2 a few times to access the BIOS.\
● Navigate to the Advanced tab\
● Open the Chipset Configuration menu\
● Locate the Restore on AC/Power Loss option\
● Set it to Power On\
● Press escape twice to go back\
● Navigate to the Exit tab, Save Changes and Exit

<figure><img src="/files/zZ9WbDezdwodQ6WjjbDd" alt="" height="261" width="392"><figcaption></figcaption></figure>

### Clear CMOS <a href="#clear-the-cmos-4" id="clear-the-cmos-4"></a>

Disconnect the system from all wire connections (power, ethernet, video, etc), then:

● Locate the clear CMOS jumper\
● Move the jumper over by 1 pin\
● Wait 30 seconds\
● Restore the jumper to its original position\
● Close up and power on the system. It may power cycle several times before it begins working again.

<figure><img src="/files/LDRne1OjlgjfTYGsgzzJ" alt="" width="561"><figcaption></figcaption></figure>

### Troubleshooting <a href="#troubleshooting" id="troubleshooting"></a>

For increased reliability it is recommended to disable the Core Performance Boost BIOS setting. To disable the setting, navigate to:\
Advanced -> CPU Configuration -> Core Performance Boost -> Set to “Disabled”

Press F10 to Save & Exit.

***

## <mark style="color:blue;">ML100G-41</mark>

### Motherboard <a href="#drivers-5" id="drivers-5"></a>

Technical information related to the system's motherboard can be found from the support link below.

As of 12/2025, all ML100G-53s will be shipping with either I225s or I226s NICs.  This will be true until we run out of stock of the I225 motherboards

{% embed url="<https://www.asrockind.com/en-gb/4X4-V2000M>" %}

{% embed url="<https://www.asrockind.com/en-gb/4X4-4800U>" %}

***\*\*\*Please note that the AMD CPU’s Core Performance Boost (similar to Intel’s TurboBoost) is disabled on this series in order to maintain thermal performance in line with the expected operating temperature.\*\*\****

### Auto Power On <a href="#enable-auto-power-on-5" id="enable-auto-power-on-5"></a>

The auto power on feature will automatically turn the ML100 back on after DC power is lost and restored. To enable it, a jumper needs to be moved inside the unit. The ML100 can be opened by the user. This does not void the warranty, however, any damage caused by doing so will not be covered.

* Ensure your body is discharged of any static electricity by touching a grounded metal surface.
* Remove the 4x phillips screws on the outside of the case.
* Use the tab for leverage to pull the bottom panel off

<figure><img src="/files/MBWl8qqEpsRKXZd2jIon" alt="" height="278" width="420"><figcaption></figcaption></figure>

<figure><img src="/files/bSyQ0138yVSyoRvU6vKV" alt="" width="563"><figcaption></figcaption></figure>

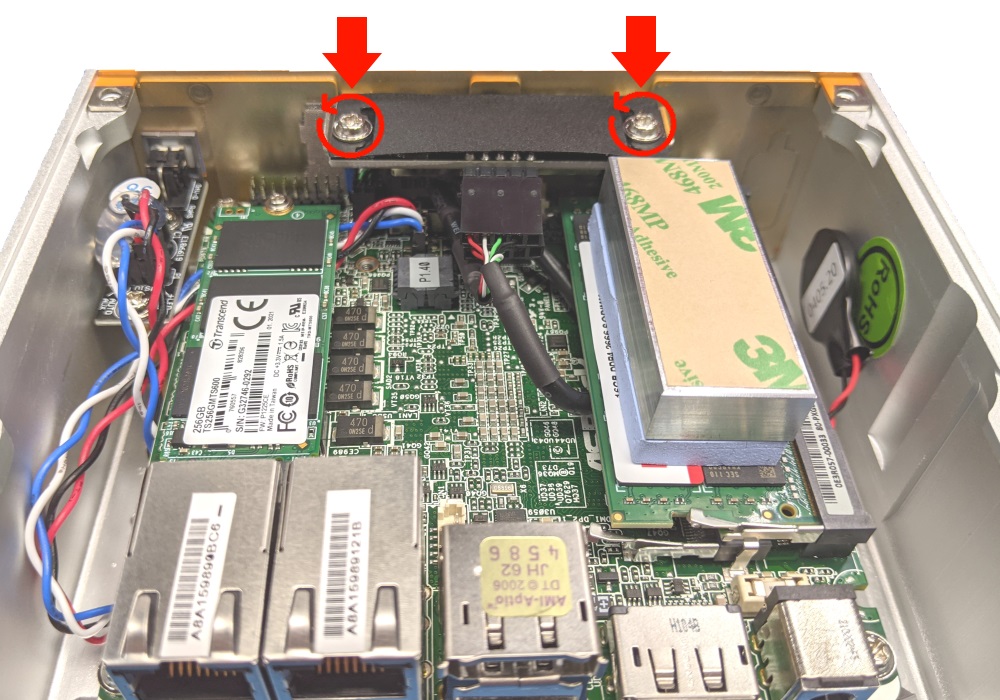

* Remove the two screws from the USB board and gently lift it out of the way, leaving it plugged in.

<figure><img src="/files/VwX8SKyOwHEasTtQklDH" alt="" width="563"><figcaption></figcaption></figure>

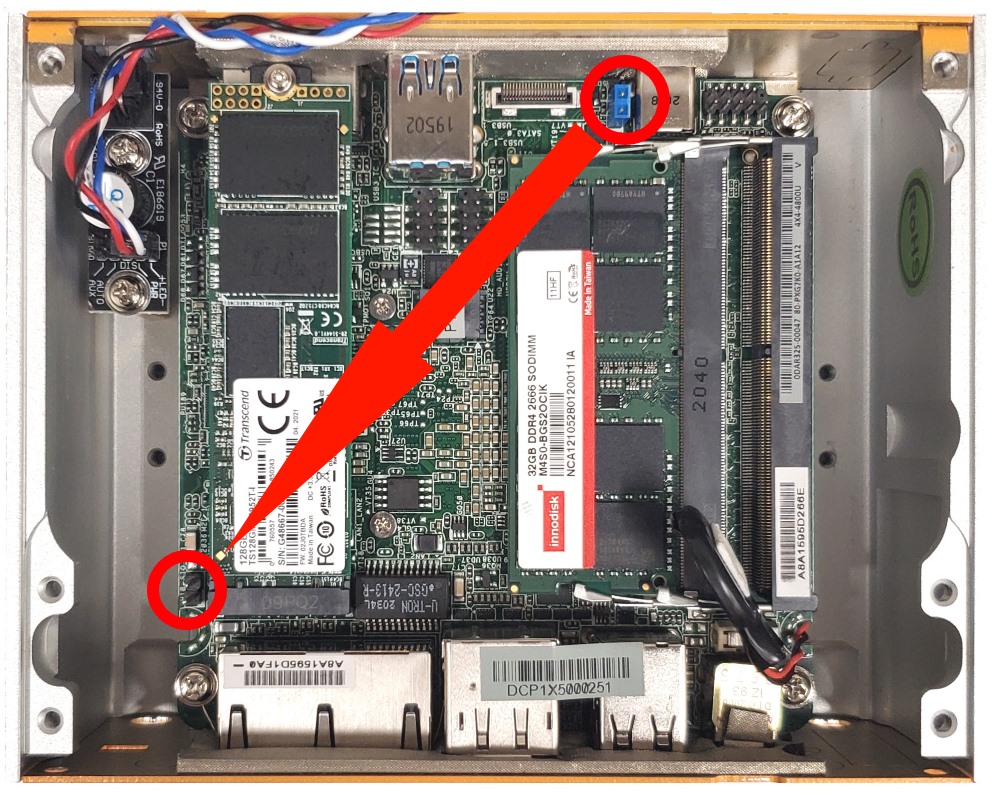

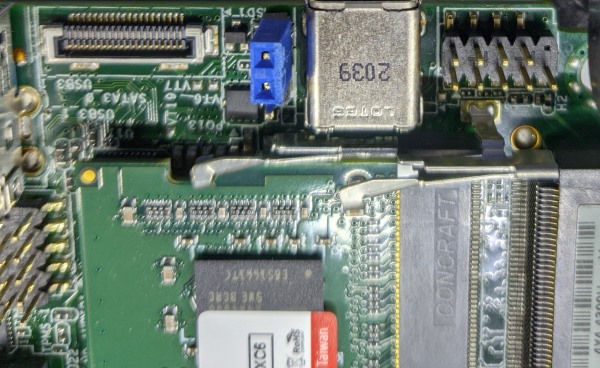

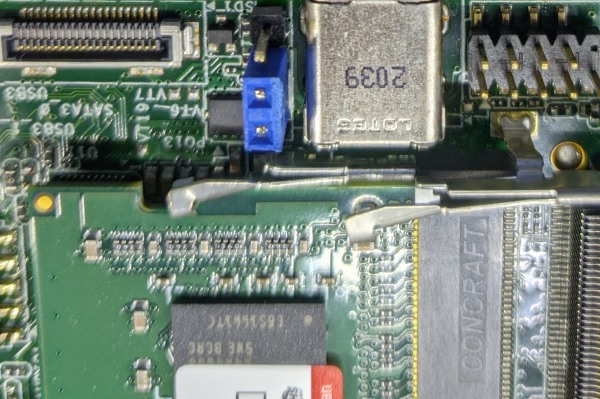

* Remove the blue jumper circled at the top and place it on the 2 pins circled in the bottom left.
* Note: We are borrowing the clear CMOS jumper for this procedure. If CMOS needs to be cleared at a later date, keep that in mind.
* Auto power on is now enabled and good to go.

### Troubleshooting <a href="#troubleshooting-2" id="troubleshooting-2"></a>

For increased reliability on systems with the optional 4X4-V2000M CPU, it is recommended to disable the Core Performance Boost BIOS setting. To disable the setting, navigate to:\
Advanced -> CPU Configuration -> Core Performance Boost -> Set to “Disabled”

Press F10 to Save & Exit.

### Clear CMOS <a href="#clearing-the-cmos" id="clearing-the-cmos"></a>

* Disconnect the unit from all wire connections (power, USB, ethernet, etc.)
* Remove the 4x phillips screws on the outside of the case.
* Use the tab for leverage to pull the bottom panel off

<figure><img src="/files/MBWl8qqEpsRKXZd2jIon" alt="" height="278" width="420"><figcaption></figcaption></figure>

<figure><img src="/files/bSyQ0138yVSyoRvU6vKV" alt="" width="563"><figcaption></figcaption></figure>

* Remove the two screws from the USB board and gently lift it out of the way, leaving it plugged in.

<figure><img src="/files/BopVYdA2CFPpHTifqwOP" alt="" width="563"><figcaption></figcaption></figure>

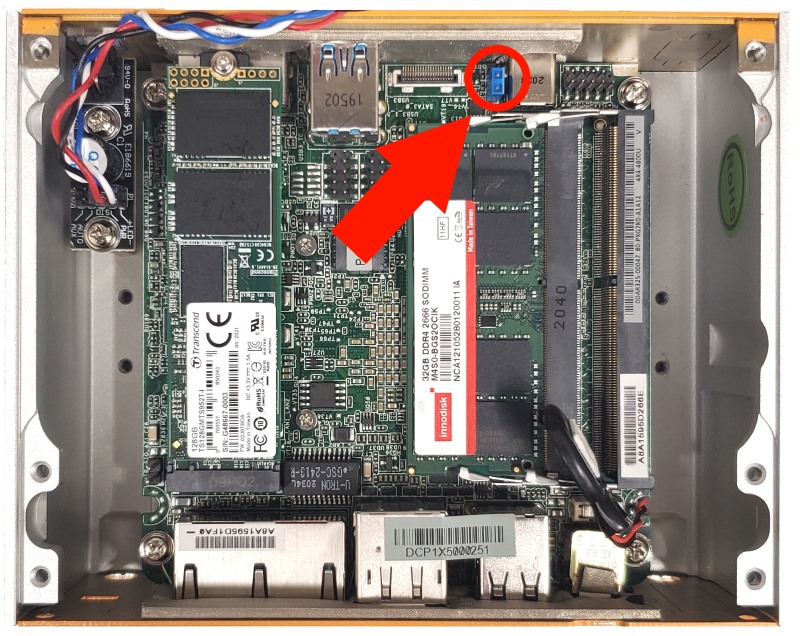

* Locate the clear CMOS jumper

<figure><img src="/files/8yOQZlxeo29JhGYphDbI" alt="" width="450"><figcaption></figcaption></figure>

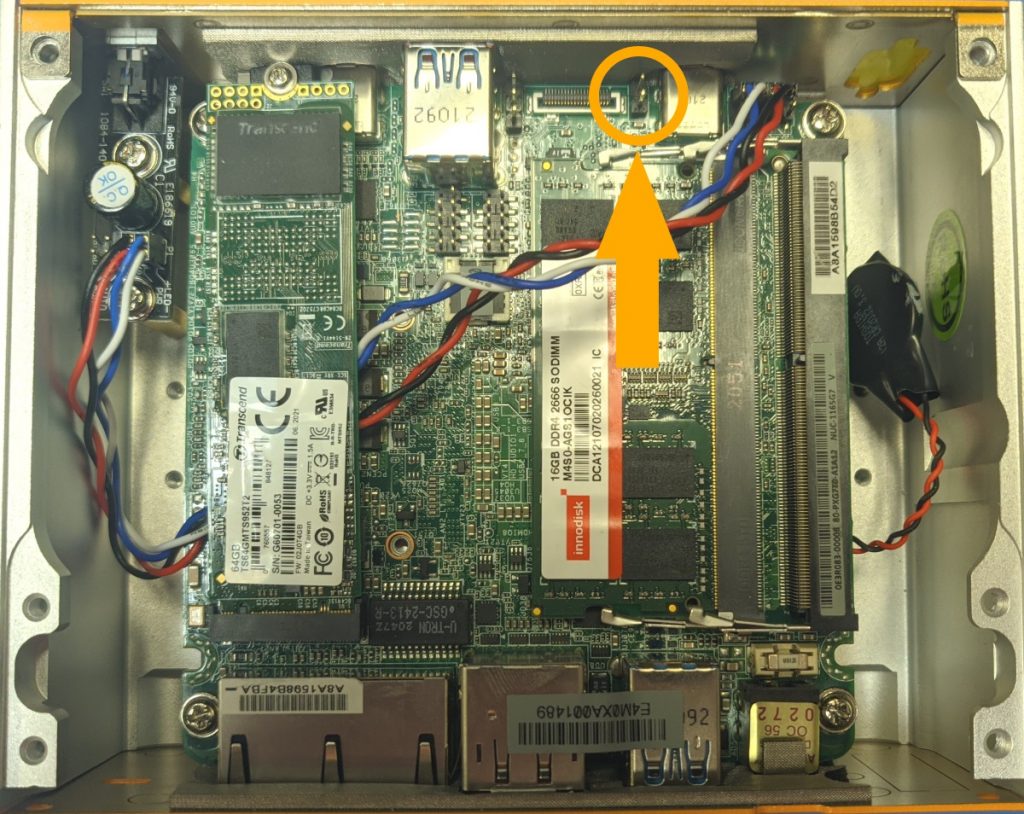

* The jumper will initially be in this position.

<figure><img src="/files/csijPNMfSuvdWPCorodW" alt="" width="450"><figcaption></figcaption></figure>

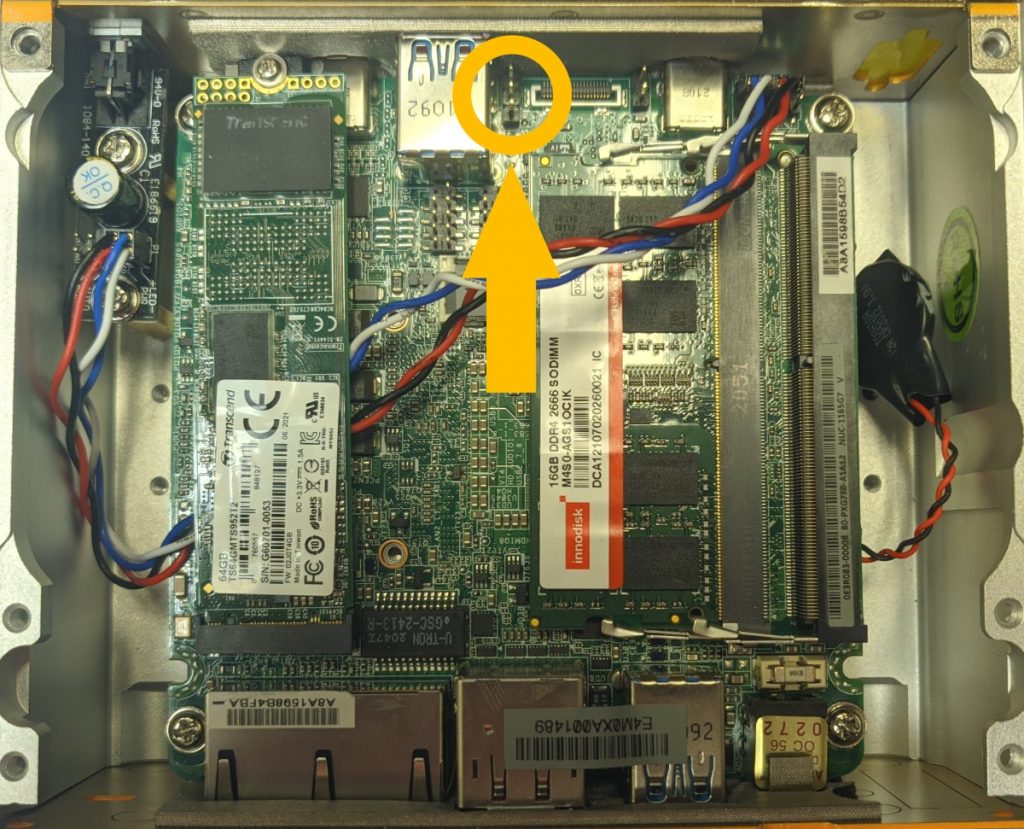

* Move the jumper over by 1 pin

<figure><img src="/files/ulnGPPkXH2pjhugMtDFi" alt="" width="450"><figcaption></figcaption></figure>

* Wait 30 seconds
* Move the jumper back to its original position.
* Re-assemble and power up the PC. Do not touch it for 2 minutes to allow it time to reconfigure itself. If it still does not respond, contact OnLogic support.

## <mark style="color:blue;">ML100G-53</mark>

### Motherboard

Technical information related to the system's motherboard can be found from the support link below.

As of 12/2025, all ML100G-53s will be shipping with either I225s or I226s NICs.  This will be true until we run out of stock of the I225 motherboards

{% embed url="<https://www.asrockind.com/en-gb/NUC-1115G4E>" %}

### BIOS Updates <a href="#bios-updates" id="bios-updates"></a>

| Version | Details                                  | Link                                                                                 |
| ------- | ---------------------------------------- | ------------------------------------------------------------------------------------ |
| 1.80A   | Update to include Intel I226 LAN support | [Download](https://static.onlogic.com/resources/bios/ML100/ML100G-53/NUCTGL180A.zip) |

*Update the BIOS with the file(s) above.  You can follow this* [*how-to*](/support-articles/how-tos/firmware-bios-drivers/update-efi-bios.md) *guide for installation instructions.*

### Auto Power On <a href="#enable-auto-power-on-9" id="enable-auto-power-on-9"></a>

<figure><img src="/files/nPnvCzry83xSB5UKzSZr" alt="" width="362"><figcaption></figcaption></figure>

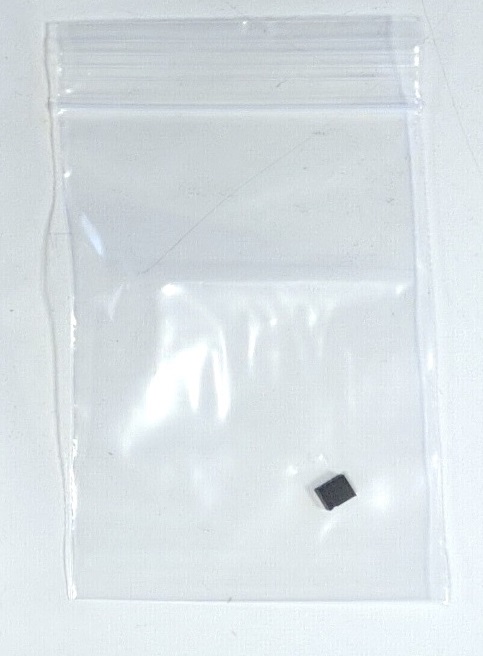

* Locate the jumper from your system’s accessory box.
* If you need a replacement, this is a standard 2.54mm jumper. Available from [DigiKey](https://www.digikey.com/en/products/detail/sullins-connector-solutions/SPC02SYAN/76375).
* Ensure your body is discharged of any static electricity by touching a grounded metal surface.

<figure><img src="/files/MBWl8qqEpsRKXZd2jIon" alt="" height="278" width="420"><figcaption></figcaption></figure>

* Disconnect the unit from all wire connections (power, USB, ethernet, etc.)
* Remove the 4x phillips screws on the outside of the case.
* Use the tab for leverage to pull the bottom panel off

<figure><img src="/files/3Dl5KKzLfEx1ubV47gIn" alt="" width="563"><figcaption></figcaption></figure>

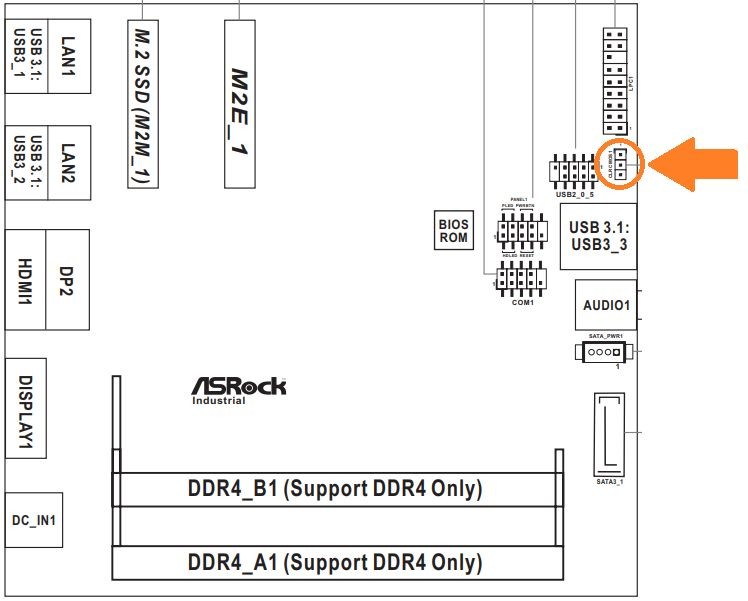

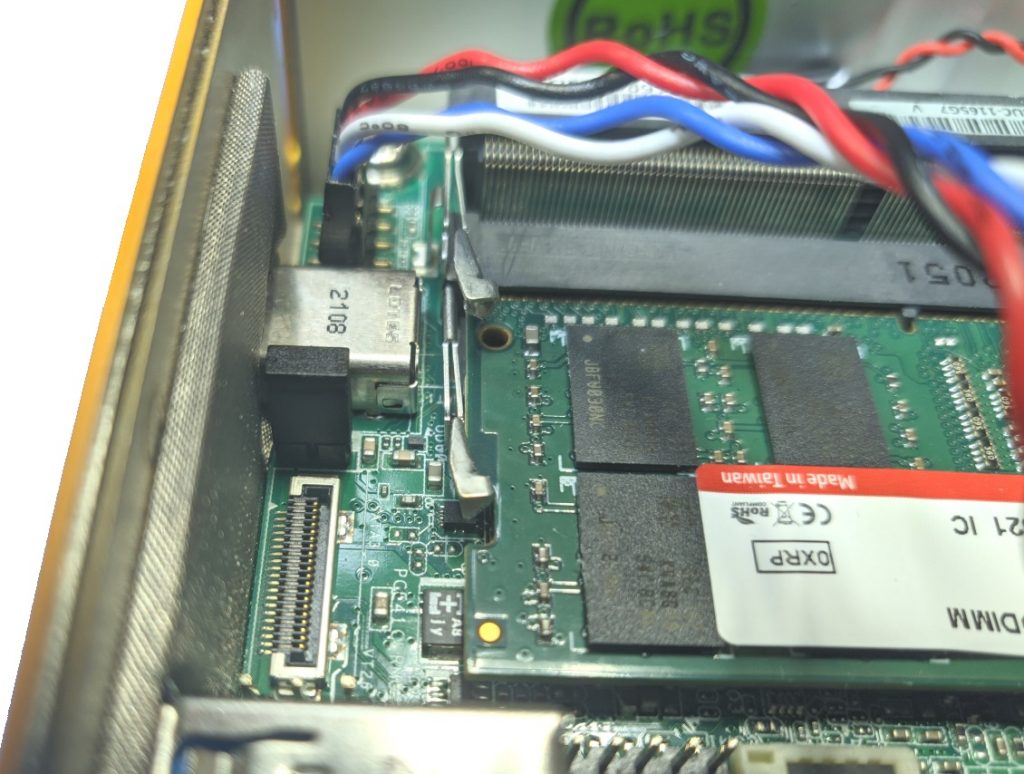

* Locate the auto power on header

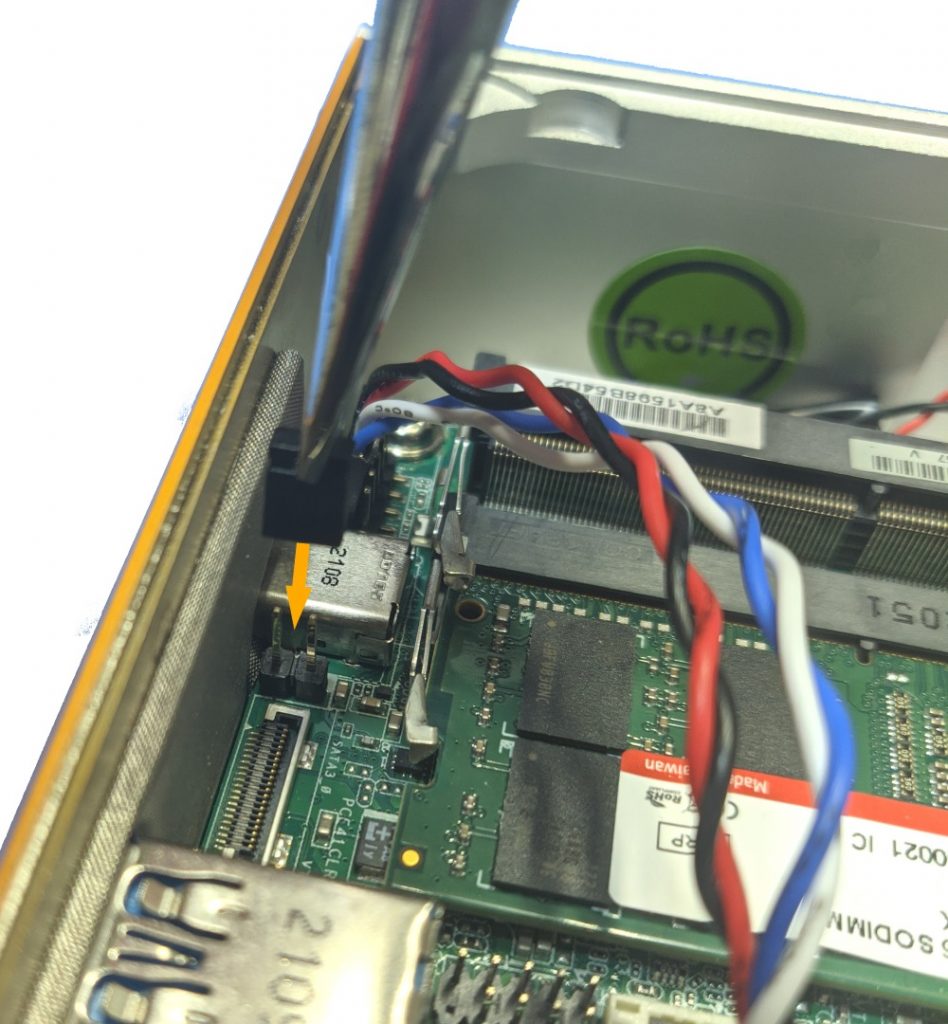

<figure><img src="/files/6z3xpndIXBJRVXm7rqQi" alt="" width="563"><figcaption></figcaption></figure>

* Place the jumper onto the header. Use needle nose pliers if available.

<figure><img src="/files/WaJn00iCnQ707vsnmKnh" alt="" width="563"><figcaption></figcaption></figure>

* Auto power on is now enabled.
* Re-assemble the system and it will turn on automatically when you plug it in.

### Clear CMOS <a href="#clearing-the-cmos-4" id="clearing-the-cmos-4"></a>

<figure><img src="/files/MBWl8qqEpsRKXZd2jIon" alt="" height="278" width="420"><figcaption></figcaption></figure>

* Disconnect the unit from all wire connections (power, USB, ethernet, etc.)
* Remove the 4x Philips screws on the outside of the case.
* Use the tab for leverage to pull the bottom panel off

<figure><img src="/files/7hBZm1ZXLBB8Xuxgwhy8" alt="" width="563"><figcaption></figcaption></figure>

● Locate the clear CMOS jumper\\

<figure><img src="/files/TJPAmx9cWKiqxJX9rw2v" alt="" width="563"><figcaption></figcaption></figure>

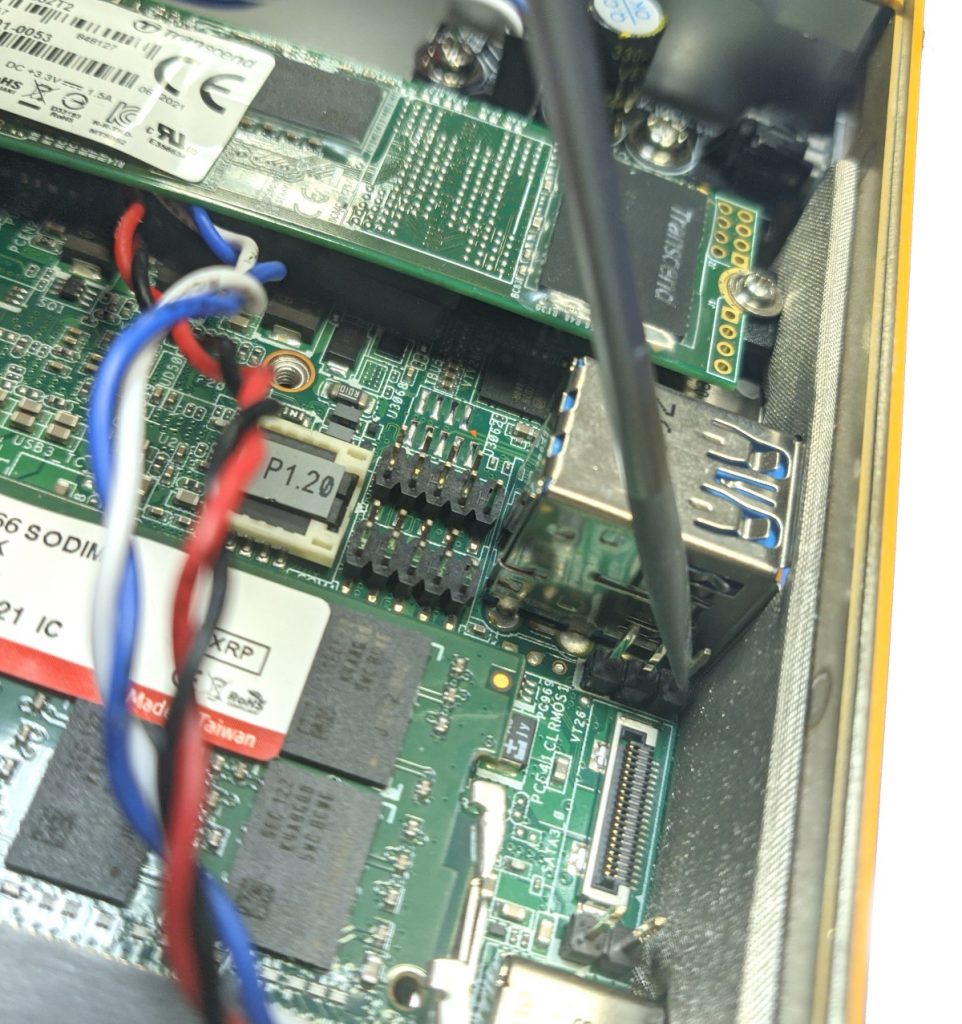

* Using a flathead screwdriver or similar conductive metal object, short the outer 2 pins of the CMOS header for 30 seconds.
* Re-assemble and power up the system. Wait patiently for 2 minutes as it will need to restart a couple times to reconfigure.
* If the unit is still unresponsive after 2 minutes, contact <support@onlogic.com>.
