ML100G-51 / ML100G-52

Technical Resources

Manuals & Downloads

Motherboard

Technical information related to the system's motherboard can be found from the support link below.

As of 12/2025, all ML100G-53s will be shipping with either I225s or I226s NICs. This will be true until we run out of stock of the I225 motherboards

https://www.asrockind.com/en-gb/NUC-8665UEwww.asrockind.com

https://www.asrockind.com/en-gb/NUC-8365UEwww.asrockind.com

https://www.asrockind.com/en-gb/NUC-8265Uwww.asrockind.com

Internal Access

The ML100 can be opened by the user. This does not void the warranty, however, any damage caused by doing so will not be covered.

1. Ensure your body is discharged of any static electricity by touching a grounded metal surface.

2. Remove the 4x phillips screws on the outside of the case.

3. Use the tab for leverage to pull the bottom panel off

1. The internals of the unit can now be accessed

Auto Power On

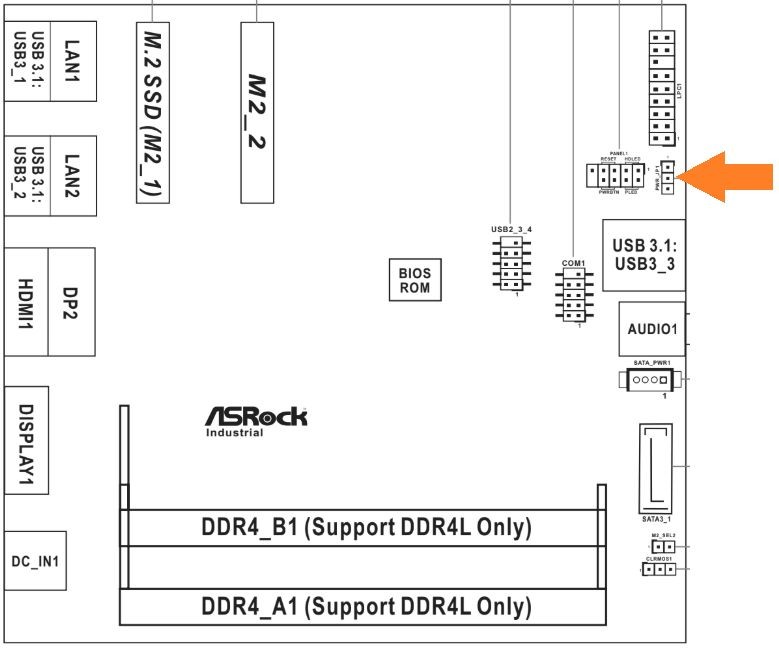

● Locate the PWR_JP1 jumper ● Move it over by 1 pin ● Auto power on is now enabled

Clear CMOS

Note: This procedure requires opening the case first. See Internal Access section above.

• Disconnect the unit from all wire connections (power, USB, ethernet, etc.)

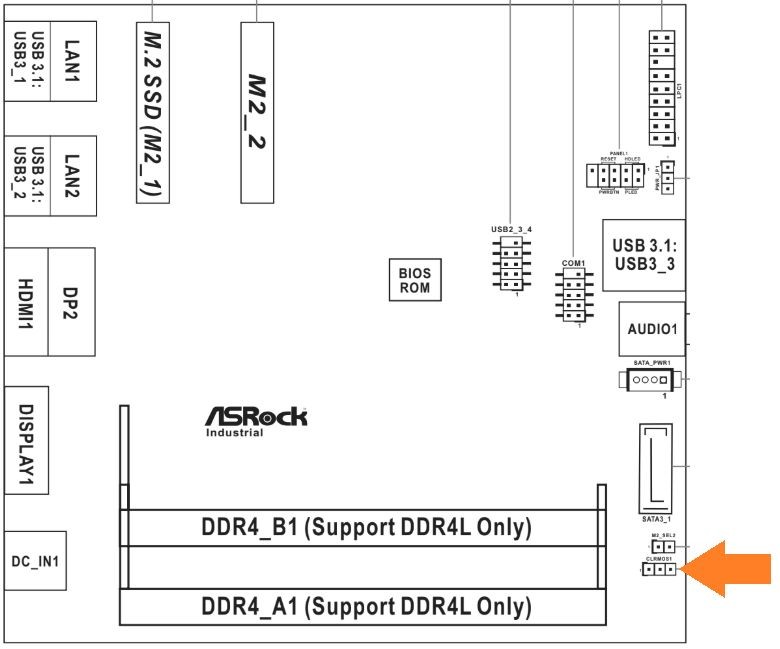

• Locate the CLRMOS1 jumper

• Move the jumper over by 1 pin

• Wait 30 seconds

• Restore the jumper to its original position

• Close up and power on the system. It may power cycle several times before it begins working again.

---

Regulatory

47KB

FCC and ISED Declaration.pdf

PDF

Open

149KB

UKCA Declaration.pdf

PDF

Open

89KB

ETL Authorization to Mark.pdf

PDF

Open

55KB

Safety Information.pdf

PDF

Open

89KB

CE EMC, Safety, RoHS 3.0 DoC.pdf

PDF

Open

Security Advisory

For the latest security advisories concerning OnLogic products, including vulnerability disclosures and necessary updates, please refer to our official Security Advisories page. It is recommended to regularly check this resource for critical security information. Access Security Advisories
