# ML100G-54

## <mark style="color:blue;">1- Product Overview</mark>

### <mark style="color:blue;">1.1- Introduction</mark>

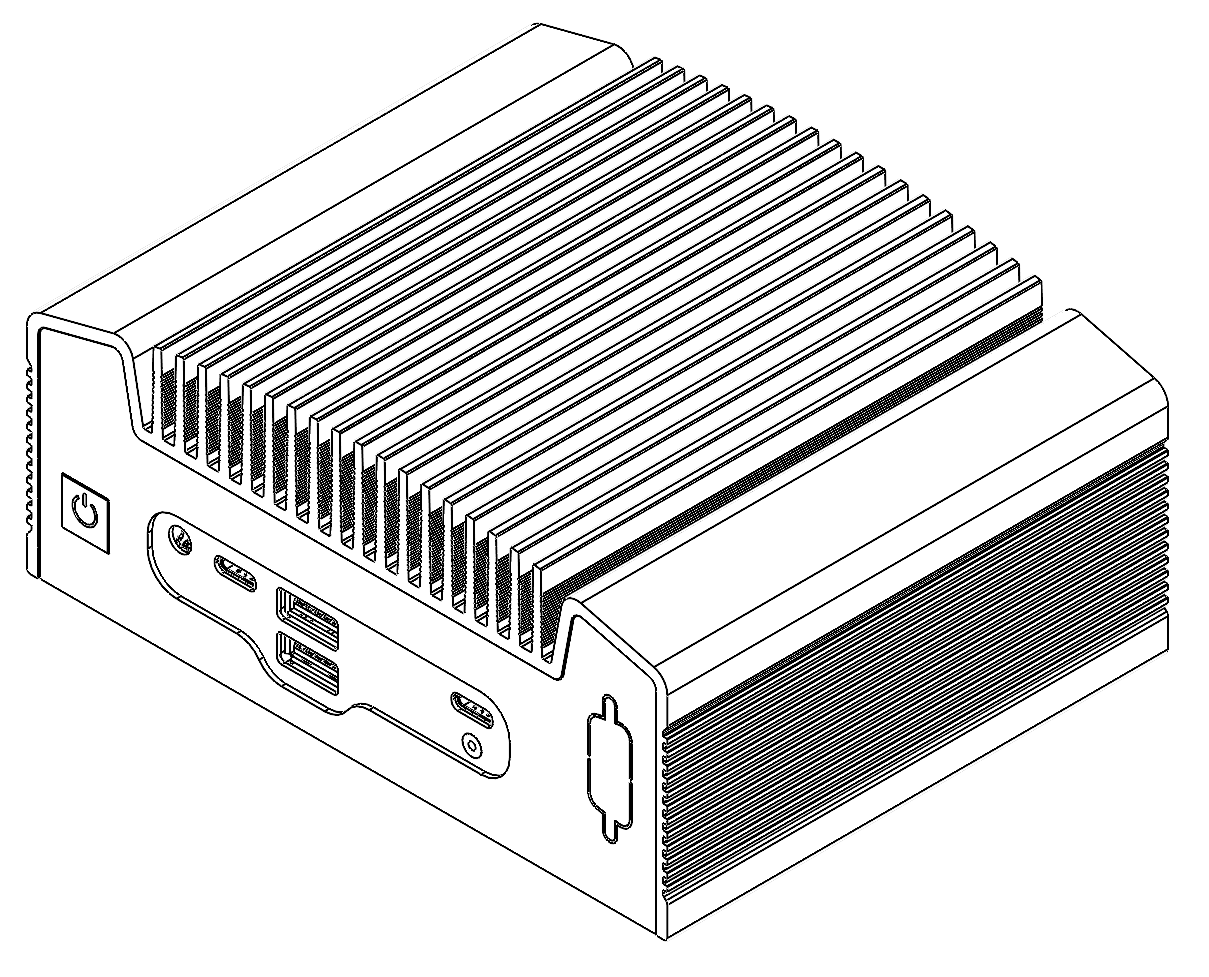

The ML100G-54 expands on the ML100G product range, harnessing the enhanced power and capabilities of the Intel® Alder Lake-N N97 processor in a low profile fanless system built for the challenges of the IoT edge. With a 0 to 50°C temperature range, and a wealth of configuration options, the ML100G-54 was engineered with versatility in mind.

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-a11c9cdb7a3a0aa0200251cdfc7061312671b5a9%2Fea1a28bd0565a62e81eb63c10cbdaf84adf7e5edfbe8e88a053db2873a734f7e.png?alt=media" alt=""><figcaption></figcaption></figure>

### <mark style="color:blue;">1.2- Safety</mark>

<details>

<summary><mark style="color:blue;"><strong>Safe Use and Installation Instructions</strong></mark></summary>

<mark style="color:red;">Do not open and modify the device! The device complies with various national and international Safety, EMC and Environmental requirements per various standards.</mark>

<mark style="color:red;">Modification of the device may void certifications, warranty and/or cause possible injury to the user.</mark>

1. Care must be taken handling the device to prevent injury to self or possibility of damaging the unit.
2. Read the entire manual before using the product.
3. Install the device securely per users manual instructions.
4. To protect against excessive RF exposure, maintain at least 20cm from any user and the RF antennas. Only use provided dual band antennas of 2dBi/2dBi gain.
5. Wall or ceiling mounting device requires use of OnLogic mounting plate or bracket.
6. Use M3x0.5mm Flat Head screws to attach mounting plate or mounting brackets to threaded holes on bottom or rear of chassis. Screws should be a minimum length of 4mm. Add 1mm of screw length for every mm of additional thickness of plate or bracket beyond 1.5mm.
7. ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXcUXZEitq8naX7909T6UJkYM90u5-IlkSjl76A8u4HXcRh_3YaETRftml5tmwFdCl39cQgfP-2EQzu4f_c1a57PgXbMcTjVwVxlJYH4oEtEsXRu9RJCawTCCyQcKI5Z1xYgx_oPqbwQ3ZfXP7bntNZnvO4?key=YwjLO9kt9DLOcb9dJQLf1g)<mark style="color:red;">**Caution, Hot Surface!**</mark> <mark style="color:red;">It is normal for the unit to heat up and be hot to touch. Do not touch the heatsink area or enclosure during operation and 30 minutes after shutdown allowing the unit to cool down.</mark>
8. Ambient operating temperature must be between 0 °C to 50 °C with a non-condensing relative humidity of 10-85%.
9. The device can be stored at temperatures between -10 °C to 85 °C. Note: Unit must be stabilized within operating temperature before use, minimum 3HR.
10. Keep the device away from liquids and flammable materials. Not to be installed in a hazardous environment.
11. Do not clean the device with liquids. The chassis can be cleaned with a dry cloth or duster only. To prevent injury to self and/or damage to the device the unit must be powered down and all connecting power and other peripherals shall be disconnected prior to cleaning.
12. Allow adequate space around all sides of the device for proper cooling and to not exceed its maximum operating temperature limit. If the device is mounted to a vertical surface then recommended device orientation is such that heatsink fins allow air to rise unobstructed. Alternative orientations may result in reduced operational temperature range.
13. This device is intended for indoor operation only.
14. ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXd0ukQMOL4y-pmbwXrxAv3cdzrl45lTl2zkZg5w5IjDaF8b_oSFTmtiy1oCm-dvbCC6Y-j3LnTHrbsWL5uITxpx3F-hSV7Csirc9xhYQKTF3er4LJKparDVQ05vnHiOhm12lz6-yxDFjETlvV-Xj4Ro6ef3?key=YwjLO9kt9DLOcb9dJQLf1g)<mark style="color:red;">**Caution, Risk of Electric Shock!**</mark> Unit is powered by low voltage DC (Direct Current) only! Do not connect AC (Alternating Current) into the device!
15. To power the device use only UL ITE Listed external power supplies with DC output of 12-24VDC, see specs for details.
16. Wiring methods used for the connection of the equipment to the mains supply shall be in accordance with the National Electrical Code, NFPA 70, and the Canadian Electrical Code, Part I, CSA C22.1.
17. Allow ample space for terminal block wiring connections such that the wires do not bend and are protected from accidental damage.
18. Install the device only with shielded network cables.
19. The installer should be experienced in aftermarket installation and familiar with general practices for installing electronics.
20. Radio device is not intended for emergency service use.
21. Service and repair of the device must be done by qualified service personnel. This includes, but is not limited to, replacement of the CMOS battery. Replacement CMOS battery must be of the same type as the original.
22. Proper disposal of CMOS battery must comply with local governance.
23. Product must only be connected to a certified router, switch or similar network equipment
24. Product is intended for indoor use only.
25. Product cannot be connected to the public network.
26. This equipment is not suitable for use in locations where children are likely to be present.

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdJbQ_rkK6Bu3WIfTMBJ0isLBwQGvQn46yBD_RoXFduxx4D2JlvsmxdGr-KwW5WKY-WlRze5hRGPo2dON24NtaeTrj_J2GjLJfOGW-8QkQRuAbyePqoLPqRLK48OHxC4yG2KKRDLRYMlYiicGmmWTB-WaQ?key=YwjLO9kt9DLOcb9dJQLf1g)**WARNING:** There is danger of explosion if the CMOS battery is replaced incorrectly. Disposal of battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an explosion.

</details>

<details>

<summary><mark style="color:blue;">Précautions et guide d’installation</mark></summary>

<mark style="color:red;">Ne pas ouvrir et modifier l'appareil ! L'appareil est conforme à diverses exigences nationales et internationales en matière de sécurité, de CEM et d'environnement selon diverses normes.</mark>

<mark style="color:red;">La modification de l'appareil peut annuler les certifications, la garantie et/ou causer des blessures à l'utilisateur.</mark>

1. Des précautions doivent être prises lors de la manipulation de l'appareil pour éviter de se blesser ou d'endommager l'appareil.
2. Lisez l'intégralité du manuel avant d'utiliser le produit.
3. Installez l'appareil en toute sécurité selon les instructions du manuel de l'utilisateur.
4. Pour vous protéger contre une exposition RF excessive, maintenez au moins 20 cm de tout utilisateur et des antennes RF. Utilisez uniquement les antennes double bande fournies avec un gain de 2 dBi/2 dBi.
5. Le dispositif de montage mural ou au plafond nécessite l'utilisation d'une plaque ou d'un support de montage. La plaque ou le support doit être en métal et avoir une épaisseur minimale de 1 mm.
6. Utilisez des vis à tête plate M4x0,5 mm pour fixer la plaque de montage ou les supports de montage aux trous filetés au bas ou à l'arrière du châssis. Les vis doivent avoir une longueur minimale de 4 mm. Ajoutez 1 mm de longueur de vis pour chaque mm d'épaisseur supplémentaire de plaque ou de support au-delà de 1,5 mm.
7. ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXcUXZEitq8naX7909T6UJkYM90u5-IlkSjl76A8u4HXcRh_3YaETRftml5tmwFdCl39cQgfP-2EQzu4f_c1a57PgXbMcTjVwVxlJYH4oEtEsXRu9RJCawTCCyQcKI5Z1xYgx_oPqbwQ3ZfXP7bntNZnvO4?key=YwjLO9kt9DLOcb9dJQLf1g)<mark style="color:red;">**Attention surface chaude!**</mark> <mark style="color:red;">Il est normal que l'appareil chauffe et soit chaud au toucher. Ne touchez pas la zone du dissipateur thermique ou le boîtier pendant le fonctionnement et 30 minutes après l'arrêt pour permettre à l'unité de refroidir.</mark>
8. La température ambiante de fonctionnement doit être comprise entre 0 °C et 50 °C avec une humidité relative sans condensation de 10 à 85 %.
9. L'appareil peut être stocké à des températures comprises entre -10 °C et 85 °C. Remarque : L'unité doit être stabilisée à la température de fonctionnement avant utilisation, minimum 3 heures.
10. Gardez l'appareil à l'écart des liquides et des matériaux inflammables. Ne pas installer dans un environnement dangereux.
11. Ne nettoyez pas l'appareil avec des liquides. Le châssis peut être nettoyé uniquement avec un chiffon sec ou un plumeau. Pour éviter de se blesser et/ou d'endommager l'appareil, l'appareil doit être éteint et toutes les alimentations et autres périphériques doivent être déconnectés avant le nettoyage.
12. Prévoyez un espace suffisant autour de tous les côtés de l'appareil pour un refroidissement correct et pour ne pas dépasser sa limite de température de fonctionnement maximale. Si l'appareil est monté sur une surface verticale, l'orientation recommandée de l'appareil est telle que les ailettes du dissipateur thermique permettent à l'air de monter sans obstruction. Des orientations alternatives peuvent entraîner une plage de températures de fonctionnement réduite.
13. Cet appareil est destiné à une utilisation en intérieur uniquement.
14. ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXd0ukQMOL4y-pmbwXrxAv3cdzrl45lTl2zkZg5w5IjDaF8b_oSFTmtiy1oCm-dvbCC6Y-j3LnTHrbsWL5uITxpx3F-hSV7Csirc9xhYQKTF3er4LJKparDVQ05vnHiOhm12lz6-yxDFjETlvV-Xj4Ro6ef3?key=YwjLO9kt9DLOcb9dJQLf1g)<mark style="color:red;">**Attention, risque de choc électrique !**</mark> L'unité est alimentée uniquement par une basse tension CC (courant continu) ! Ne connectez pas le courant alternatif (courant alternatif) à l'appareil !
15. Pour alimenter l'appareil, utilisez uniquement des alimentations externes répertoriées UL ITE avec une sortie CC de 12-24 VCC, voir les spécifications pour plus de détails.
16. Les méthodes de câblage utilisées pour le raccordement de l'équipement à l'alimentation secteur doivent être conformes au Code national de l'électricité, NFPA 70, et au Code canadien de l'électricité, Partie I, CSA C22.1.
17. Prévoyez suffisamment d'espace pour les connexions de câblage du bornier afin que les fils ne se plient pas et soient protégés contre les dommages accidentels.
18. Installez l'appareil uniquement avec des câbles réseau blindés.
19. L'installateur doit avoir de l'expérience dans l'installation de pièces de rechange et être familiarisé avec les pratiques générales d'installation de composants électroniques.
20. L'appareil radio n'est pas destiné aux services d'urgence.
21. L'entretien et la réparation de l'appareil doivent être effectués par un personnel qualifié. Cela inclut, mais sans s'y limiter, le remplacement de la batterie CMOS. La batterie CMOS de remplacement doit être du même type que celle d'origine.
22. L'élimination appropriée de la batterie CMOS doit être conforme à la gouvernance locale.
23. Le produit doit uniquement être connecté à un routeur, un commutateur ou un équipement réseau similaire certifié
24. Le produit est destiné à une utilisation en intérieur uniquement.
25. Le produit ne peut pas être connecté au réseau public.
26. Cet équipement n'est pas adapté à une utilisation dans des endroits où des enfants sont susceptibles d'être présents.

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdJbQ_rkK6Bu3WIfTMBJ0isLBwQGvQn46yBD_RoXFduxx4D2JlvsmxdGr-KwW5WKY-WlRze5hRGPo2dON24NtaeTrj_J2GjLJfOGW-8QkQRuAbyePqoLPqRLK48OHxC4yG2KKRDLRYMlYiicGmmWTB-WaQ?key=YwjLO9kt9DLOcb9dJQLf1g)**ATTENTION:** Il existe un risque d'explosion si la pile CMOS n'est pas remplacée correctement. L'élimination de la batterie dans le feu ou dans un four chaud, ou l'écrasement ou le découpage mécanique d'une batterie peut entraîner une explosion.

</details>

### <mark style="color:blue;">1.3- Box Contents & Accessories</mark>

If you purchased additional items such as mounting brackets, power supplies, or terminal block connectors, they will be located in the system box or within the outer shipping carton. All drivers and product guides can be found on the corresponding product page.

All drivers and product guides can be found on the corresponding product page. For more information on accessories and additional features, visit the ML100G-54 product page at <https://www.onlogic.com/store/ml100g-54/>.

### <mark style="color:blue;">1.4- Product Specifications</mark>

| Specification                    | Value                                                                                                                                                                                          |
| -------------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Processor**                    | Intel 12th Gen Alder Lake N97 Processor                                                                                                                                                        |
| **Memory**                       | 1x DDR4-3200 SO-DIMM up to 32GB                                                                                                                                                                |
| **Integrated Graphics**          | Intel UHD Graphics                                                                                                                                                                             |
| **Front I/O**                    | <p>2x USB 3.2 Gen 2 (Type-A)</p><p>2x USB 3.2 Gen 2 (Type-C, 5V/3A, DP1.4a) - Supports 1 Locking Connector</p><p>1x Audio Jack (MIC-in, Line-out)</p><p>1x Power Button (w/ LED indicator)</p> |
| **Back I/O**                     | <p>2x HDMI 2.0b</p><p>2x 2.5 GbE LAN</p><p>2x USB3.2 Gen2 (Type-A)</p><p>1x DC Jack (9V\~19V)</p>                                                                                              |
| **Expansion & Storage**          | <p>1x M.2 2230 E-key (Wi-Fi) (PCIe x1 / USB 2.0)</p><p>1x M.2 2242/2260/2280 M-key (PCIe Gen 3 x 1, SATA III)</p>                                                                              |
| **Onboard Headers & Connectors** | <p>1x Battery on a cable</p><p>1x Serial Header (RS 232/422/485)</p><p>2x USB 2.0 (2.00 pitch header)</p>                                                                                      |
| **Special Features**             | <p>Watchdog timer</p><p>RTC</p><p>TPM 2.0 onboard IC</p><p>BIOS option for auto power-on</p>                                                                                                   |
| **Optional Add On Module**       | 4G, COM (RS-232/422/485), DIO (x4/x4)                                                                                                                                                          |
| **Operating Systems**            | <p>Windows 11 Pro 64 Bit</p><p>Windows 10 IoT Enterprise LTSC 2021</p><p>Windows 11 IoT Enterprise LTSC 2024</p><p>Ubuntu 24.04 Desktop / Server</p>                                           |
| **LAN controller**               | 2x Realtek RTL8125BG                                                                                                                                                                           |
| **Power Input**                  | 9V\~19V DC-In Jack                                                                                                                                                                             |

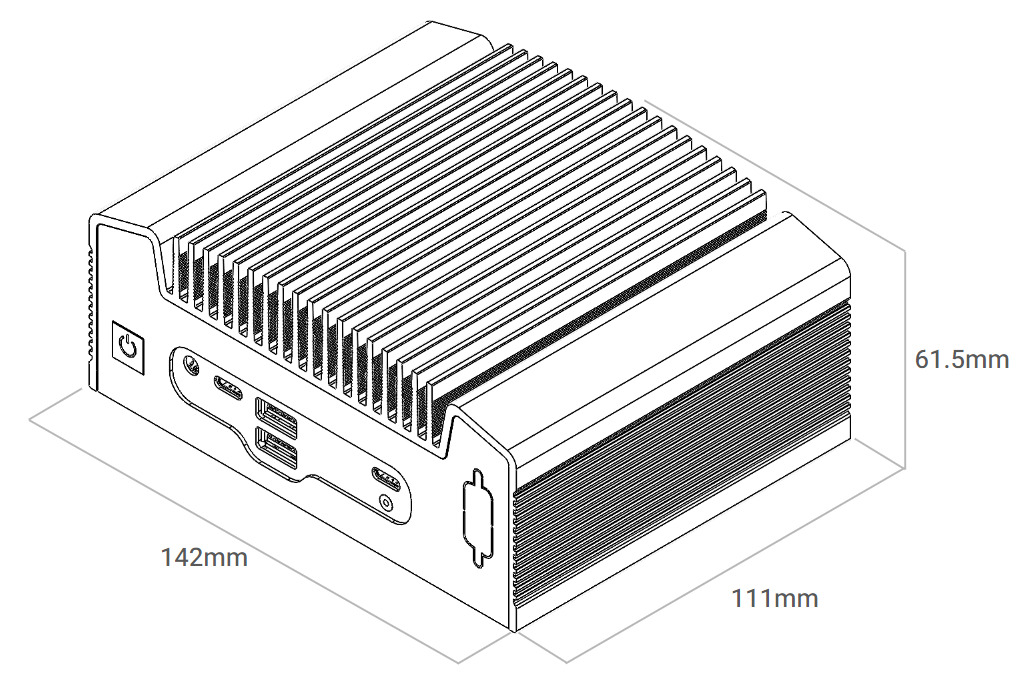

| **Dimensions**                   | 142 x 61.5 x 111 mm                                                                                                                                                                            |
| **Weight**                       | 1.15 kg / 2.5 lbs (System Only)                                                                                                                                                                |
| **Motherboard Dimensions**       | 104 x 36 x 102 mm                                                                                                                                                                              |

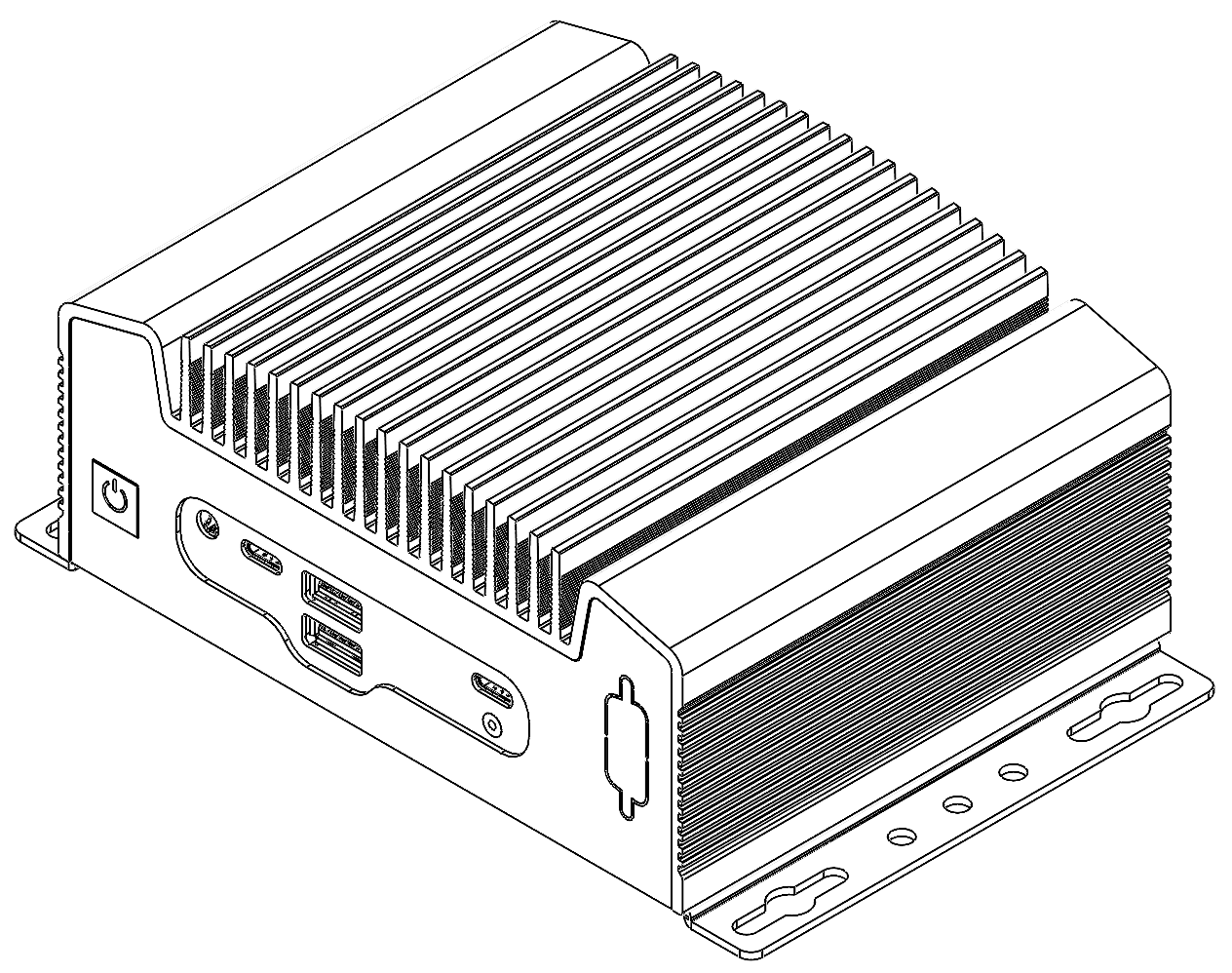

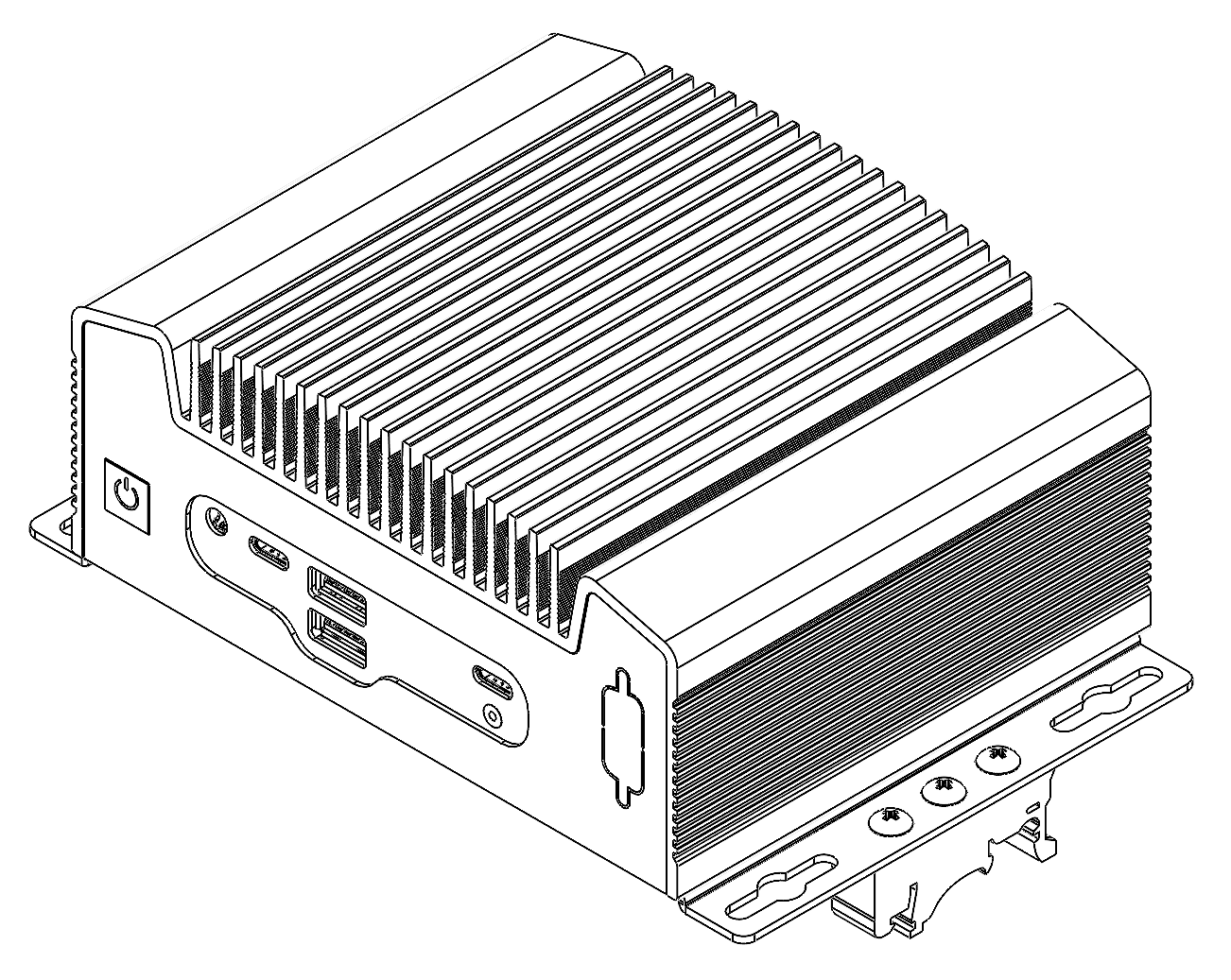

| **Mounting Options**             | <p>DIN</p><p>Wall</p><p>VESA</p>                                                                                                                                                               |
| **Thermal Standards**            | <p>System Operating Temperature: 0-50C</p><p>Storage Temperature: -10-85C</p><p>Operating Humidity: 0% - 90%</p>                                                                               |
| **Extra Chassis Features**       | 4 Antenna holes                                                                                                                                                                                |

**Radio Specifications when equipped with INT-9260 Wifi/BT (device for indoor use)**

| **Frequency Bands**              | 2.4GHz and 5GHz bands                                                                                                                                                             |
| -------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- |
| **Operating Frequency**          | <p>2400 - 2485 MHz</p><p>5150 - 5250 MHz, 5250 - 5350 MHz</p><p>5470 - 5725 MHz, 5725 - 5878 MHz</p>                                                                              |
| **Channel spacing / Bandwidth**  | <p>2.4GHz: 802.11b/g/n; 5 MHz / BT: 1MHz</p><p>Bandwidth: 20 MHz / 40 MHz</p><p>5 GHz: 802.11a/n/ac: 20, 40, 80, 160 MHz</p>                                                      |
| **RF output power**              | <p>20dBm (2400-2485 MHz) IEEE 802.11b/g/n & BT</p><p>10dBm (2400-2485 MHz) BLE</p><p>23dBm (5150-5725 MHz) IEEE 802.11a/n/ac</p><p>13.98 dBm (5725-5875MHz) IEEE 802.11a/n/ac</p> |
| **Type of Modulation**           | <p>2.4GHz: DSSS/OFDM/FHSS</p><p>5 GHz: OFDM</p>                                                                                                                                   |
| **Antenna Specifications**       | ANT200 - PIFA type with 2dBi/2dBi gain on 2.4 & 5 GHz                                                                                                                             |
| **Modes of operation**           | Duplex (Tx/Rx)                                                                                                                                                                    |
| **Duty cycle (access protocol)** | As In: IEEE 802.11 a/b/g/n/ac                                                                                                                                                     |

## <mark style="color:blue;">2- Technical Specifications</mark>

### <mark style="color:blue;">2.1- External Features</mark>

#### <mark style="color:blue;">Front I/O</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FkS4dk5G2BKve0gSPCGHl%2Fimage.png?alt=media&#x26;token=74b54e42-bb8c-4832-b91f-9011de7b14c2" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">Back I/O</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F93D4vVybrtZ7uzAeuVWE%2Fimage.png?alt=media&#x26;token=83d16276-ef7d-438b-be09-0c99e717ce47" alt=""><figcaption></figcaption></figure>

### <mark style="color:blue;">2.2- I/O Definitions</mark>

#### <mark style="color:blue;">Front I/O definition</mark>

#### <mark style="color:blue;">**Power button / Power LED**</mark>

The front power button can be used to turn on and off the ML100G-54 system. The power button is a momentary contact button with a blue LED backlight used to display the status of the system. A solid blue light indicates that the system is powered in the S0 state. A flashing blue light indicates the system is in the sleep state (S3). The LED is off in S4 and deeper states.

#### <mark style="color:blue;">Rear I/O definition</mark>

#### <mark style="color:blue;">**DIO (optional)**</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F2cfzeqFomTgfnpCQiVID%2Fimage.png?alt=media&#x26;token=497ce9cf-f0bb-467a-8c3c-2d5298d1a23c" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">**LAN LED**</mark>

The LAN Ports on ML100G-54 support up to 2.5Gbps link speeds over standard shielded CAT5e or CAT6 cables. The connector is the industry standard RJ45 connector. The LAN link state is shown by the two LEDs enclosed in the port. The description is included below.

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FSoZCiIZt7uH8bc45j9rW%2Fimage.png?alt=media&#x26;token=f34c8e63-3f11-43d2-a1c9-2e7ad5cfbe30" alt=""><figcaption><p>LAN activity light description</p></figcaption></figure>

#### <mark style="color:blue;">**COM DB9 option**</mark>

The serial port supports RS-232, RS-422, and RS-485 configurations.

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FlHdbzjEoX9XrVzrClvqc%2Fimage.png?alt=media&#x26;token=2ec5e75b-df66-42cb-8f71-d40aaa63e2d1" alt=""><figcaption><p>COM DB9 pinout</p></figcaption></figure>

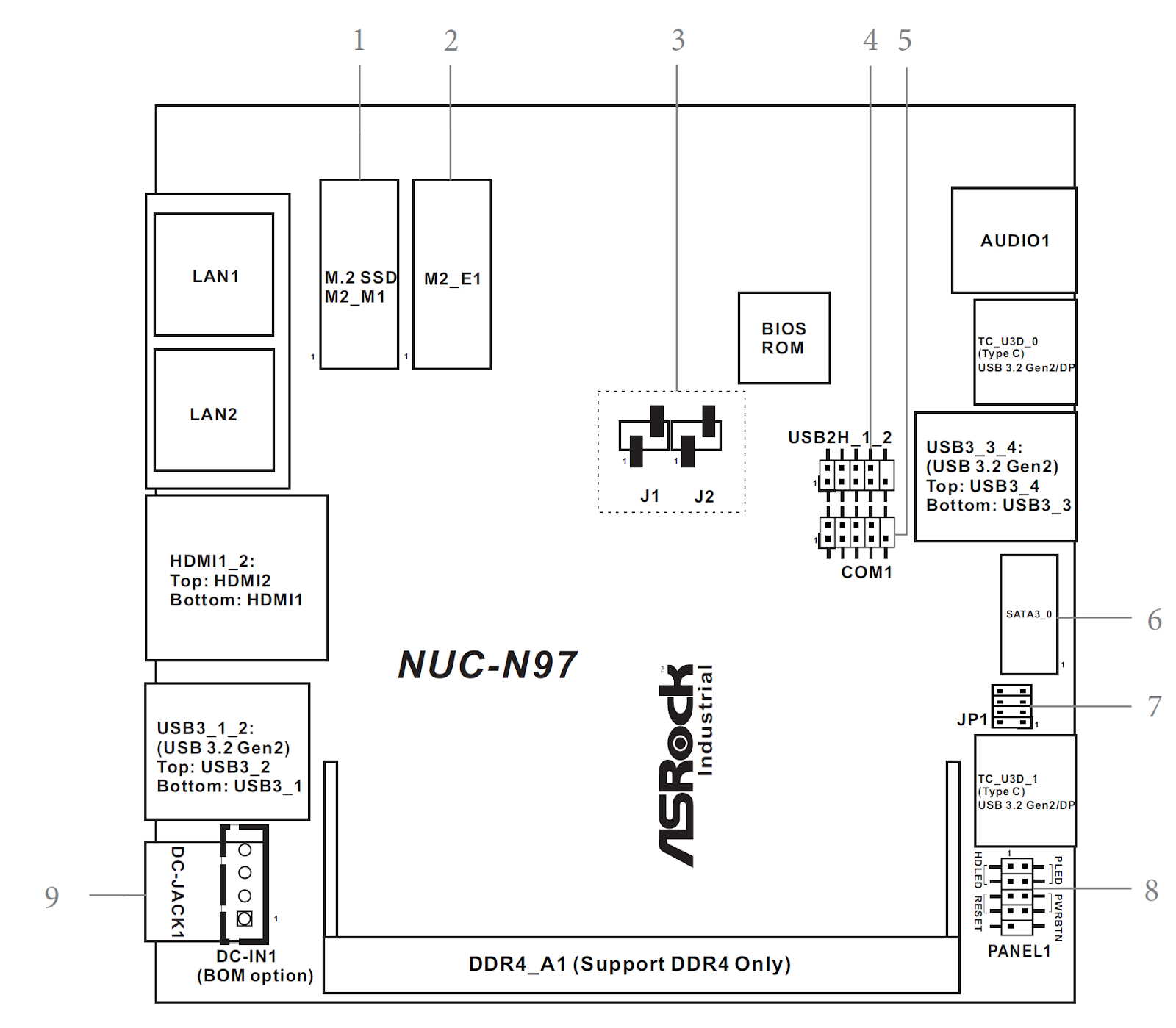

### <mark style="color:blue;">2.3- Motherboard Connectors</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-5b970cb4c6a32be37646345512c6e362cf800099%2F7a76692bf89ff386b05536801d85eab18d58a5887073395ff33348d1628370e5.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FaQ0gyeiRYMsY87fhkDxT%2Fimage.png?alt=media&#x26;token=637dfa25-a773-4f31-8adb-3640a9d514f3" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">**M.2 M-Key**</mark>

An M.2 M-Key port is present on the ML100G-54 motherboard to allow support for M-Key form-factor expansion cards. 2242/2260/2280 form-factors are supported. The M-Key connector includes support for PCIe Gen3 x 1, SATA Gen III (6.0Gbps) devices.

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F4AmC9fbvAEhymRa8wCHL%2Fimage.png?alt=media&#x26;token=c48bb3f8-e164-42cd-b74e-3e772e44c9d1" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">**M.2 E-Key**</mark>

An M.2 E-Key port is present on the ML100G-54 motherboard to allow support for E-Key form-factor wireless expansion cards. Only 2230 form-factor cards are supported. The E-Key connector supports PCIe Gen 3 x1, USB 2.0.

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FavU0h8bfdPutiLA1eeld%2Fimage.png?alt=media&#x26;token=d209f3d7-7033-491f-add9-3c0cd1114e94" alt=""><figcaption></figcaption></figure>

<mark style="color:blue;">**SO-DIMM**</mark>

The ML100G-54 has one onboard DDR4 SO-DIMM slot with the following specifications:

* Maximum Capacity: DDR4-3200 32GB
* Channel configuration: Single Channel
* In-Band ECC Supported

<mark style="color:blue;">**BIOS EEPROM**</mark>

If the BIOS needs to be updated, please refer to the following steps for flashing the EEPROM:

1. Save the BIOS ROM file in a USB thumb drive (FAT32 format).
2. Enter BIOS Setup Utility by pressing F2 or DEL during boot.
3. Navigate to Advanced -> Instant Flash.
4. Choose the ROM file you’d like to update.
5. Follow the instructions on the screen.
6. When the programming is completed, press Enter to reboot the system.

#### <mark style="color:blue;">**USB 2.0 Header**</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FZrHzfSaYsk1vQtIA2RTl%2Fimage.png?alt=media&#x26;token=ea8f1426-71c7-409c-97cd-a13ad346ebeb" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">**COM Port Header (RS-232/422/485)**</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FsoYObI7JfkmFXdsElmRd%2Fimage.png?alt=media&#x26;token=fbcb87fb-dae6-4f2c-908c-6cd7019bcb1f" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">**JP1 Header**</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F02Y0FjAETmXOP3mr5KZA%2Fimage.png?alt=media&#x26;token=a073c7d8-5863-48df-afab-0142868ffeb0" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">**System Panel Header**</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F8UxaDV7S7HHiej5vJXlf%2Fimage.png?alt=media&#x26;token=4eb9932a-3417-4da1-abfe-8b5d876a272d" alt=""><figcaption></figcaption></figure>

### <mark style="color:blue;">2.4- Motherboard Manual</mark>

Access the official Motherboard manual here: [Motherboard Manual](https://www.asrockind.com/en-gb/NUC-N97)

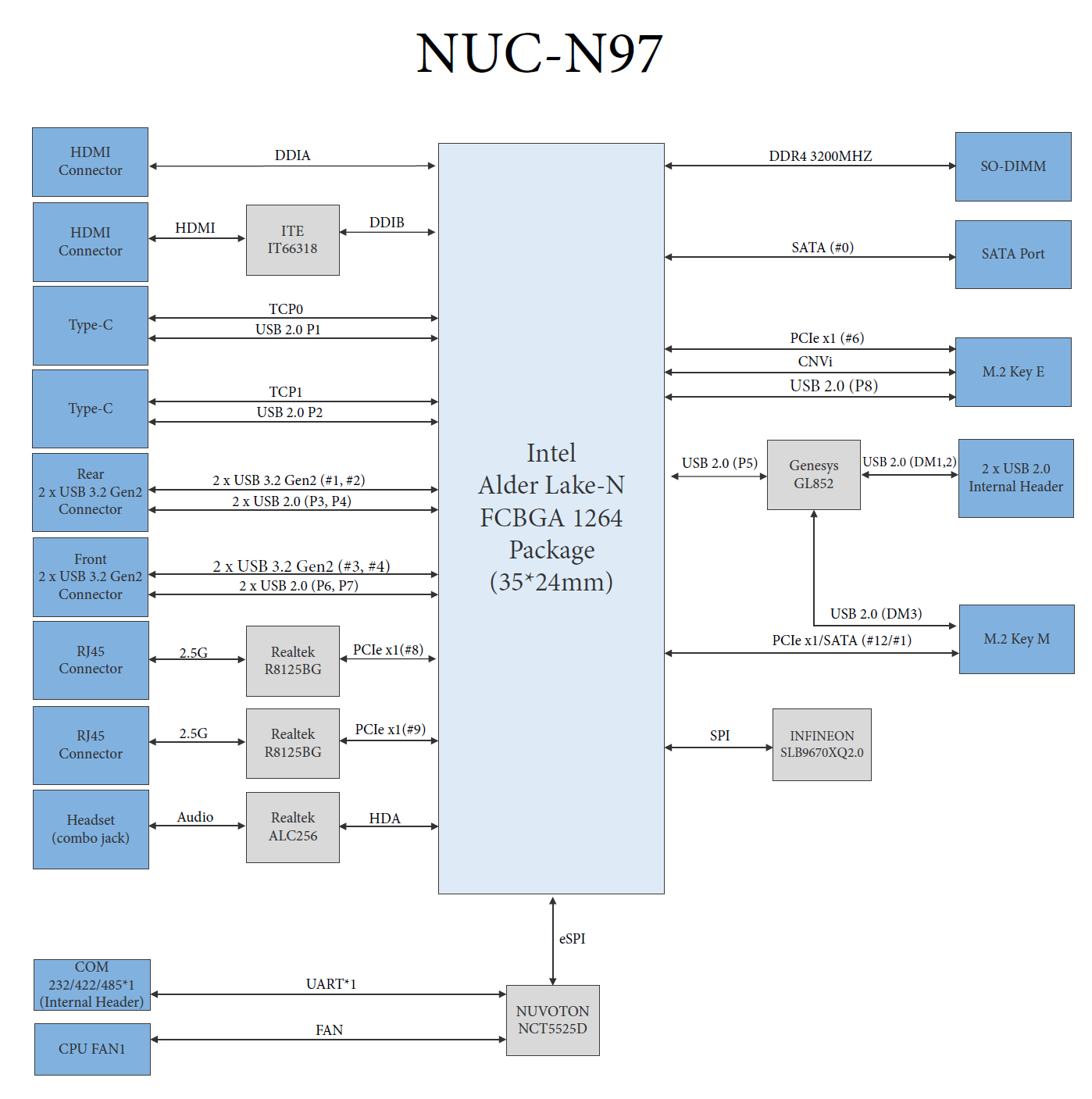

### <mark style="color:blue;">2.5- Processor</mark>

The ML100G-54 utilizes the Intel 12th Gen Alder Lake N97 Processor

### <mark style="color:blue;">2.6- Power Management</mark>

#### <mark style="color:blue;">Wake-Up Events</mark>

The ML100G-54 supports multiple power states. The wake-up events can be configured in the BIOS. This section describes the supported power management functions and gives information on protection circuitry for power adapters.

| Wake-Up Event        | From ACPI State |
| -------------------- | --------------- |
| Power Button         | Deep S5, S5, S3 |
| LAN                  | S5, S3          |
| USB                  | S3              |
| RTC Wake set by BIOS | Deep S5, S5, S3 |
| RTC Wake set by OS   | S3              |

#### <mark style="color:blue;">**Auto Power On**</mark>

The system includes a BIOS option for auto power-on.CommentShare feedback on the editor

1. CommentShare feedback on the editorEnter the system’s BIOS by pressing the DELETE key repeatedly as the system is powering up
2. CommentShare feedback on the editorNavigate to Advanced -> Chipset
3. CommentShare feedback on the editorChange the “Restore on AC/Power Loss” setting to “Power On”

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F0FzLdJb1txIg5QXRQNMc%2Fimage.png?alt=media&#x26;token=6af6d8c5-c123-4990-9560-57ac97e946d6" alt=""><figcaption></figcaption></figure>

### <mark style="color:blue;">2.7- Add-in Modules</mark>

The ML100G-54 supports an optional Isolated Digital I/O add-in card (OnLogic ADP120 DIO). This option allows for interfacing with digital logic applications.  For a complete explanation of features, operating voltages, and safety information, please refer to the DIO expansion manual link below:

[ADP120 DIO](https://support.onlogic.com/product-documentation/components-and-expansion/dio/adp120-adp102-isolated-dio-module)

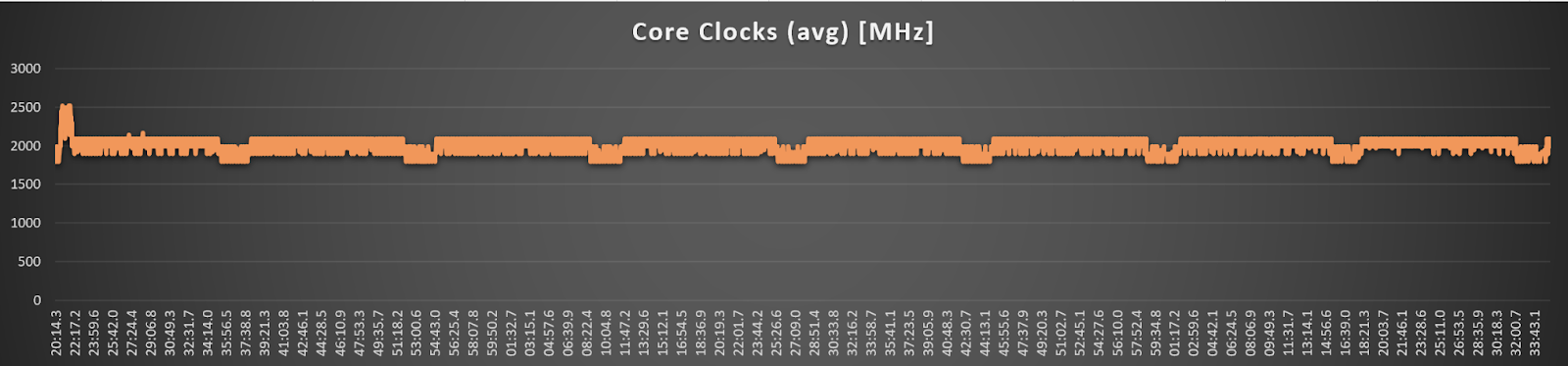

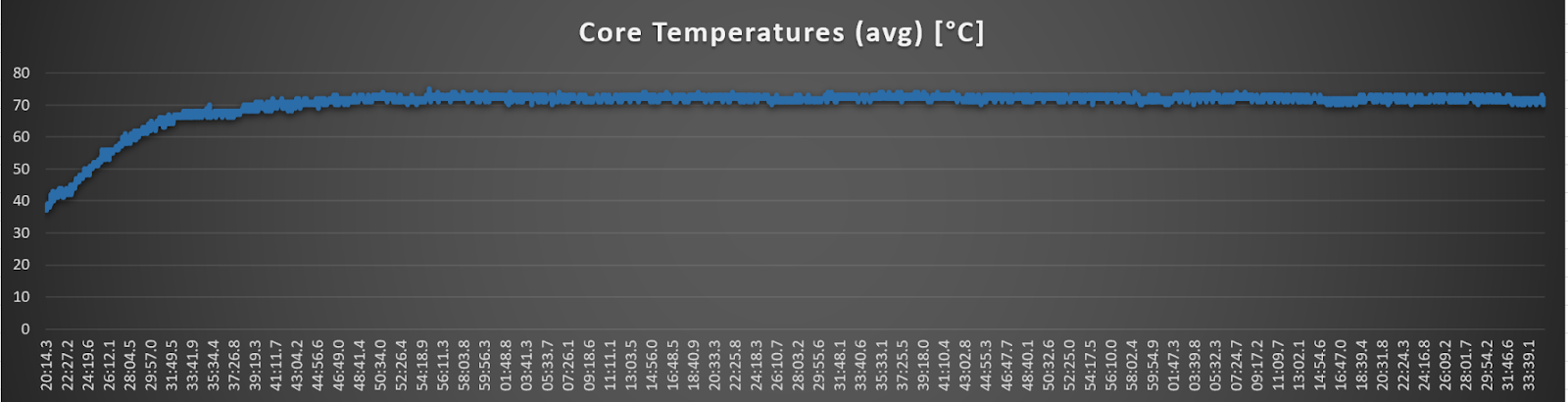

### <mark style="color:blue;">2.8- Thermal Results</mark>

#### <mark style="color:blue;">Test Conditions</mark>

* Temperature: 50 ° C soaking for minimum of 2hrs
* Conditions:
  * DC Load 1 Amps on 1x Back Panel USB port
  * DC Load 1 Amps on 1x Front panel USB port
  * DC Load 1.5 Amps on each of Type-C ports (total 3 Amps)
  * Application: BurnIn Stress 7 test, Furmark, H/W monitoring

#### <mark style="color:blue;">Test Results</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-7be07aa6ee65944baf3bc04e1cdb130d46bf63e3%2F2f58e0d83f4a682029eaee40ac17fca6320f28775791ec41fd01e737c7f83a5a.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-6bf91faa6f84216dc1abe57fc0eb7fd7a90c75e4%2F94b115e35f7545825112697713419585ee8cb36cb52c30fdcd77a00fed1e477c.png?alt=media" alt=""><figcaption></figcaption></figure>

#### <mark style="color:blue;">Test Result Summary</mark>

The ML100G-54 with the Intel Alder Lake N97 processor operated upwards of 80% of its rated base clock speeds on the CPU cores while sustaining significant processor, memory, and storage stress loads in an ambient temperature of 50ºC.

### <mark style="color:blue;">2.9- Block Diagram</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-2b1fe3539b3c09240c177b04d5a1fb85f718a938%2Fe0311a23aff14f6b99ae52b3b78a33a67a32b36bed638b1dc485180339aa0c01.png?alt=media" alt=""><figcaption></figcaption></figure>

## <mark style="color:blue;">3- Installation & Mechanical</mark>

### <mark style="color:blue;">3.1- Dimensions</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-8f40a15acb88014d63e795fe4fccd07cafa9d14e%2F5bb15b92d9cd8810a9f608317a91d351c890cd7f30d2e11a0a5a8905492b4320.png?alt=media" alt=""><figcaption></figcaption></figure>

### <mark style="color:blue;">3.2- Mounting</mark>

The ML100G-54 has optional Wall Mount brackets (SKU: MTW101) and DIN Rail mounting brackets (SKU: MTW101-K) available for purchase. The ML100G-54 has an optional VESA mounting bracket (SKU: MTV100-K) available for purchase. Follow the steps below for mounting.

#### <mark style="color:blue;">Wall Mount</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-6d9e4275dc800fc36695a0e0821e7b67778339fd%2Fa7dfe2a0f51bc9cc97ac3c3662aa6956559b0e2dfa7e06113f437b449a60df08.png?alt=media" alt=""><figcaption></figcaption></figure>

For Wall Mounting, follow these steps:

1. Align the four screw holes on the bottom of the system with the respective holes on the mounting brackets.
2. Attach wall mounting brackets (MTW101) to the system using the supplied M3 screws (M3X0.5 Flathead Screw, 4mm Long).
3. Install system to surface using keyhole slots on wall mount brackets and appropriate hardware for the surface (not provided).

#### <mark style="color:blue;">DIN Rail Mounting</mark>

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-9ab9590f56a553f0fad3ed7980f212ba51cd1147%2F5d763b31cc8ce82269f513259b0d5065cca6a2285958ab2ca814fe45cf02d774.png?alt=media" alt=""><figcaption></figcaption></figure>

For DIN Rail Mounting, follow these steps:

1. Follow steps 1-2 from the Wall Mounting section.
2. Align the mounting holes of the DIN clip bracket to the three mounting holes on the wall mount bracket.
3. Install the DIN clips to the wall mount brackets using supplied screws and a Phillips head screwdriver.
4. Mount system onto the DIN rail.

**Note:** The mounting brackets are required to support 3x the hanging weight of the system (14.82lbs / 6.72 kgs). The mating surface and hardware must be capable of supporting the same load.

#### <mark style="color:blue;">VESA Mounting</mark>

![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXf_D0Jr3zPNagobGOya6EAkC-oBONJliJDkw2hge-oZ6-_J0vUEOzRw0D6g80kwBR9MoQOec5g2AItgSTO328WjeMjO_Bcux45Iel4mRTjkcfPolkaQIHRHSuaTr4lpwO3oWLD-Mq-5ClP8IKUU35t1CQqN?key=YwjLO9kt9DLOcb9dJQLf1g) ![](https://lh7-rt.googleusercontent.com/docsz/AD_4nXdHXJt5yxX4i-J5636uakCBLq44Eemlmj1TB8whR3CRnrSfSK7gCOkpBkR_fC821e9wl8nUh0cSga_i7qWRuAlKQyLHqeju6O3pN-XPGDvBVH_36YsHB2ENkMdo2ow5ejar3rcQmQAvYA01zscTEjVqk9M_?key=YwjLO9kt9DLOcb9dJQLf1g)

1. Align the four screw holes on the bottom of the system with the respective holes on the mounting bracket.
2. Attach VESA Mount Plate to the system using the supplied M3 screws (M3X0.5 Flathead Screw, 4mm Long).
3. Install the system to VESA 75 or VESA 100 mounting pattern using provided VESA Mount screws.

The mounting bracket systems are required to secure 3x the hanging weight of the computer system (14.82lbs / 6.72 kgs). The mating substrate must be capable of maintaining the same rating.

#### <mark style="color:blue;">MK022 Fanless Rackmount Adapter</mark>

Click here for the Fanless Rackmount Adapter Manual: [MK022 Product Manual](https://support.onlogic.com/product-documentation/components-and-expansion/mounting/mk022-fanless-rackmount-adapter)

### <mark style="color:blue;">3.3- Internal Access</mark>

The ML100G can be opened by the user. This does not void the warranty, however, any damage caused by doing so will not be covered.

1. Ensure your body is discharged of any static electricity by touching a grounded metal surface.

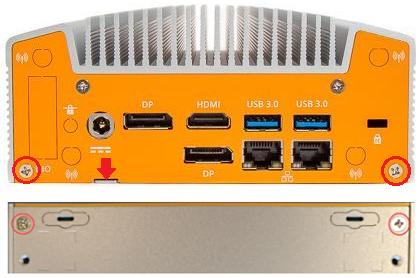

2. Remove the 4x phillips screws on the outside of the case.
3. Use the tab for leverage to pull the bottom panel off

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2Fgit-blob-7eead48f94a09766546ab85cfeb74dc7904e3130%2Fe1d43a1f5d020771b8a57a412a9ca4084987680f035704e979155fee278b7c22.png?alt=media" alt="" height="278" width="420"><figcaption></figcaption></figure>

4. The internals of the unit can now be accessed

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F1ycigkf3jv2QkfRdmxTz%2Fimage.png?alt=media&#x26;token=ed7897a1-3b55-4bfa-b2fc-f91e4c5ecbb1" alt="" width="563"><figcaption></figcaption></figure>

### <mark style="color:blue;">3.4- CAD & Drawings</mark>

[ML100G-54 Dimensional Drawings](https://media.onlogic.com/248f8472-1b41-4a43-9f88-4aee598a9ac5/8a1c78d8-9614-44e2-8b35-3d8a214a8334/eptv8pegJ42xE90yHKspGgiOT/isigJZwprMcrf1UBPGZf5FmnZ.pdf?targetFileName=OnLogic-ML100G-54-Spec-Sheet%20\(2\).pdf)

{% file src="<https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FswIivujLwz2RdoF4RPGf%2FML100G-54%20Simplified.zip?alt=media&token=387d96ce-ca31-4ae6-a0b0-84fcf0711511>" %}

## <mark style="color:blue;">4- Software & Firmware</mark>

### <mark style="color:blue;">4.1- Drivers & Downloads</mark>

Click here for access to Drivers & Downloads: [Drivers](https://drive.google.com/drive/folders/1Cxf-jLpxP0WP7YR3NlwzpxUc2VYYh6C9?usp=drive_link)

### <mark style="color:blue;">4.2 - BIOS</mark>

| BIOS Version | Release Date | Download Link                                                                                              |
| ------------ | ------------ | ---------------------------------------------------------------------------------------------------------- |
| 1.70E        | 03/03/2026   | [Download](https://static.onlogic.com/resources/bios/ML100/ML100G-54/ML100G-54-20260303T190632Z-3-001.zip) |

## <mark style="color:blue;">5- Support & Compliance</mark>

### <mark style="color:blue;">5.1- Troubleshooting & FAQ</mark>

#### <mark style="color:blue;">Clear CMOS</mark>

The JP1 Header can be used to clear the CMOS by setting pins 4-6. The system will auto clear CMOS when booting improperly.

1. Disconnect the unit from all wire connections (power, USB, ethernet, etc.)
2. Locate the JP1 header, located in the red circle in this image:

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FzUzg6ZvZLGxeG5yjlVWM%2Fimage.png?alt=media&#x26;token=e17af72e-e4ae-455f-9ffe-141135ac6e82" alt=""><figcaption></figcaption></figure>

3. Short pins 4 & 6, indicated in the image, with a jumper or the tip of a screwdriver

<figure><img src="https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2FV9UXCHovmPvigq6fGhMz%2Fimage.png?alt=media&#x26;token=547e3010-c71a-42f8-b3fb-8908aafe0be3" alt=""><figcaption></figcaption></figure>

4. Hold in place for 30 seconds
5. Remove the jumper/screwdriver
6. Close up and power on the system. It may power cycle several times before it begins working again.

### <mark style="color:blue;">5.2- Regulatory</mark>

#### <mark style="color:blue;">CE</mark>

The computer system was evaluated for medical, IT equipment, automotive, and maritime EMC standards as a class A device. The computer complies with the relevant IT equipment directives for the CE mark. Modification of the system may void the certifications. Testing includes: EN 55032, EN 55035, IEC 60601-1, EN 62368-1, EN 60950-1, and IEC 60945. Product safety was evaluated to IEC 62368-1 and IEC 60950-1.

#### <mark style="color:blue;">FCC Statement</mark>

This device complies with part 15 of the FCC rules as a Class A device. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

#### <mark style="color:blue;">ISED</mark>

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

**CAN ICES-003(A) / NMB-003(A)**

#### <mark style="color:blue;">UKCA</mark>

The computer system was evaluated for medical, IT equipment, automotive, maritime, and railway EMC standards as a class A device. The computer complies with the relevant IT equipment directives for the UKCA mark.

#### <mark style="color:blue;">Download Documents</mark>

{% file src="<https://3062424488-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FlLHqs7kbNoKOFTwGOfH6%2Fuploads%2F8MUHgqfscvzopDJMvudm%2FML100G-42-54-56_MTBF_Summary.pdf?alt=media&token=5e90b5ec-f3f4-4156-8bc2-c1b16b09f6ae>" %}

### <mark style="color:blue;">5.3- Security Advisory</mark> <a href="#id-5.3-security-advisory" id="id-5.3-security-advisory"></a>

For the latest security advisories concerning OnLogic products, including vulnerability disclosures and necessary updates, please refer to our official Security Advisories page. It is recommended to regularly check this resource for critical security information.\
[**Access Security Advisories**](https://support.onlogic.com/support-articles/security-advisories)

### <mark style="color:blue;">5.4- Appendices</mark>

#### <mark style="color:blue;">Revision History</mark>

| Manual Creation Version 1.0 | 10/23/2024 |
| --------------------------- | ---------- |
|                             |            |
|                             |            |
