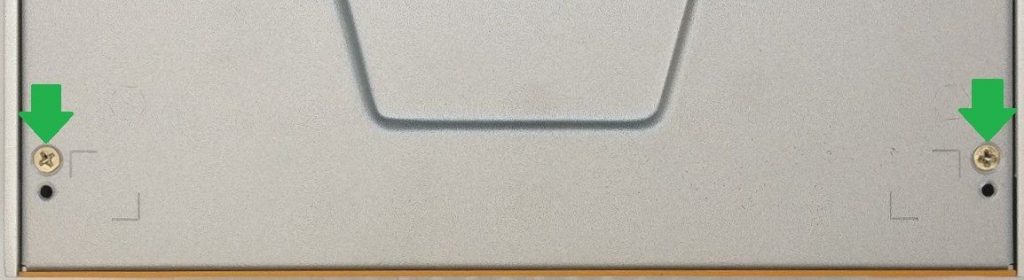

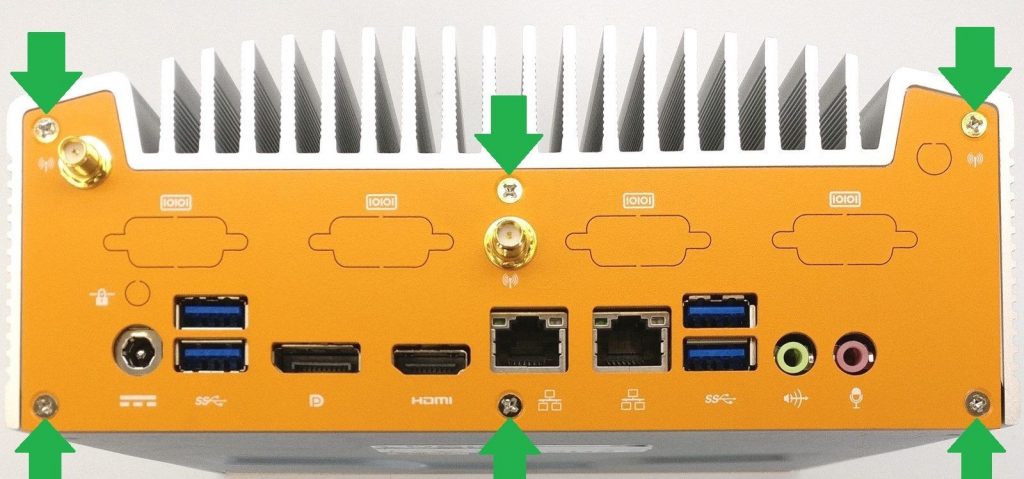

# ML500 Series ## Technical Resources ### Internal Access The ML500 can be opened by the user. This does not void the warranty, however, any damage caused by doing so will not be covered. 1. Ensure your body is discharged of any static electricity by touching a grounded metal surface. 2. Begin by removing the 8x Phillips case screws indicated by the green arrows.

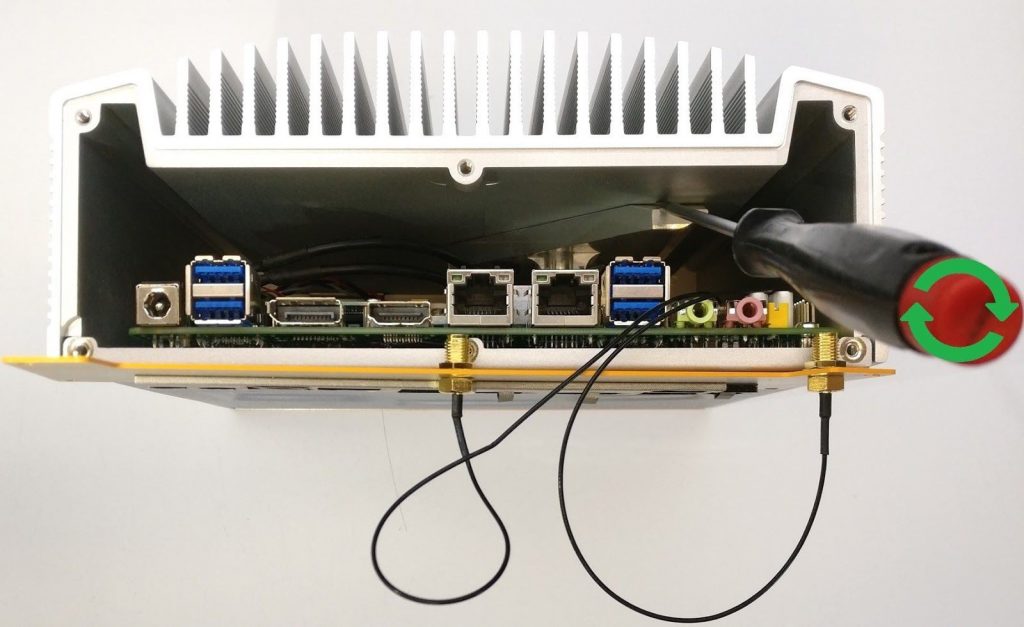

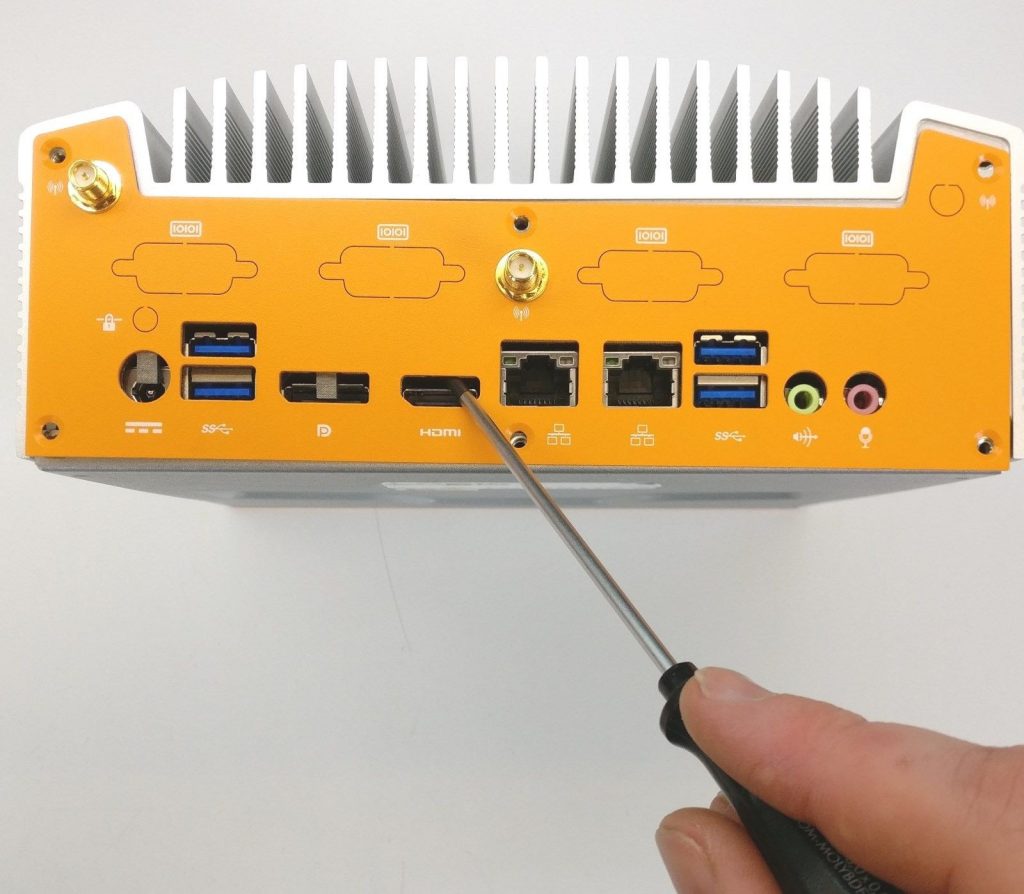

3. Insert a flathead screwdriver into the ridge between the internal heatblock and lid. 4. Rotate the screwdriver to pop them apart. They are held together by thermal paste. Moderate force is required to pop them apart.

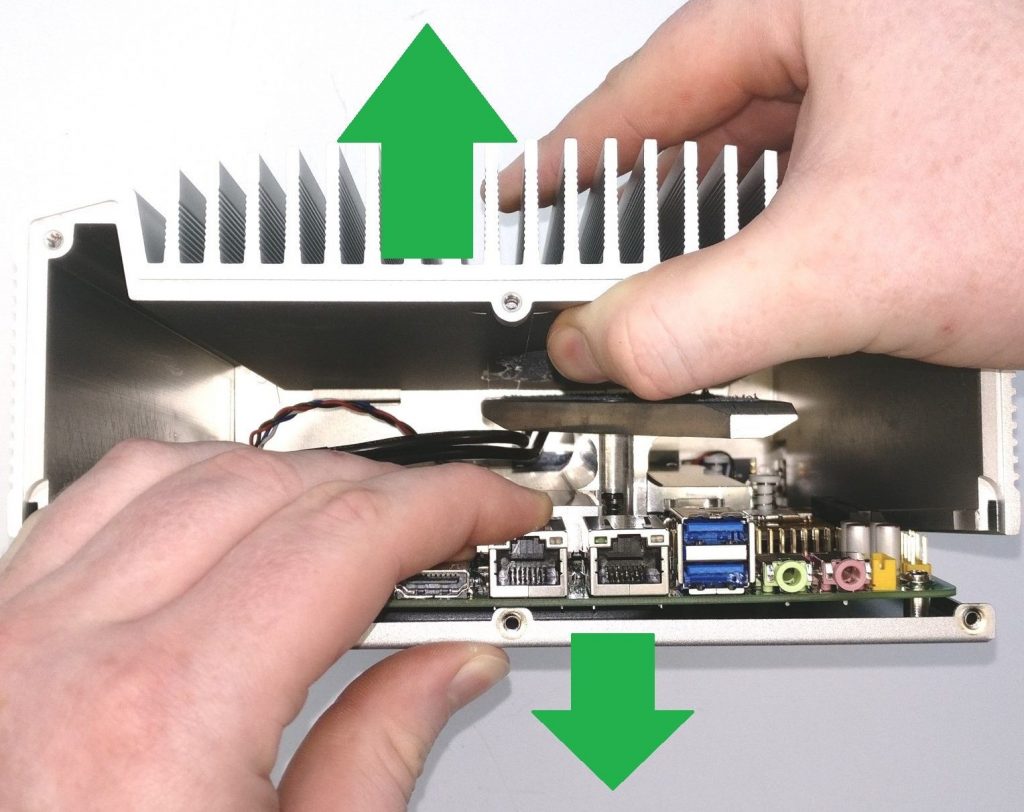

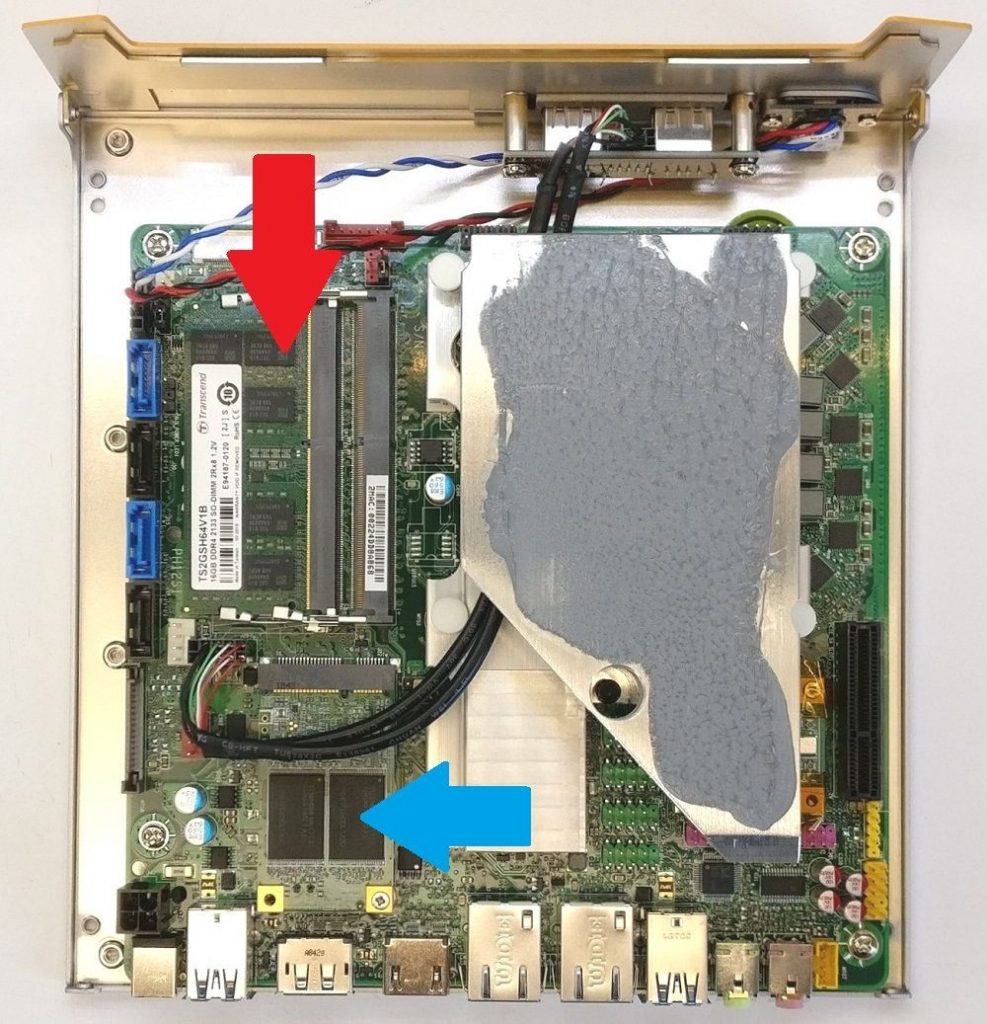

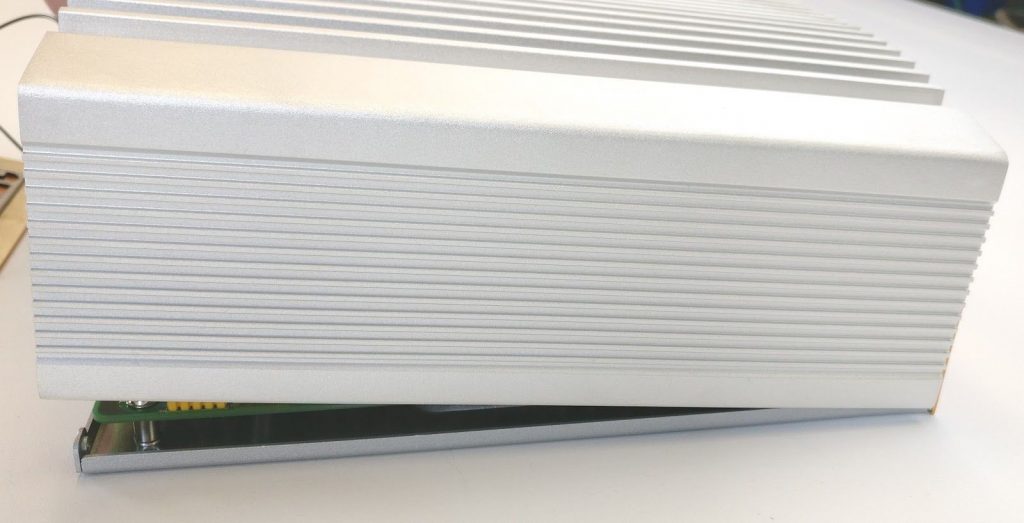

5. The lid can now be removed from the system. Pull the lid and system apart from one another. 6. You now have full access to the components, including the RAM and SSD.

*** #### Reassembly

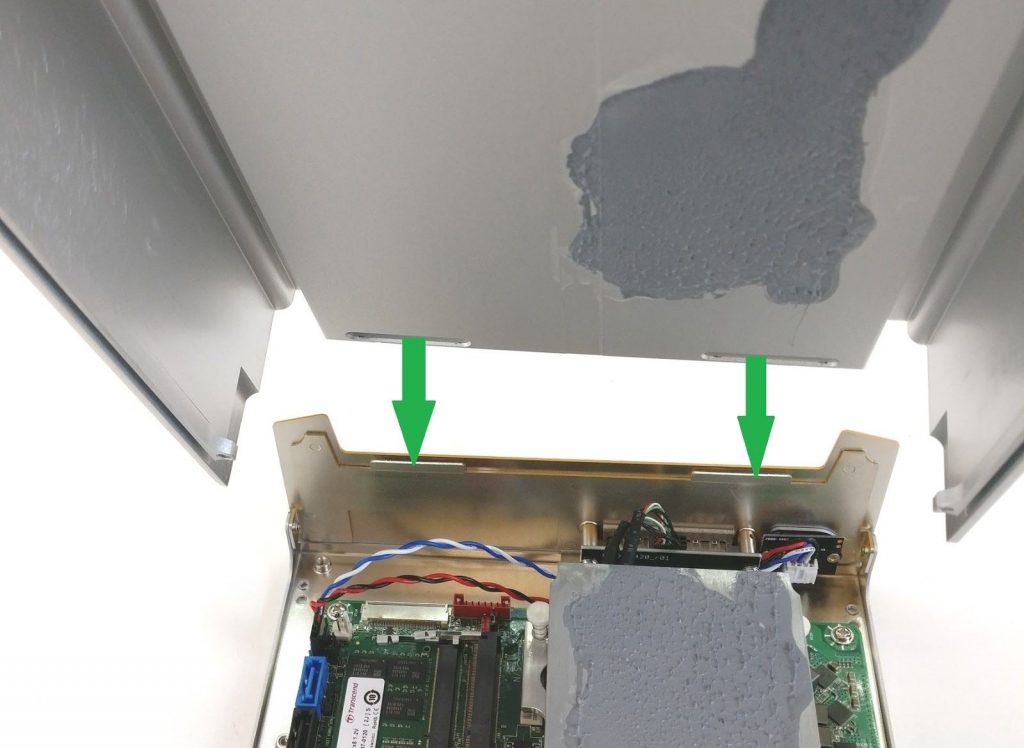

1. Align the indents in the lid with the tabs on the frontplate. 2. Install the lid with a straight, downward motion, making sure the tabs stay aligned.

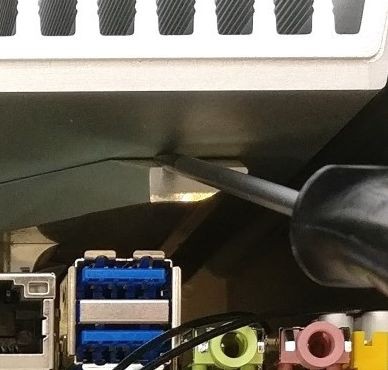

3. Align the backplate with the rear i/o. 4. The silver EMI tabs may block some of the ports. 5. Use a flathead screwdriver to push the tabs above the ports. 6. Reinstall all the Phillips screws and the process is complete.

*** ### VESA Mounting

1. Unpack the VESA mounting plate and remove the bubble wrap. 2. Be sure not to throw away the screw bag inside.

3. You should have everything pictured here.

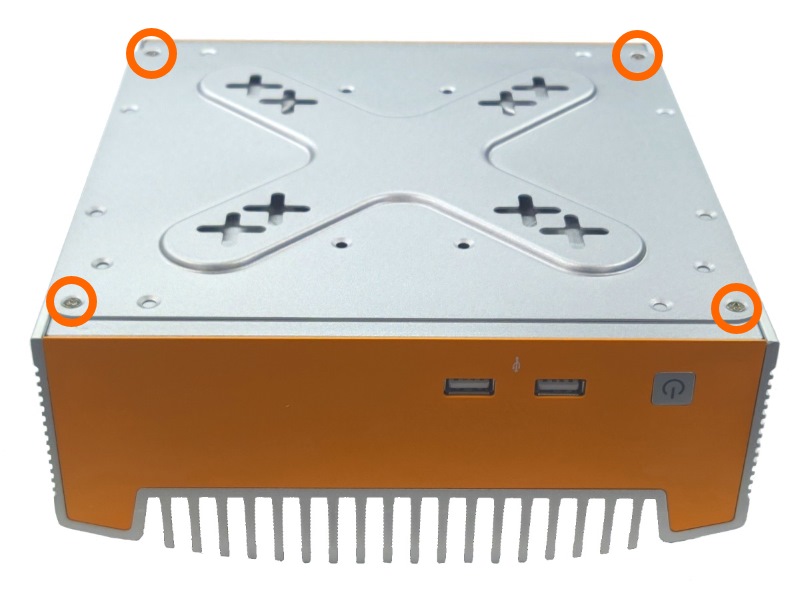

4. Use the smaller of the included screws to attach the mounting plate to the bottom of your system. 5. 4 screw holes should line up. Location will vary depending on model.

6. Locate the VESA screw holes on the back of your monitor or mounting arm.

7. Install the 4 bolts hand tight. 8. Hang the system on the back of the display by lining up the bolts with the holes. 9. Push the bolt head through the center of the + cutouts and slide the system down to lock in place.

* Mounting plate shown without PC for illustration purposes

* Make sure the PC slides downward and all 4 bolts are engaged. *** ## ML500G-30 ### Motherboard #### Manual & Downloads Mitac PH12SI-I motherboard Technical information related to the system's motherboard can be found from the support link below. As of 12/2025, all ML100G-53s will be shipping with either I225s or I226s NICs. This will be true until we run out of stock of the I225 motherboards {% embed url="" %} ### Auto Power On ● Power on the unit and press the Del key to access the BIOS\ ● Navigate to the Chipset tab\ ● Open the PCH-IO Config menu\ ● Change “State After G3” to S0\ ● Save changes and exit\ ● Auto power on is now enabled ### Clear CMOS Disconnect the system from all wire connections (power, ethernet, video, etc), then:

1. Locate the clear CMOS jumper 2. Move the jumper over by 1 pin 3. Wait 30 seconds 4. Restore the jumper to its original position 5. The CMOS is now clear *** ## ML500G-50 ### Motherboard ### Manual & Downloads ASRock IMB-195 motherboard Technical information related to the system's motherboard can be found from the support link below. As of 12/2025, all ML100G-53s will be shipping with either I225s or I226s NICs. This will be true until we run out of stock of the I225 motherboards {% embed url="" %} ### Auto Power On Disconnect the system from all wire connections (power, ethernet, video, etc), then:

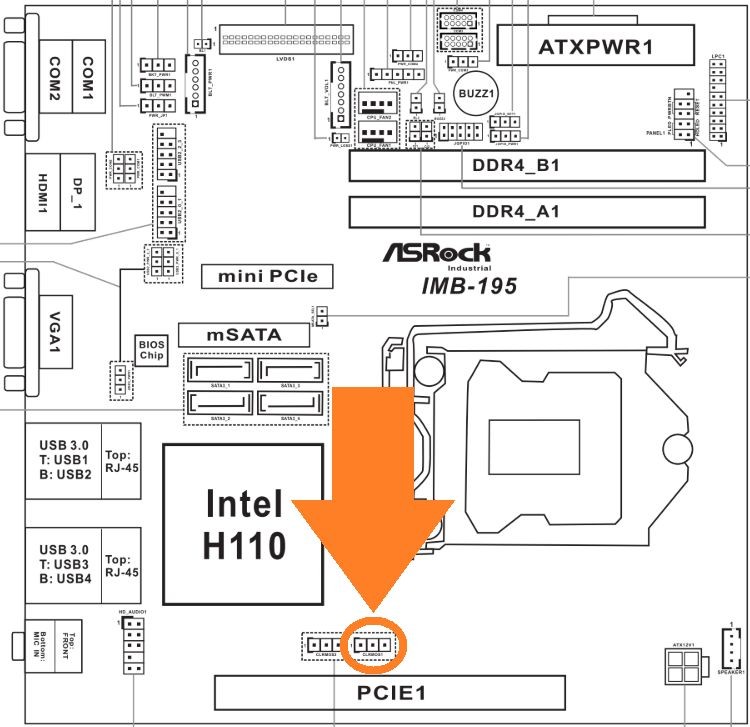

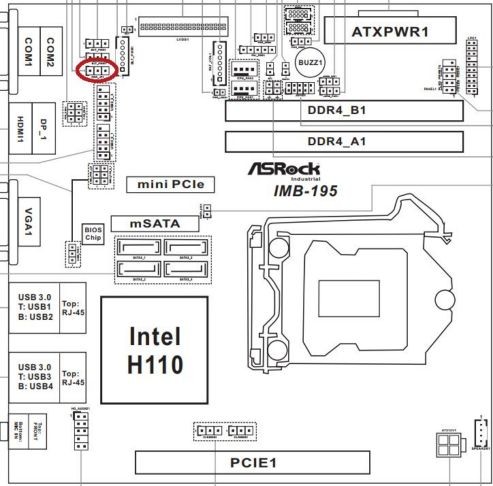

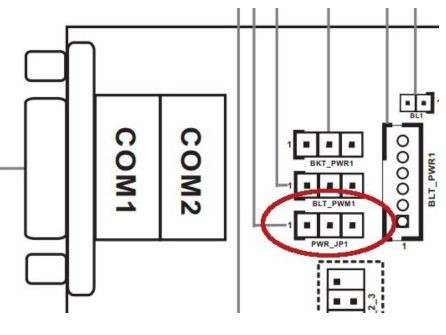

1. Locate the AT/ATX jumper

2. Move the jumper over by 1 pin 3. Auto power on is now enabled ### Clear CMOS

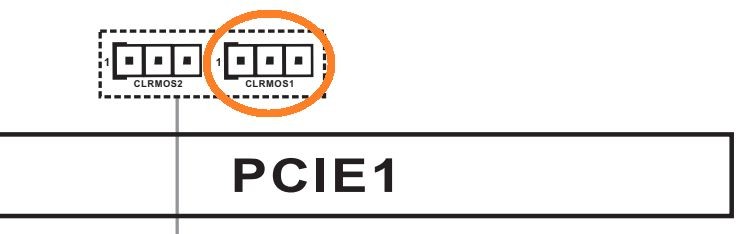

1. Locate the CLRMOS1 jumper

2. Move the jumper over by 1 pin 3. Wait 30 seconds 4. Restore the jumper to its original position 5. The CMOS is now clear. *** ## ML510G-50 ### Motherboard ASRock IMB-1214 motherboard #### Manuals & Downloads Technical information related to the system's motherboard can be found from the support link below. As of 12/2025, all ML100G-53s will be shipping with either I225s or I226s NICs. This will be true until we run out of stock of the I225 motherboards {% embed url="" %} ### Auto Power On

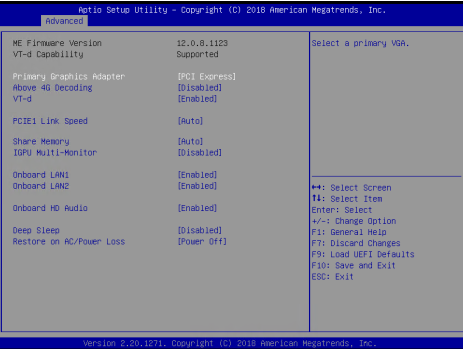

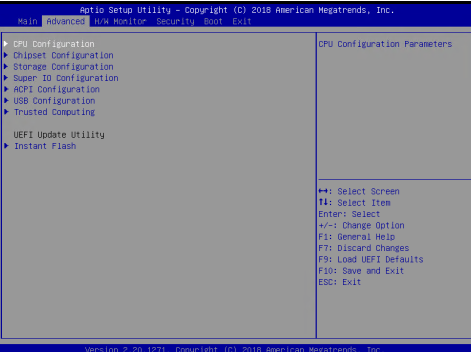

1. Enter he BIOS by repeatedly pressing DEL as the unit is powering up. 2. Once in the BIOS navigate to the Advanced tab as seen to the left. 3. Enter the Chipset Configuration sub-section.

4\. Change the “Restore on AC/Power Loss” option to be power on (Default is Power off) 5\. Exit saving changes ### Clear CMOS

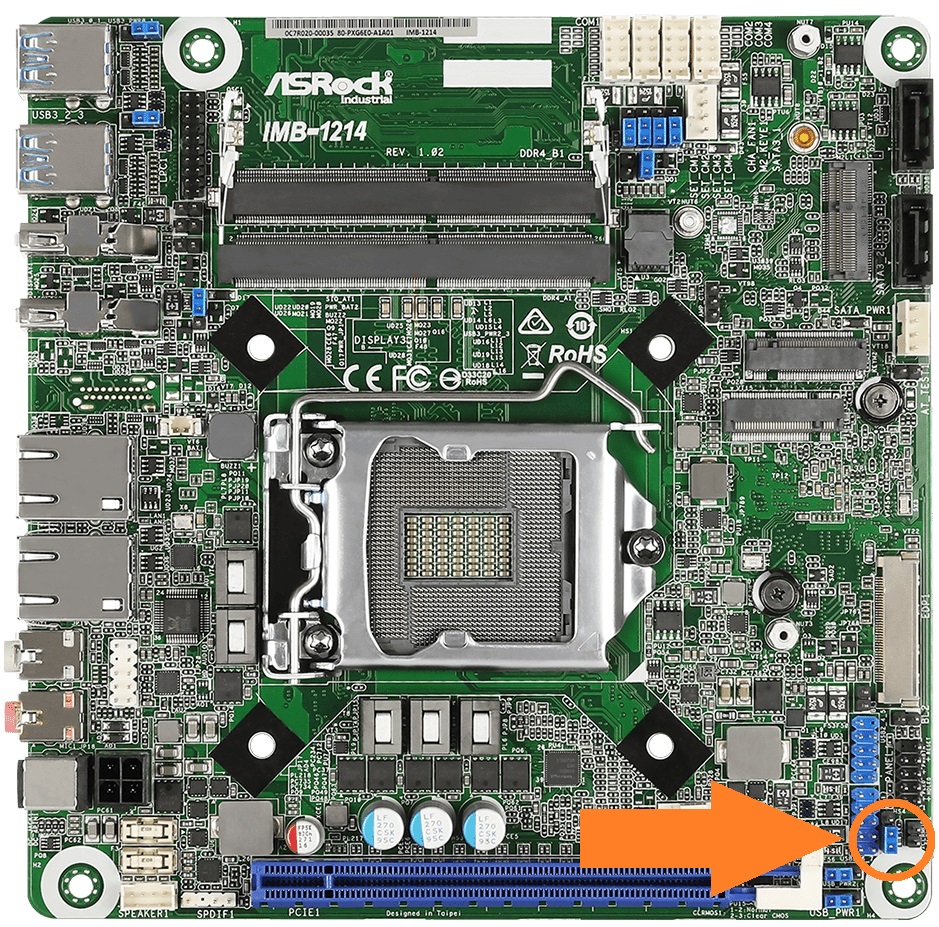

1. Unplug the system completely from power and all peripherals 2. Locate the CLRMOS1 jumper

3. Move the jumper over by 1 pin 4. Wait 30 seconds 5. Restore the jumper to its original position 6. The CMOS is now clear. ## Alternate Motherboards ### Motherboard ASRock IMB-1238 Mini-ITX Motherboard ### Manuals & Downloads Resources for this motherboard can be found on the ASRock product website, linked below {% embed url="" %} ### Auto Power On This motherboard supports enabling the unit to automatically power on when power is applied either via a hardware jumper or a BIOS setting. **Do not enable both hardware and BIOS autopower as this can prevent the system from operating normally.** **Hardware Autopower** 1. Locate the PWR\_BAT1\_SIO\_AT1 jumper on the motherboard 2. Add a jumper to short the pins together 3. This will enable the system to automatically power on when power is applied to the board

**BIOS Autopower** 1. Press DELETE as the system is powering on to enter the BIOS menu 2. Navigate to the Chipset page 3. Set "Restore on AC/Power Loss" to "Power On" 4. This will enable the system to automatically power on when power is applied to the board

### Clear CMOS Disconnect the system from all wire connections (power, ethernet, video, etc), then:

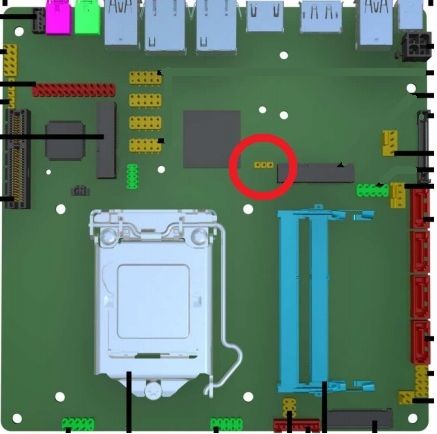

1. Locate the clear CMOS jumper 2. Move the jumper over by 1 pin 3. Wait 30 seconds 4. Restore the jumper to its original position 5. The CMOS is now clear ## Security Advisory For the latest security advisories concerning OnLogic products, including vulnerability disclosures and necessary updates, please refer to our official Security Advisories page. It is recommended to regularly check this resource for critical security information.\ [**Access Security Advisories**](https://support.onlogic.com/support-articles/security-advisories)
