K410 / K430 BIOS Manual
NOTE: To enter the BIOS on Karbon systems, hold the ‘Delete’ key on your keyboard during boot.
1- Front Page
Boot Manager
Type
Menu
BIOS Page
Front Page
Description
Opens the list of detected bootable devices, allowing you to manually select a device to boot, such as an OS or PXE
Device Management
Type
Menu
BIOS Page
Front Page
Description
Opens the Device Manager menu which includes a configuration menu for Intel Rapid Storage Technology and a Network Device List (if RST and Network Stack are enabled)
Boot From File
Type
Menu
BIOS Page
Front Page
Description
Allows you to boot from a UEFI bootable file
Administer Secure Boot
Type
Menu
BIOS Page
Front Page
Description
Opens the Secure Boot configuration menu
Setup Utility
Type
Menu
BIOS Page
Front Page
Description
Opens the primary BIOS configuration menu referenced in sections 2 through 6 of this manual
2- Main Page
InsydeH2O Version
Type
Information
BIOS Page
Main Page
Description
Displays current system BIOS version
Build Date
Type
Information
BIOS Page
Main Page
Description
Displays the BIOS build date in MM/DD/YYYY
Processor Type
Type
Information
BIOS Page
Main Page
Description
Displays model number of installed CPU
Total Memory
Type
Information
BIOS Page
Main Page
Description
Displays total capacity of all memory installed in system
Channel A
Type
Information
BIOS Page
Main Page
Description
Displays capacity of memory installed in Channel A
Channel B
Type
Information
BIOS Page
Main Page
Description
Displays capacity of memory installed in Channel B
System Memory Speed
Type
Information
BIOS Page
Main Page
Description
Displays base frequency of installed memory
Language
Type
Information
BIOS Page
Main Page
Description
Selects the current default language used by the BIOS
System Time
Type
Information
BIOS Page
Main Page
Description
Displays the time in HH:MM:SS. Valid range is from 0 to 23, 0 to 59, 0 to 59. Use +/- to increase/decrease
System Date
Type
Information
BIOS Page
Main Page
Description
Displays the date in MM:DD:YYYY. Valid range is from 1 to 12, 1 to 31, 2000 to 2099. Use +/- to increase/decrease
Platform Information
Type
Subsection
BIOS Page
Main Page
Description
Contains detailed information about the system processor, pch, and firmware component versions.
3- Advanced Page
Expert Mode
Type
Configurable Setting
BIOS Page
Advanced
Description
Expose additional BIOS configuration options.
Default Value
Disabled
3.1- Boot Configuration
Numlock
Type
Configurable Setting
BIOS Page
Advanced > Boot Configuration
Description
Sets state of Num Lock key when system is booted
Default Value
Off
Rotate Screen
Type
Configurable Setting
BIOS Page
Advanced > Boot Configuration
Description
Rotate the screen 90 or 270 degrees clockwise
Default Value
Off
3.2- USB Configuration
USB BIOS Support
Type
Configurable Setting
BIOS Page
Advanced > USB Configuration
Description
Set USB BIOS Support as disabled, enabled, or UEFI only
Default Value
Enabled
3.3- Chipset Configuration
Platform Trust Technology
Type
Configurable Setting
BIOS Page
Advanced Page > Chipset Configuration
Description
Enables or Disables Intel Platform Trust Technology
Default Value
Enabled
3.4- ACPI Table/Features Control
FACP - RTC S4 Wakeup
Type
Configurable Setting
BIOS Page
Advanced > ACPI Table/Features Control
Description
Enables or disables the ability to use the RTC to wake from S4
Default Value
Enabled
3.5- SFB Chipset Feature
Wake on USB from S5
Type
Configurable Setting
BIOS Page
Advanced > SFB Chipset Feature
Description
Enable/Disable Wake on USB from S5 state
Default Value
Disabled
Wake on USB Wait Time
Type
Configurable Setting
BIOS Page
Advanced > SFB Chipset Feature
Description
Wait Time for USB re-enumeration during S5 state. Select from 5 - 60 seconds.
Default Value
5
3.6- RC Advanced Menu
ACPI Settings
Enable ACPI Auto Configuration
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Enables or Disables BIOS ACPI Auto Configuration.
Default Value
Disabled
Enable Hibernation
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may not be effective with some OSs.
Default Value
Enabled
PTID Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
PTID Support will be loaded if enabled.
Default Value
Enabled
PECI Access Method
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Set PECI access method as either Direct I/O or ACPI
Default Value
Direct I/O
ACPI S3 Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Enables or Disables ACPI S3 support
Default Value
Enabled
Native PCIE Enabled
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Configure support for native PCIE
Default Value
Enabled
Native ASPM
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Auto: Automatically select between enabling/disabling Native ASPM
Enabled: OS Controlled ASPM
Disabled: BIOS Controlled ASPM
Default Value
Auto
BDAT ACPI Table Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Enables support for the BDAT ACPI table
Default Value
Enabled
Low Power S0 Idle Capability
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Enable ACPI Lower Power S0 Idle Capability (Mutually exclusive with Smart connect). While this is enabled, it also disables the 8254 timer for SLP_S0 support.
Default Value
Disabled
SSDT Table From File
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Generate SSDT table from its file
Default Value
Disabled
PCI Delay Optimization
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
Experimental ACPI additions for FW latency optimization
Default Value
Disabled
MSI Enabled
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > ACPI Settings
Description
When disabled, MSU support is disabled in FADT
Default Value
Enabled
CPU Configuration
CPU Flex Ratio Settings
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > CPU Configuration
Description
CPU flex ratio value. It must fall between the Max Efficiency Ratio (LFM) and the Maximum non-turbo ratio set by hardware (HFM).
Default Value
20
Hardware Prefetcher
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > CPU Configuration
Description
Turn on/off the MLC streamer prefetcher.
Default Value
Enabled
Adjacent Cache Line Prefetch
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > CPU Configuration
Description
Turn on/off prefetching of adjacent cache lines.
Default Value
Enabled
PECI
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > CPU Configuration
Description
Turn on/off PECI.
Default Value
Enabled
CPU - Power Management Control
Boot Performance Mode
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > CPU - Power Management Control
Description
Select the performance state that the BIOS will set starting from the reset vector.
Default Value
Max Non-Turbo Performance
Intel SpeedStep
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > CPU - Power Management Control
Description
Allows more than two frequency ranges to be supported.
Default Value
Enabled
Platform PL1 Enable
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > CPU - Power Management Control
Description
Enable/Disable Platform Power Limit 1 programming. If this option is enabled, it activates the PL1 value to be used by the processor to limit the average power of a given time window.
Default Value
Disabled
Platform PL2 Enable
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > CPU - Power Management Control
Description
Enable/Disable Platform Power Limit 2 programming. If this option is disabled, BIOS will program the default values for Platform Power Limit 2.
Default Value
Disabled
Energy Performance Gain
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > CPU - Power Management Control
Description
Enable/Disable energy performance gain
Default Value
Disabled
Energy Efficient Turbo
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > CPU - Power Management Control
Description
Enable/Disable Energy Efficient Turbo Feature. This feature will opportunistically lower the turbo frequency to increase efficiency. Recommended only to disable in overclocking situations where turbo frequency must remain constant. Otherwise, leave enabled.
Default Value
Enabled
GT - Power Management Control
Maximum GT Frequency
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > GT - Power Management Control
Description
Automatically updated GT max frequency
Default Value
Default Max Frequency
Disable Turbo GT Frequency
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Power & Performance > GT - Power Management Control
Description
Set as ‘Disabled’ to prevent limiting GT frequency
Default Value
Disabled
Intel Time Coordinated Computing
Intel TCC Mode
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Intel(R) Time Coordinated Computing
Description
Enable or Disable Intel(R) TCC mode. When enabled, this will modify system settings to improve real-time performance. The full list of settings and their current state are displayed below when Intel(R) TCC mode is enabled.
Default Value
Disabled
IO Fabric Low Latency
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Intel(R) Time Coordinated Computing
Description
Enable or Disable IO Fabric Low Latency. This will turn off some power management in the PCH IO fabrics. This option provides the most aggressive IO Fabric performance setting. S3 state is NOT supported.
Default Value
Disabled
GT CLOS
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Intel(R) Time Coordinated Computing
Description
Enable or Disable Graphics Technology(GT) Class of Service. Enable will reduce Gfx LLC allocation to minimize impact of Gfx workload on LLC
Default Value
Disabled
Memory Configuration
Max TOLUD
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > Memory Configuration
Description
Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD automatically based on largest MMIO length of installed graphic controller
Default Value
Dynamic
System Agent (SA) Configuration
VT-d
Type
Info
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
If the system supports VT-d capabilities
DMA Control Guarantee
Type
Configurable Setting (Locked)
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
Program the state of the DMA_CONTROL_GUARANTEE bit
Default Value
Disabled
IGD VTD Enable
Type
Configurable Setting (Locked)
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
Enable/Disable IGD VTD
Default Value
Enabled
IOP VTD Enable
Type
Configurable Setting (Locked)
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
Enable/Disable IOP VTD
Default Value
Enabled
Cpu CrashLog
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
Enable or disabled the CPU CrashLog on Device 10
Default Value
Enabled
GNA Device
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
Enable/Disable the SA GNA device
Default Value
Enabled
CRID Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
Enable/Disable SA CRID and TCSS CRID control for Intel SIPP
Default Value
Disabled
Above 4G MMIO BIOS Assignment
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration
Description
Enable/Disable above 4GB MemoryMappedIO BIOS assignment. This is enabled automatically when Aperture Size is set to 2048MB.
Default Value
Disabled
Graphics Configuration
Skip Scanning of External Gfx Card
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
If Enabled, the BIOS will not scan for External Gfx Card on PEG and PCH PCIE Ports
Default Value
Disabled
Internal Graphics
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Force the Internal Graphics enable state. Setting this to disabled without an external graphics card will prevent display output.
Default Value
Auto
GTT Size
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Set the GTT size to 2, 4, or 8 MB
Default Value
8MB
Aperture Size
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Select the Aperture Size. Above 4GB MMIO BIOS assignment is automatically enabled when selecting 2048MB aperture. To use this feature, please disable CSM Support.
Default Value
256MB
PSMI Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Enable/Disable PSMI Support.
Default Value
Disabled
DVMT Pre-Allocated
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the Internal Graphics Device.
Default Value
60M
DVMT Total Gfx Mem
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics Device.
Default Value
256M
DiSM Size
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
DiSM Size for 2LM Sku.
Default Value
0GB
VDD Enable
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Enable/Disable forcing of VDD in the BIOS
Default Value
Enabled
PM Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Enable/Disable PM support
Default Value
Enabled
PAVP Enable
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Enable/Disable PAVP
Default Value
Enabled
Cdynmax Clamping Enable
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Enable/Disable Cdynmax Clamping
Default Value
Disabled
Skip Full CD Clock Init
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > System Agent (SA) Configuration > Graphics Configuration
Description
Enabled: Skip Full CD clock initialization.
Disabled: Initialize the full CD clock if not initialized by Gfx PEIM
Default Value
Disabled
PCH-IO Configuration
EFI Network
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration
Description
Enable/Disable networking functionality for the onboard network interfaces in the UEFI environment.
Default Value
Onboard NIC
WWAN Device Wake GPIO
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration
Description
Enable/Disable using the WWAN device wake gpio pins as potential wake sources.
Default Value
Enabled
Wake on WLAN and BT Enable
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration
Description
Enable/Disable PCI Express Wireless LAN and Bluetooth to wake the system.
Default Value
Disabled
PXE ROM
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration
Description
Enable/Disable PXE Option ROM execution.
Default Value
Enabled
State After G3
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration
Description
Specify what state to go to when power is reapplied after a power failure (G3 state).
Default Value
S5 State (Off)
Enable TCO Timer
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration
Description
Enable/Disable TCO timer. When disabled, it disables PCH ACPI timer, stops TCO timer, and ACPI WDAT table will not be published.
Default Value
Disabled
Enable Timed GPIO0
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration
Description
Enable/Disable Timed GPIO0. When disabled, it disables cross time stamp time-synchronization as extension of Hammock Harbor time synchronization.
Default Value
Disabled
PCI Express Configuration
DMI Link ASPM Control
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > PCI Express Configuration
Description
The control of Active State Power Management of the DMI Link.
Default Value
Auto
Port8xh Decode
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > PCI Express Configuration
Description
PCI Express Port8xh Decode Enable/Disable.
Default Value
Disabled
PCI Express Root Port Configuration
PCI Express Root Port
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO Configuration > PCI Express Configuration > PCI Express Root Port Settings
Description
Enables or disables the selected PCI Express Root Port
Default Value
Enabled
ASPM
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO Configuration > PCI Express Configuration > PCI Express Root Port Settings
Description
Sets the PCI Express Active State Power Management mode
Possible Values
Auto, Disabled, L0s, L1, L0sL1
Default Value
Auto
PCIE Speed
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO Configuration > PCI Express Configuration > PCI Express Root Port Settings
Description
Sets the PCIe Speed of the selected port
Possible Values
Auto, Gen1, Gen2, Gen3
Default Value
Auto
Detect Timeout
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO Configuration > PCI Express Configuration > PCI Express Root Port Settings
Description
Sets the number of milliseconds reference code will wait for the link to exit detect state for enabled ports before assuming there is no device and potentially disabling the port
Default Value
0
SATA Configuration
SATA Controller(s)
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SATA Configuration
Description
Enable/Disable SATA Device.
Default Value
Enabled
SATA Mode Selection
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SATA Configuration
Description
Set the SATA operation mode
Default Value
AHCI
SATA Ports Multiplier
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SATA Configuration
Description
Ports Multiplier Enable/Disable
Default Value
Disabled
SATA Speed
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SATA Configuration
Description
Set the SATA generation to Gen 1, 2, or 3
Default Value
Gen3
Aggressive LPM Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SATA Configuration
Description
Enable PCH to aggressively enter link power state.
Default Value
Enabled
Port X
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SATA Configuration
Description
Enable or disable the given SATA port.
Default Value
Enabled
Hot Plug
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SATA Configuration
Description
Enable or disable SATA hot plug drive detection for the given port.
Default Value
Disabled
USB Configuration
xDCI Support
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
Enable/Disable xDCI (USB OTG Device).
Default Value
Disabled
USB2 PHY Sus Well Power Gating
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
Select 'Enabled' to enable SUS Well PG for USB2 PHY. This option has no effect on PCH-H
Default Value
Enabled
USB3 Link Speed Selection
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
This option is to select USB3 Link Speed GEN1 or GEN2
Default Value
GEN2
USB Overcurrent
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
Enable/disable USB overcurrent detection
Default Value
Enabled
USB Overcurrent Lock
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
Select 'Enabled' if Overcurrent functionality is used. Enabling this will make xHCI controller consume the Overcurrent mapping data
Default Value
Enabled
USB Port Disable Override
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
Selectively Enable/Disable the corresponding USB port from reporting a Device Connection to the controller.
Default Value
Disabled
USB Device/Host Mode Override
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
Selectively Enable/Disable the corresponding USB 2.0 and USB 3.0 port device mode
Default Value
Disabled
USB UCSI ACPI Device
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > USB Configuration
Description
Enable/Disable USB UCSI ACPI device
Default Value
Disabled
Security Configuration
RTC Memory Lock
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > Security Configuration
Description
Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM
Default Value
Enabled
BIOS Lock
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > Security Configuration
Description
Enable/Disable the PCH BIOS Lock Enable feature. Required to be enabled to ensure SMM protection of flash.
Default Value
Enabled
Force Unlock on All GPIO Pads
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > Security Configuration
Description
If enabled BIOS will force all GPIO pads to be in unlocked state
Default Value
Disabled
SerialIo Configuration
Device Controller
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SerialIo Configuration
Description
Enable or disable the PCH controller for the platform’s I2C, SPI, and UART devices.
Default Value
[Enabled/Disabled]
UARTX Hardware Flow Control
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SerialIo Configuration > Serial IO UARTX Settings
Description
Enable or disable the UART hardware flow control signals
Default Value
Enabled
UARTX DMA Enable
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SerialIo Configuration > Serial IO UARTX Settings
Description
Enable or disable the DMA support for the UART interface
Default Value
Enabled
UARTX Power Gating
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > SerialIo Configuration > Serial IO UARTX Settings
Description
Configure option power gating of the UART device in some platform off-states.
Default Value
Auto
PSE Configuration
PSE Controller
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > PSE Configuration
Description
Enable or disable the Programmable Services Engine. Disabling the PSE will disable: CAN, DIO, Power LED, and HPD
Default Value
Enabled
Log Output Channel
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > PSE Configuration
Description
Target device for the PSE log output.
0: Memory
1-6: UART
7: Disabled
Default Value
0
Shell
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > PSE Configuration
Description
Enable or disable the PSE shell features
Default Value
Enabled
Eclite
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > PSE Configuration
Description
Enable or disable the PSE EC-Lite features
Default Value
Disabled
OOB
Type
Configurable Setting
BIOS Page
Advanced > RC Advanced Menu > PCH-IO Configuration > PSE Configuration
Description
Enable or disable the PSE OOB features
Default Value
Enabled
PCH-FW Configuration
ME Firmware Version
Type
Information
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Displays Management Engine firmware version
ME Firmware Mode
Type
Information
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Displays Management Engine firmware mode
ME Firmware SKU
Type
Information
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Displays Management Engine firmware SKU
ME Firmware Status 1
Type
Information
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Displays Management Engine firmware status 1
ME Firmware Status 2
Type
Information
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Displays Management Engine firmware status 2
ME State
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
When Disabled ME will be put into ME Temporarily Disabled Mode. Default value: Enabled
Possible Values
Enabled (Management Engine will act normally)
Disabled (Management Engine will be put into ME Temporarily Disabled Mode)
Default Value
Enabled
Comms Hub Support
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Enables or Disables support for Comms Hub
Default Value
Disabled
JHI Support
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Enables or Disables Intel DAL Host Interface Service (JHI)
Default Value
Disabled
Core BIOS Done Message
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration
Description
Enable or Disable sending Core BIOS Done Message to ME
Default Value
Enabled
HECI Timeouts
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > ME Debug Configuration
Description
Enable Host Embedded Control Interface timeouts
Default Value
Enabled
Firmware Update Configuration
ME Firmware Re-Flash
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > Firmware Update Configuration
Description
Enables or Disables Management Engine Firmware Image Re-Flash function
Default Value
Disabled
FW Update
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > Firmware Update Configuration
Description
Enables or Disabled FW Update
Default Value
Enabled
3.6.16 - PTT Configuration
PTT Capability / State
Type
Info
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > PTT Configuration
Description
Report if the PTT (firmware TPM) is enabled and ready.
FIPS Configuration
FIPS Mode Select
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > FIPS Configuration
Description
Enables or Disables FIPS
Default Value
Disabled
Current FIPS Mode
Type
Info
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > FIPS Configuration
Description
Report the current FIPS mode
Crypto Driver FIPS Version
Type
Info
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > FIPS Configuration
Description
Report the FIPS crypto driver version
3.6.18 - Anti-Rollback SVN Configuration
Automatic HW-Enforced Anti-Rollback SVN
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > Anti-Rollback SVN Configuration
Description
Enables or disables Automatic HW-Enforced Anti-Rollback SVN
Default Value
Disabled
Set HW-Enforced Anti-Rollback for Current SVN
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > Anti-Rollback SVN Configuration
Description
Enables or disables setting the HW-Enforced Anti-Rollback for Current SVN
Default Value
Disabled
Minimal Allowed Anti-Rollback SVN
Type
Info
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > FIPS Configuration
Description
Report the current Minimal Allowed Anti-Rollback SVN
Executing Anti-Rollback SVN
Type
Info
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > FIPS Configuration
Description
Report the Executing Anti-Rollback SVN
OEM Key Revocation Configuration
Automatic OEM Key Revocation
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > OEM Key Revocation Configuration
Description
Enables or disables automatically revoking OEM keys
Default Value
Disabled
Invoke OEM Key Revocation
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > PCH-FW Configuration > OEM Key Revocation Configuration
Description
Enable to execute OEM key revocation
Default Value
Disabled
3.6.20 - Thermal Configuration
Enable All Thermal Functions
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration
Description
Enables ‘Memory Thermal Management’, ‘Active Trip Points’, and ‘Critical Trip Points’. Set to disabled for manual configuration.
Default Value
Disabled
CPU Thermal Configuration
DTS SMM
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Disabled: ACPI thermal management uses EC reported temperature values.
Enabled: ACPI thermal management uses DTS SMM mechanism to obtain CPU temperature values.
Out of Spec: ACPI Thermal Management uses EC reported temperature values and DTS SMM is used to handle Out of Spec conditions.
Default Value
Disabled
TCC Activation Offset
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Offset from factory set Tcc activation temprature at which the Thermal Control Circuit must be activated. Tcc will be activated at: Tcc Activation Temp - Tcc Activation Offset. Tcc Activation Offset range is 0 to 63.
Default Value
0
TCC Offset Time Window
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Tcc Offset Time Window for Running Average Temperature Limit(RATL) feature. The Tcc offset time window can range from 5ms to 448s.
Default Value
Disabled
TCC Offset Clamp Enable
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Tcc Offset Clamp bit Enable for Running Average Temperature Limit(RATL) feature to allow CPU to throttle below P1.
Default Value
Disabled
TCC Offset Lock Enable
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Lock Enable for Running Average Temperature Limit(RATL) feature to lock Temperature Target MSR.
Default Value
Enabled
Bi-directional PROCHOT#
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
When a processor thermal sensor trips (either core), then PROCHOT# will be driven.
If bi-direction is enabled, external agents can drive PROCHOT# to throttle the processor.
Default Value
Enabled
Disable PROCHOT# Output
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Enable/Disable PROCHOT# Output
Default Value
Enabled
Disable VR Thermal Alert
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Enable/Disable VR Thermal Alert
Default Value
Disabled
PROCHOT Response
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Enable/Disable PROCHOT Response
Default Value
Enabled
PROCHOT Lock
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Enable/Disable PROCHOT Lock
Default Value
Disabled
ACPI T-States
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > CPU Thermal Configuration
Description
Enable/Disable ACPI T-States
Default Value
Disabled
3.6.22 - Platform Thermal Configuration
Critical Trip Point
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the temperature value of the ACPI Critical Trip Point (the point at which the system will shut off.)
Note: 119C is the Plan Of Record (POR) for all Intel processors.
Possible Values
15, 23, 31, 39, 47, 55, 63, 71, 79, 87, 95, 100, 103, 111, 119, 127 (C)
Default Value
119 C (POR)
Active Trip Point 0
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the temperature value of the ACPI Active Trip Point 0 (the point at which the OS will set the processor fan to Active Trip Point 0 Fan Speed)
Possible Values
15, 23, 31, 39, 47, 55, 63, 71, 79, 87, 95, 100, 111, 127 (C)
Default Value
71 C
Active Trip Point 0 Fan Speed
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets Active Trip Point 0 Fan Speed percentage (the percentage of maximum speed at which the fan will run when Active Trip Point 0 is crossed)
Possible Values
0 to 100
Default Value
100
Active Trip Point 1
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the temperature value of the ACPI Active Trip Point 1 (the point at which the OS will set the processor fan to Active Trip Point 1 Fan Speed)
Possible Values
15, 23, 31, 39, 47, 55, 63, 71, 79, 87, 95, 100, 111, 127 (C)
Default Value
55 C
Active Trip Point 1 Fan Speed
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets Active Trip Point 1 Fan Speed percentage (the percentage of maximum speed at which the fan will run when Active Trip Point 1 is crossed)
Possible Values
0 to 100
Default Value
75
Passive Trip Point
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the temperature value of the ACPI Passive Trip Point (the point in which the OS will begin throttling the processor frequency)
Possible Values
15, 23, 31, 39, 47, 55, 63, 71, 79, 87, 100, 103, 111, 119 (POR), 127 (C)
Default Value
95 C
Passive TC1 Value
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the TC1 value for the ACPI Passive Cooling Formula
Possible Values
1 to 16
Default Value
1
Passive TC2 Value
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the TC2 value for the ACPI Passive Cooling Formula
Possible Values
1 to 16
Default Value
5
Passive TSP Value
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the TSP value for the ACPI Passive Cooling Formula. This value represents how often (in tenths of a second) the OS will read the temperature when passive cooling is enabled
Possible Values
2 to 32
Default Value
10
Active Trip Points
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables Active Trip Points
Default Value
Enabled
Passive Trip Points
Type
Configurable Setting
BIOS Page
Advanced Page > Thermal Configuration
Description
Enables or Disables Passive Trip Points
Default Value
Disabled
Critical Trip Points
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables Critical Trip Points
Default Value
Enabled
Active Trip Points
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables Active Trip Points
Default Value
Enabled
PCH Temp Read
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables reading of PCH temperature
Default Value
[X] (enabled)
CPU Energy Read
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables reading of CPU power draw
Default Value
[X] (enabled)
CPU Temp Read
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables reading of CPU temperatures
Default Value
[X] (enabled)
Alert Enable Lock
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables locking of all Alert Enable settings
Default Value
Disabled
CPU Temp
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the Fail Safe temperature that the embedded controller will use if the OS is hung
Default Value
75
CPU Fan Speed
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > Thermal Configuration > Platform Thermal Configuration
Description
Sets the fan speed that the embedded controller will use if the OS is hung
Possible Values
0-100%
Default Value
65%
3.6.23 - ACPI D3Cold Settings
ACPI D3Cold Support
Type
Configurable Setting
BIOS Page
Advanced Page > RC Advanced Menu > ACPI D3Cold Settings
Description
Enable/Disable ACPI D3Cold (RTD3) support
Default Value
Disabled
3.7- H2OUVE Configuration
H2OUVE Support
Type
Configurable Setting
BIOS Page
Advanced Page > H2OUVE Configuration
Description
Enable/Disable interface for configuring settings via the H2OUVE tool.
Default Value
Disabled
3.8- OnLogic Feature Configuration
Low Power Enable
Type
Configurable Setting
BIOS Page
Advanced > OnLogic Feature Configuration
Description
When enabled, the system will transition to a lower power state after shutting down. When enabled, the only wake source for the system is the front power button.
Default Value
Disabled
3.7.1 - 2x COM Daughter Card
COMx Mode Selection
Type
Configurable Setting
BIOS Page
Advanced > OnLogic Feature Configuration > COM
Description
RS-232: Set COM mode as RS-232.
RS-485 Half Duplex: Set COM mode as RS-485.
RS-485 Half Duplex (Terminated): Set COM mode as RS-485, and enable internal termination and bias resistors.
RS-422 Full Duplex: Set COM mode as RS-422.
RS-422 Full Duplex (Terminated): Set COM mode as RS-422, and enable internal termination and bias resistors.
Note: RS-422 and RS-485 modes use a different driver framework at the OS level.
Default Value
RS-232
COMx Slew Rate
Type
Configurable Setting
BIOS Page
Advanced > OnLogic Feature Configuration > COM
Description
Set the slew rate of a given COM port to slow or fast
Default Value
Fast
3.7.2 - Lan Dev Off
LAN x Dev Off
Type
Configurable Setting
BIOS Page
Advanced > OnLogic Feature Configuration > LAN Dev Off
Description
Disable the corresponding onboard NIC with a hardware power gate.
Default Value
Disabled
3.7.3 - CAN/DIO Daughter Card
PWMx
Type
Configurable Setting
BIOS Page
Advanced > OnLogic Feature Configuration > CAN/DIO Daughter Card
Description
Configure pin for use as PWM instead of GPIO
Default Value
Disabled
QEPx
Type
Configurable Setting
BIOS Page
Advanced > OnLogic Feature Configuration > CAN/DIO Daughter Card
Description
Configure pin group for use as QEP instead of GPIO
Default Value
Disabled
4- Security Page
Current TPM Device
Type
Information
BIOS Page
Security Page
Description
Displays current TPM device
TPM State
Type
Information
BIOS Page
Security Page
Description
Displays current TPM state
TPM Active PCR Hash Algorithm
Type
Information
BIOS Page
Security Page
Description
Displays active PCR hash algorithm
TPM Hardware Supported Hash Algorithm
Type
Information
BIOS Page
Security Page
Description
Displays hardware supported hash algorithm
BIOS Supported Hash Algorithm
Type
Information
BIOS Page
Security Page
Description
Displays BIOS supported hash algorithm
TrEE Protocol Version
Type
Configurable Setting
BIOS Page
Security Page
Description
Sets the TrEE Protocol Version: 1.0 or 1.1. Possible values: 1.1, 1.0. Default value: 1.1
Possible Values
1.1, 1.0
Default Value
1.1
TPM Availability
Type
Configurable Setting
BIOS Page
Security Page
Description
Enables or Disables the TPM hardware
Possible Values
Available (enabled), Hidden (disabled)
Default Value
Available
TPM Operation
Type
Configurable Setting
BIOS Page
Security Page
Description
Sets the TPM2 operation state
Possible Values
- No Operation
- Enable
- SetPCRBanks(Algorithm)
- LogAllDigests
- SetPPRequiredForClear_True
- SetPPRequiredForClear_False
- SetPPRequiredForTurnOn_False
- SetPPRequiredForTurnOn_True
- SetPPRequiredForTurnOff_False
- SetPPRequiredForTurnOff_True
- SetPPRequiredForChangePCRs_False
- SetPPRequriedForChangePCRs_True
- SetPPRequiredForChangeEPS_False
- SetPPRequiredForChangeEPS_True
- ChangeEPS
Default Value
No Operation
Clear TPM
Type
Configurable Setting
BIOS Page
Security Page
Description
Enables or Disables clearing TPM user data such as passwords, certificates, and keys
Default Value
[ ] (disabled)
Set Supervisor Password
Type
Configurable Setting
BIOS Page
Security Page
Description
Sets or Changes the supervisor password
Note: The password must be more than one character in length
5- Power Page
Wake on PME
Type
Configurable Setting
BIOS Page
Power
Description
Enable wake from a PCI Power Management Enable wake up event when the system is off
Default
Enabled
Auto Wake on S5
Type
Configurable Setting
BIOS Page
Power
Description
Software auto-power-on feature. This motherboard also features a hardware ATX jumper that provides the same functionality.
Default
Disabled
S5 Long Run Test
Type
Configurable Setting
BIOS Page
Power
Description
Force to enable RTC S5 wake up, even if the OS disables it. Supports ‘ipwrtest’ performing RTC S5 wakeup.
Default
Disabled
6- Boot Page
Boot Type
Type
Configurable Setting
BIOS Page
Boot Page
Description
Sets the boot mode
Possible Values
UEFI Boot Type, Legacy Boot Type, Dual Boot Type
Default Value
UEFI Boot Type
Network Stack
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables the onboard NICs before UEFI handoff
Default value: Disabled
Default Value
Disabled
PXE Boot Capability
Type
Configurable Setting
BIOS Page
Boot Page
Description
Sets the PXE Boot mode
Note: This setting is unavailable unless Network Stack is Enabled. Additionally PXE Boot over SGMII on this platform is not currently available. Updated UNDI drivers are planned to support this feature.
Possible Values
- Disabled
- UEFI: IPv4
- UEFI: IPv6
- UEFI: IPv4/IPv6
Default Value
Disabled
Add Boot Options
Type
Configurable Setting
BIOS Page
Boot Page
Description
Sets which device in the boot order list the system will attempt to boot first and the direction it will move through the list (see section 5.1 below)
Possible Values
- Auto (boot order is not configurable, uses the system default)
- First (system moves through the boot order list top to bottom)
- Last (system moves through the boot order list bottom to top)
Default Value
Auto
USB Boot
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables booting from USB devices
Default Value
Enabled
UEFI OS Fast Boot
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables Fast Boot mode. When enabled, the BIOS will not initialize the keyboard during boot or watch for the BIOS menu keypress
Default Value
Disabled
EFI
Type
Sub-Menu
BIOS Page
Boot Page
Description
Opens the EFI Boot Order sub-menu (see section 5.1 below)
6.1- EFI
Note: The EFI boot order configuration in this menu can only be changed if the Add Boot Options option above is set to First or Last.
In this menu, you set which devices the system can boot to, as well as change the order in which it attempts to boot. Highlight a boot device and press Enter to enable or disable booting to it. Use the F5 and F6 keys to move the boot device up and down the list.

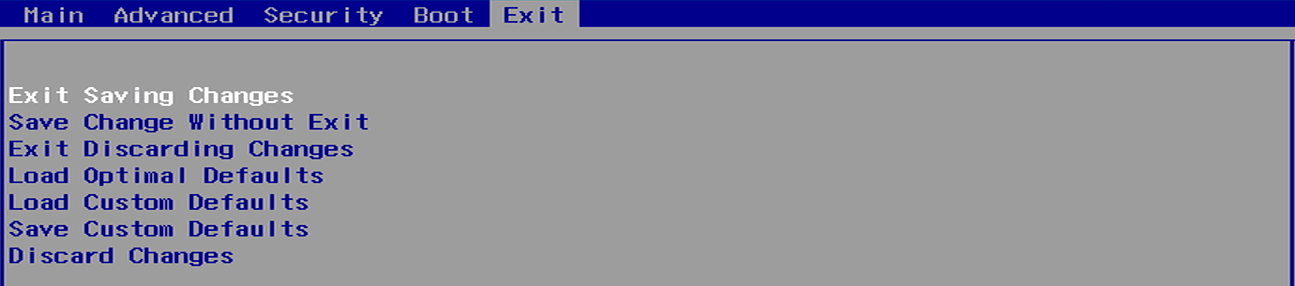

7- Exit Page
Exit Saving Changes
Type
Exit Mode
BIOS Page
Exit Page
Description
Saves your changes and exits the BIOS setup menu
Save Change Without Exit
Type
Exit Mode
BIOS Page
Exit Page
Description
Saves your changes, but does not exit the BIOS setup menu
Exit Discarding Changes
Type
Selectable
BIOS Page
Exit Page
Description
Exits the BIOS setup menu without saving your changes
Load Optimal Defaults
Type
Selectable
BIOS Page
Exit Page
Description
Loads the firmware’s optimal default settings
Load Custom Defaults
Type
Selectable
BIOS Page
Exit Page
Description
Loads user-specified set of default settings
Save Custom Defaults
Type
Selectable
BIOS Page
Exit Page
Description
Saves current settings as user-specified set
Discard Changes
Type
Selectable
BIOS Page
Exit Page
Description
Discards all changes, but does not exit the BIOS setup menu
8- BIOS Updates
The latest BIOS updates are available on the K410 / K430 Product Documentation page.
9- Revision History
Revision History
Date
First release of K410/K430 BIOS Manual
7/30/2021
Last updated
