K800 BIOS Manual
NOTE: To enter the BIOS on Karbon 800 systems, hold the ‘Delete’ key on your keyboard during boot.
1- Front Page
Boot Manager
Type
Menu
BIOS Page
Front Page
Description
Opens the list of detected bootable devices, allowing you to manually select a device to boot, such as an OS or PXE
Device Management
Type
Menu
BIOS Page
Front Page
Description
Opens the Device Manager menu which includes a configuration menu for Intel Rapid Storage Technology and a Network Device List (if RST and Network Stack are enabled)
Boot From File
Type
Menu
BIOS Page
Front Page
Description
Allows you to boot from a UEFI bootable file
Administer Secure Boot
Type
Menu
BIOS Page
Front Page
Description
Opens the Secure Boot configuration menu
Setup Utility
Type
Menu
BIOS Page
Front Page
Description
Opens the primary BIOS configuration menu referenced in sections 2 through 6 of this manual
Intel(R) Management Engine BIOS Extension
Type
Menu
BIOS Page
Front Page
Description
Opens the Intel Management Engine BIOS Extension (MEBx) configuration interface
2- Main Screen
System Memory Speed
Type
Information
BIOS Page
Main Page
Description
Displays current memory transfer rates
Cache RAM
Type
Information
BIOS Page
Main Page
Description
Displays total amount of Cache RAM available on the CPU
Total Memory
Type
Information
BIOS Page
Main Page
Description
Displays the total amount of System RAM
CPUID
Type
Information
BIOS Page
Main Page
Description
Displays CPUID of the processor installed
CPU Speed
Type
Information
BIOS Page
Main Page
Description
Displays base frequency of installed CPU
CPU Stepping
Type
Information
BIOS Page
Main Page
Description
Displays the silicon and metal revision of the CPU
Atom Core/Core Information
Type
Information
BIOS Page
Main Page
Description
Displays L1 Cache sizes, L1 Instruction Sizes, L2 Cache, and L3 Cache for both Efficient (Atom) and Performance cores
Total Processor Count
Type
Information
BIOS Page
Main Page
Description
Displays the total Core(s) and Thread(s) available on the CPU and separates them from Atom and Performance Cores
Microcode Revision
Type
Information
BIOS Page
Main Page
Description
Displays the revision of Microcode being used in the BIOS
GT Info
Type
Information
BIOS Page
Main Page
Description
Displays the information about the iGPU on the CPU
SMX/TXT
Type
Information
BIOS Page
Main Page
Description
Displays whether the CPU supports SMX (Safer Mode Extensions) or TXT (Trusted Execution Technology)
PCH Rev / SKU
Type
Information
BIOS Page
Main Page
Description
Displays the onboard chipset as well as it’s silicon and metal layer revision/step
GOP Ver
Type
Information
BIOS Page
Main Page
Description
Displays the GOP Version used by the BIOS
EC Ver
Type
Information
BIOS Page
Main Page
Description
Displays the version of the EC (Embedded Controller) used (N/A on K800 series)
Fab ID
Type
Information
BIOS Page
Main Page
Description
Displays the FAB ID embedded in the BIOS (0 for K800 series)
Intel ME Version / SKU
Type
Information
BIOS Page
Main Page
Description
Displays the ME Version and SKU (Corporate on K800 series)
LAN PHY Revision
Type
Information
BIOS Page
Main Page
Description
Displays the LAN PHY Revision (K800 series does not use integrated PHY, will display N/A)
Language
Type
Configurable Setting
BIOS Page
Main Page
Description
Allows BIOS Language to be selected
System Time
Type
Information
BIOS Page
Main Page
Description
Displays the time in HH:MM:SS. Valid range is from 0 to 23, 0 to 59, 0 to 59. Use +/- to increase/decrease
System Date
Type
Information
BIOS Page
Main Page
Description
Displays the date in MM:DD:YYYY. Valid range is from 1 to 12, 1 to 31, 2000 to 2099. Use +/- to increase/decrease
3- Advanced Screen
3.1- Boot Configuration
Numlock
Type
Configurable Setting
BIOS Page
Advanced Page > Boot Configuration
Description
Sets state of Num Lock key when system is booted
Default Value
Off
3.2- SATA Configuration
Serial ATA Port X
Type
Information
BIOS Page
Advanced Page > SATA Configuration
Description
Displays model number of device installed in each SATA Port
3.3- Chipset Configuration (Intel PTT)
Platform Trust Technology
Type
Information
BIOS Page
Advanced Page > Chipset Configuration (Intel PTT)
Description
Enables or Disables Intel Platform Trust Technology (PTT).
Default Value
Enabled
3.4- ACPI Table/Features Control
ACPI Settings
Type
Sub-Menu
BIOS Page
Advanced Page > ACPI Table/Features Control
Description
Opens ACPI Settings Menu
FACP - RTC S4 Wakeup
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control
Description
Enables or Disables FACP S4 Wakeup via the RTC
Default Value
Enabled
APIC - IO APIC Mode
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control
Description
Enables or disables IO APIC Mode
Default Value
Enabled

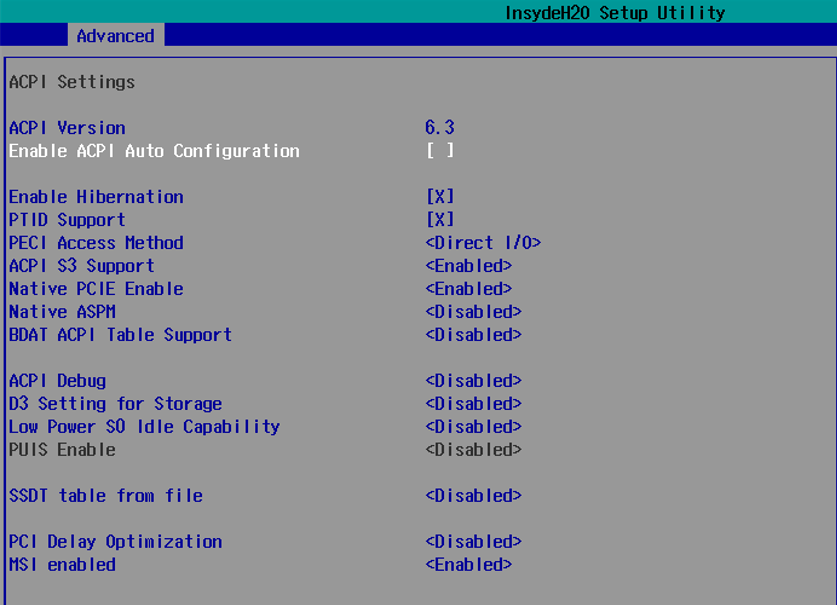

ACPI Settings
ACPI Version
Type
Information
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Displays the current ACPI Version
Enable ACPI Auto Configuration
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables ACPI Auto Configuration
Default Value
<Enabled>
Enable Hibernation
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables Hibernation support
Default Value
[X] (Enabled)
PTID Support
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables PTID support
Default Value
[X] (Enabled)
PECI Access Method
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
PECI Access Method select between Direct I/O or ACPI
Default Value
<Direct I/O>
ACPI S3 Support
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or disables Sleep ACPI S3 support
Default Value
<Enabled>
Native PCIE Enable
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enable or disable Native PCIe Control
Default Value
<Enabled>
Native ASPM
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables Native Active State Power Management (ASPM)
Possible Values
<Auto>
<Enabled - OS Controlled ASPM>
<Disabled - BIOS Controlled ASPM>
Default Value
<Enabled>
BDAT ACPI Table
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables Native Active State Power Management (ASPM)
Default Value
<Disabled>
ACPI Debug
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables ACPI Debug
Default Value
<Disabled>
D3 Setting for Storage
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables RTD3 support for Storage. PCIe Storage PEP constraint needs to be set as D0/F1 under ACPI Settings > PEP PCie Storage when this setup is Disabled/D3Hot
Default Value
<Disabled>
Low Power S0 Idle Capability
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enable or Disable ACPI Lower Power S0 Idle Capability (mutually exclusive with Smart Connect). While this is enabled, it also disables 8254 timer for SLP_S0 support.
Default Value
<Disabled>
PUIS Enable
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enables or Disables Native Active State Power Management (ASPM)
Default Value
<Disabled>
SSDT table from file
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enable or Disable ACPI Lower Power S0 Idle Capability (mutually exclusive with Smart Connect). While this is enabled, it also disables 8254 timer for SLP_S0 support.
Default Value
<Disabled>
PCI Delay Optimization
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
Enable or Disable ACPI additions for Firmware latency optimizations
Default Value
<Disabled>
MSI enabled
Type
Configurable Setting
BIOS Page
Advanced Page > ACPI Table/Features Control > ACPI Settings
Description
When disabled, MSI support is disabled in FADT
Default Value
<Disabled>
3.5- Connectivity Configuration
CNVi CRF Present
Type
Information
BIOS Page
Advanced Page > Connectivity Configuration
Description
Displays whether a CNVi module is present (Not supported on K800 series)
CNVi Mode
Type
Configurable Setting
BIOS Page
Advanced Page > Connectivity Configuration
Description
Configures CNVi Connectivity
Possible Values
<Auto Detection> if a discrete solution is discovered, it will be enabled by default
<Disable Integrated> Disables Integrated solution
(Not supported on K800 series)
Default Value
<Auto Detection>
RFI Mitigation
Type
Configurable Setting
BIOS Page
Advanced Page > Connectivity Configuration
Description
Enables or Disables RFI Mitigation for DDR-RFIM
Default Value
<Enabled>
CoExistence Manager
Type
Configurable Setting
BIOS Page
Advanced Page > Connectivity Configuration
Description
Enables or disables CoExistence Manager
(Not supported on K800 series)
Default Value
<Disabled>
3.6- PCIE Configuration
IMR Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCIE Configuration
Description
Opens up IMR Configuration - K800 does not support this and leads to a blank menu
3.7- PCH-IO Configuration
USB Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO
Description
Opens USB Configuration Menu
Security Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO
Description
Opens Security Configuration Menu
HD Audio Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO
Description
Opens HD Audio Configuration Menu
THC Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO
Description
Opens THC Configuration Menu
ISH Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO
Description
Opens ISH (Intel Sensor Hub) Settings Menu
Pch Thermal Throttling Control
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO
Description
Opens PCH Thermal Throttling Control Settings Menu
PCH LAN Controller
Type
Information
BIOS Page
Advanced Page > PCH-IO
Description
Displays status of PCH LAN Controller. K800 does not use internal PCH controller, and therefore has the GbE Region Disabled
Default Value
<No GbE Region>
Foxville I225 LAN Controller
Type
Configurable
BIOS Page
Advanced Page > PCH-IO
Description
Displays status of the i225-LM LAN Controller (LAN1)
Default Value
<Enabled>
Foxville I225 Wake on LAN Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO
Description
Enables or disables Wake on LAN Support
Default Value
<Enabled>
EFI Network
Type
Configurable
BIOS Page
Advanced Page > PCH-IO
Description
Enables/Disables EFI Network support for onboard LAN
Default Value
<Onboard NIC>
DeepSx Power Policies
Type
Configurable
BIOS Page
Advanced Page > PCH-IO
Description
Enables or disables DeepSx or Deep Sleep/Ultra Low power states
Default Value
<Disabled>
Wake on WLAN and BT Enable
Type
Configurable
BIOS Page
Advanced Page > PCH-IO
Description
Enables or disables Wake on WLAN and BT Enable for CNVi cards (Not supported on K800 series)
Default Value
<Disabled>
State After G3
Type
Configurable
BIOS Page
Advanced Page > PCH-IO
Description
Defines the state after entering a G3 state (Power unplugged from system entirely)
Possible Values
<S0 State>
<S5 State>
Default Value
<S0 State>
Enable TCO Timer
USB Configuration
xDCI Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > USB Configuration
Description
Enables or Disables xDCI Support for USB OTG (Not supported on K800 Series)
Default Value
<Disabled>
USB PDO Programming
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > USB Configuration
Description
Select ‘Enabled’ if Port Disable Override functionality is used
Default Value
<Enabled>
USB Overcurrent
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > USB Configuration
Description
Enables or Disables overcurrent notifications in the Operating systems
Default Value
<Enabled>
USB Overcurrent Lock
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > USB Configuration
Description
Select ‘Enabled’ if Overcurrent functionality is used. Enabling this will make xHCI controller consume the Overcurrent mapping data
Default Value
<Enabled>
USB Audio Offload
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > USB Configuration
Description
Enables or Disables USB Audio Offloading
Default Value
<Enabled>
Enable HSII on xHCI
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > USB Configuration
Description
Enable or Disable HSII feature. It may lead to increased power consumption
Default Value
<Enabled>
USB Port Disable Override
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > USB Configuration
Description
Enables or Disables override capabilities on USB Ports
Default Value
<Disabled>
Security Configuration
RTC Memory Lock
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Security Configuration
Description
Enables or Disables RTC Memory Lock
Default Value
<Enabled>
BIOS Lock
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Security Configuration
Description
Enables or Disables BIOS Lock
Default Value
<Enabled>
Force unlock on all GPIO pads
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Security Configuration
Description
Enables or Disables forcing all GPIO pads to be in an unlocked state
Default Value
<Disabled>
HD Audio Configuration
HD Audio
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables the onboard audio (ALC888)
Default Value
<Enabled>
Audio DSP
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables the Audio DSP
Default Value
<Enabled>
Audio DSP Compliance Mode
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Selects the audio DSP, default is HD Audio Inbox for Windows/Intel Smart Sound Technology
Default Value
<UAA (HDA Inbox/IntelSST)>
HDA Link
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or Disables the HD Audio Link
Default Value
<Enabled>
DMIC #0
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables DMIC #0 (Not supported on K800 series)
Default Value
<Disabled>
DMIC #1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables DMIC #1 (Not supported on K800 series)
Default Value
<Disabled>
SSP #0
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SSP #0 (Not supported on K800 series)
Default Value
<Disabled>
SSP #1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SSP #1 (Not supported on K800 series)
Default Value
<Disabled>
SSP #2
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SSP #2 (Not supported on K800 series)
Default Value
<Disabled>
SSP #3
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SSP #3 (Not supported on K800 series)
Default Value
<Disabled>
SSP #4
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SSP #4 (Not supported on K800 series)
Default Value
<Disabled>
SSP #5
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SSP #5 (Not supported on K800 series)
Default Value
<Disabled>
SNDW #1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SNDW #1 (Not supported on K800 series)
Default Value
<Disabled>
SNDW #2
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SNDW #2 (Not supported on K800 series)
Default Value
<Disabled>
SNDW #3
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SNDW #3 (Not supported on K800 series)
Default Value
<Disabled>
SNDW #4
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Enables or disables SNDW #4 (Not supported on K800 series)
Default Value
<Disabled>
HD Audio Advanced Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Opens HD Audio Advanced Configuration Menu
HD Audio DSP Features Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration
Description
Opens HD Audio DSP Features Configuration
HD Audio Advanced Configuration
iDisplay Audio Disconnect
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables iDisplay Audio Connect
Default Value
<Disabled>
Codec Sx Wake Capability
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Codec Sx Wake Capabilities
Default Value
<Disabled>
PME Enable
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables PME (Power Management Event) wake of HD Audio Controller during POST
Default Value
<Disabled>
HD Audio Link Frequency
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Selects clock frequency for HD Audio Link - OnLogic has only validated 24MHz functionality. Changing this setting may impact performance/functionality
Possible Values
<6 MHz>
<12 MHz>
<24 MHz>
Default Value
<24 MHz>
iDisplay Audio Link Frequency
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Selects clock frequency for iDisplay Audio Link
Possible Values
<48 MHz>
<96 MHz>
Default Value
<96 MHz>
iDisplay Audio Link T-Mode
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Selects iDisplay Audio Link T-Mode
Possible Values
<1T Mode>
<2T Mode>
<4T Mode>
<8T Mode>
<16T Mode>
Default Value
<8T Mode>
Autonomous Clock Stop SNDW #1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Autonomous Clock Stop on SNDW #1 (Not supported by K800)
Default Value
<Disabled>
Autonomous Clock Stop SNDW #2
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Autonomous Clock Stop on SNDW #2 (Not supported by K800)
Default Value
<Disabled>
Autonomous Clock Stop SNDW #3
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Autonomous Clock Stop on SNDW #3 (Not supported by K800)
Default Value
<Disabled>
Autonomous Clock Stop SNDW #4
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Autonomous Clock Stop on SNDW #1 (Not supported by K800)
Default Value
<Disabled>
Data On Active on Interval Select SNDW #1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Active on Interval Select SNDW #1 (Not supported by K800)
Default Value
<Disabled>
Data On Active on Interval Select SNDW #2
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Active on Interval Select SNDW #2 (Not supported by K800)
Default Value
<Disabled>
Data On Active on Interval Select SNDW #3
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Active on Interval Select SNDW #3 (Not supported by K800)
Default Value
<Disabled>
Data On Active on Interval Select SNDW #4
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Active on Interval Select SNDW #4 (Not supported by K800)
Default Value
<Disabled>
Data On Delay Select SNDW #1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Delay Select for SNDW #1 (Not supported by K800)
Default Value
<Disabled>
Data On Delay Select SNDW #2
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Delay Select for SNDW #2 (Not supported by K800)
Default Value
<Disabled>
Data On Delay Select SNDW #3
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Delay Select for SNDW #3 (Not supported by K800)
Default Value
<Disabled>
Data On Delay Select SNDW #4
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Data On Delay Select for SNDW #4 (Not supported by K800)
Default Value
<Disabled>
HD Audio DSP Features Configuration
Dmic Mono 38.4MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Dmic Mono 38.4MHz audio
Dmic Stereo 38.4MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Dmic Stereo 38.4MHz audio
Dmic Quad 38.4MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Dmic Stereo 38.4MHz audio
Dmic Mono 24MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Dmic Mono 24MHz audio
Dmic Stereo 24MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Dmic Stereo 24MHz audio
Dmic Quad 24MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Dmic Quad 24MHz audio
Bluetooth 38.4MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Bluetooth 38.4MHz audio
Bluetooth 24MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the Bluetooth 24MHz audio
I2S ALC274 38.4MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the I2S ALC274 38.4MHz audio (K800 Series uses ALC888)
I2S ALC274 24MHz
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the I2S ALC274 24MHz audio (K800 Series uses ALC888)
I2S Codec Select
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the I2S Codec selection
I2S Codec Bus Number
Type
Information
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio DSP Features Configuration
Description
Displays the status of the I2S Codec Bus Number (K800 uses HDA not I2S bus)
WoV (Wake on Voice)
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Wake on Voice functionality
Default Value
[X] (Enabled)
Bluetooth Sideband
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Bluetooth Sideband
Default Value
[ ] (Disabled)
BT Intel HFP
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Bluetooth Intel HFP
Default Value
[ ] (Disabled)
BT Intel A2DP
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Bluetooth Intel A2DP
Default Value
[ ] (Disabled)
Codec based VAD
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables codec based VAD
Default Value
[ ] (Disabled)
DSP based speech
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables DSP based speech
Default Value
[ ] (Disabled)
Voice Activity Detection
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables DSP based speech
<Intel Wake on Voice>
<Windows 10 Voice Activation>
Default Value
<Windows 10 Voice Activation>
Waves Post-process
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Waves Post-process
Default Value
[ ] (Disabled)
DTS
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables DTS
Default Value
[ ] (Disabled)
Intel SST Speech
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Intel SST Speech
Default Value
[ ] (Disabled)
Dolby
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Dolby
Default Value
[ ] (Disabled)
Waves Pre-process
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Waves Pre-process
Default Value
[ ] (Disabled)
Audyssey
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Audyssey
Default Value
[ ] (Disabled)
Maxim Smart AMP
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Maxim Smart AMP
Default Value
[ ] (Disabled)
ForteMedia SAMSoft
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables ForteMedia SAMSoft
Default Value
[ ] (Disabled)
Sound Research IP
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Sound Research IP
Default Value
[ ] (Disabled)
Conexant Pre-Process
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Conexant Pre-Process
Default Value
[ ] (Disabled)
Conexant Smart Amp
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Conexant Smart Amp
Default Value
[ ] (Disabled)
Realtek Post-Process
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Realtek Post-Process
Default Value
[ ] (Disabled)
Realtek Smart Amp
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Realtek Smart Amp
Default Value
[ ] (Disabled)
Icepower IP MFX sub module
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Icepower IP MFX sub module
Default Value
[ ] (Disabled)
Icepower IP EFX sub module
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Icepower IP EFX sub module
Default Value
[ ] (Disabled)
Icepower IP SFX sub module
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Icepower IP SFX sub module
Default Value
[ ] (Disabled)
Voice Preprocessing
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Voice Preprocessing
Default Value
[ ] (Disabled)
Acoustic Context Awareness (ACA)
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Acoustic Context Awareness (ACA)
Default Value
[ ] (Disabled)
Custom Module ‘Alpha’
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Custom Module ‘Alpha’
Default Value
[ ] (Disabled)
Custom Module ‘Beta’
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Custom Module ‘Beta’
Default Value
[ ] (Disabled)
Custom Module ‘Gamma’
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Custom Module ‘Gamma’
Default Value
[ ] (Disabled)
THC Configuration
THC Configuration
Type
Information
BIOS Page
Advanced Page > PCH-IO > THC Configuration
Description
THC (Touch Host Controller) Configuration is not Available on K800 Series
ISH Configurtion
ISH Controller
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > HD Audio Configuration > HD Audio Subsystem Advanced Configuration Settings
Description
Enables or Disables Intel Sensor Hub (Not used on K800 Series)
Default Value
<Disabled>
3.7.6 - Pch Thermal Throttling Control
Thermal Throttling Level
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Pch Thermal Throttling Control
Description
Decide whether to use suggested settings, or set to manual settings
Default Value
<Suggested Setting>
DMI Thermal Setting
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Pch Thermal Throttling Control
Description
Decide whether to use suggested settings, or set to manual settings
Default Value
<Suggested Setting>
SATA Thermal Setting
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Pch Thermal Throttling Control
Description
Decide whether to use suggested settings, or set to manual settings
Default Value
<Suggested Setting>
3.8- PCH-FW Configuration
ME Firmware Versin
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Version
ME Firmware Mode
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Mode
ME Firmware SKU
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware SKU
ME Firmware Status 1
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Status 1
ME Firmware Status 2
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Status 2
ME Firmware Status 3
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Status 3
ME Firmware Status 4
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Status 4
ME Firmware Status 5
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Status 5
ME Firmware Status 6
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the Intel Management Engine Firmware Status 6
ME State
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the status of the Management Engine
Manageability Features State
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the status of the Management Engine Manageability Features state
AMT BIOS Features
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Displays the status of the AMT BIOS Features
AMT Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Opens AMT Configuration Sub-Menu
ME Unconfic on RTC Clear
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Enables or disables unconfiguration upon RTC Clear
Default Value
<Enabled>
Comms Hub Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Enables or disables Comms Hub Support
Default Value
<Disabled>
JHI Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Enables or disables JHI Support
Default Value
<Disabled>
Core Bios Done Message
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Enables or disables Core Bios Done Message
Default Value
<Enabled>
Firmware Update Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Opens Firmware Update Configuration Sub-Menu
PTT Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Opens PTT Configuration Sub-Menu
FIPS Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Opens PTT FIPS Configuration Sub-Menu
Unique Platform Id Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Opens Unique Platform Id Configuration Sub-Menu
ME Debug Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Opens ME Debug Configuration Sub-Menu
Anti-Rollback SVN Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Opens Anti-Rollback SVN Configuration Sub-Menu
Extend CSME Measurement to TPM-PCR
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration
Description
Enables or disables Extending CSME Measurement to TPM-PCR
Default Value
<Disabled>
AMT Configuration
USB Provisioning of AMT
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Enables or disables USB Provisioning of AMT
Default Value
<Disabled>
MAC Pass Through
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Enables or disables MAC Pass Through on the AMT enabled port (i225-LM/LAN1)
Default Value
<Disabled>
Activate Remote Assistance Process
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Enables or disables Remote Assistance Process
Default Value
[ ] (Disabled)
Unconfigure ME
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Unconfigures the current Management Engine settings
Default Value
[ ] (Disabled)
ASF Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Opens ASF (Alert Standard Format) Configuration Sub-Menu
Secure Erase Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Opens Secure Erase Configuration Sub-Menu
One Click Recovery (OCR) Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Opens Secure Erase Configuration Sub-Menu
ASF Configuration
PET Progress
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > ASF Configuration
Description
Enable/Disable PET Events Progress to receive PET Events
Default Value
<Enabled>
Watchdog
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > ASF Configuration
Description
Enable/Disable Watchdog
Default Value
<Disabled>
OS Timer
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > ASF Configuration
Description
Set the OS Timer for the Watchdog
Default Value
[0]
BIOS Timer
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > ASF Configuration
Description
Set the BIOS Timer for the Watchdog
Default Value
[0]
ASF Sensors Table
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > ASF Configuration
Description
Display the ASF (Alert Sensor Format) Sensors Table
Default Value
<Disabled>
Secure Erase Configuration
Secure Erase mode
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > Secure Erase Configuration
Description
Define the secure erase mode - Either Simulated or Real
Default Value
<Simulated>
Force Secure Erase
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > Secure Erase Configuration
Description
Enable/Disable Force Secure Erase
Default Value
<Disabled>
One Click Recovery(OCR) Configuration
OCR Https Boot
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > One Click Recovery(OCR) Configuration
Description
Enable/Disable One Click Recovery Https Boot
Default Value
<Enabled>
OCR PBA Boot
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > One Click Recovery(OCR) Configuration
Description
Enable/Disable One Click Recovery PBA Boot
Default Value
<Enabled>
OCR Windows Recovery Boot
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > One Click Recovery(OCR) Configuration
Description
Enable/Disable One Click Recovery Windows Recovery Boot
Default Value
<Enabled>
OCR Disable Secure Boot
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > One Click Recovery(OCR) Configuration
Description
Enable/Disable One Click Recovery Windows Boot
Default Value
<Enabled>
Firmware Update Configuration
Me FW Image Re-Flash
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > Firmware Update Configuration
Description
Enable/Disable Me FW Image Re-Flash Function
Default Value
<Disabled>
FW Update
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration > Firmware Update Configuration
Description
Enable/Disable Me FW Update
Default Value
<Enabled>
3.8.3 - PTT Configuration
PTT Configuration
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > PTT Configuration
Description
Displays the status of PTT
FIPS Configuration
FIPS Mode Select
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > FIPS Configuration
Description
FIPS Mode Configuration
Default Value
<Enabled>
Current FIPS mode
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > FIPS Configuration
Description
Displays the status of the current FIPS mode
Crypto driver FIPS version
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > FIPS Configuration
Description
Displays the Crypto driver FIPS version
Unique Platform Id Configuration
OEM Platform Id
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > Unique Platform Id Configuration
Description
Displays the OEM Platform ID
CSME Platform Id
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > Unique Platform Id Configuration
Description
Displays the OEM CSME Platform ID
ME Debug Configuration
HECI Timeouts
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > ME Debug Configuration
Description
Enable/Disable HECI Send/Receive Timeouts
Default Value
[X] (Enabled)
SMBIOS type 130 OEM capabilities
BIOS Reflash Capability State
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > ME Debug Configuration > SMBIOS type 130 OEM Capabilities
Description
Enable BIOS Reflash Capabilities
Default Value
[X] (Enabled)
BIOS Boot to Setup Capability State
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > ME Debug Configuration > SMBIOS type 130 OEM Capabilities
Description
Enable BIOS capabilities to boot to setup
Default Value
[X] (Enabled)
BIOS Pause Before Booting Capability State
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > ME Debug Configuration > SMBIOS type 130 OEM Capabilities
Description
Enable the BIOS to pause before booting to capability states
Default Value
[ ] (Disabled)
BIOS Secure Boot Capability Exposure to FW State
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > ME Debug Configuration > SMBIOS type 130 OEM Capabilities
Description
Enable or Disabled BIOS Secure Boot Capability Exposure to FW State
Default Value
[X] (Enabled)
vPro TBT Dock Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > ME Debug Configuration > SMBIOS type 130 OEM Capabilities
Description
Enable or Disable vPro Support over a Thunderbolt Dock (K800 does not support Thunderbolt)
Default Value
[X] (Enabled)
Anti-Rollback SVN Configuration
Minimal Allowed Anti-Rollback SVN
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > Anti-Rollback SVN Configuration
Description
Displays the minimum amount of allowed (SVN) Serial Version Number Anti-Rollbacks
Executing Anti-Rollback SVN
Type
Information
BIOS Page
Advanced Page > PCH-IO > PCH-FW Configuration > Anti-Rollback SVN Configuration
Description
Displays the amount of allowed (SVN) Serial Version Number Anti-Rollbacks
3.9- Thermal Configuration
Enable All Thermal Functions
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration
Description
Enables or Disables thermal functions of the K800
Default Value
<Enabled>
CPU Thermal Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > Thermal Configuration
Description
Opens CPU Thermal Configuration Menu
Platform Thermal Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > Thermal Configuration
Description
Opens Platform Thermal Configuration Menu
Intel(R) Dynamic Tuning Technology Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > Thermal Configuration
Description
Opens Intel(R) Dynamic Tuning Technology Configuration Menu
Hardware Health Monitor
Type
Sub-Menu
BIOS Page
Advanced Page > Thermal Configuration
Description
Opens Hardware Health Monitor Menu
CPU Thermal Configuration
Current Tcc Activation Offset
Type
Information
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Displays the current TCC Activation Offset
Tcc Activation Offset
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Allows setting of Tcc Activation Offset
Default Value
[0]
Tcc Offset Time Window
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Allows setting the time window for Tcc Offset
Default Value
<Disabled>
Tcc Offset Clamp Enable
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables the Tcc Offset Clamp
Default Value
<Disabled>
Tcc Offset Lock Enable
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables the Tcc Lock Clamp
Default Value
<Disabled>
Bi-directional PROCHOT#
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables Bi-Directional PROCHOT#
Default Value
<Enabled>
Disable PROCHOT# Output
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables the PROCHOT# output
Default Value
<Enabled>
Disable VR Thermal Alert
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables the VR Thermal Alert
Default Value
<Enabled>
PROCHOT Response
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables the PROCHOT Response
Default Value
<Enabled>
PROCHOT Lock
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables the PROCHOT Lock
Default Value
<Enabled>
ACPI T States
Type
Configurable
BIOS Page
Advanced Page > Thermal Configuration > CPU Thermal Configuration
Description
Enables or Disables the ACPI T-States
Default Value
[ ] (Disabled)
Platform Thermal Configuration
Critical Trip Point
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
This value controls the temperature of the ACPI Critical Trip Point - the point in which the OS will shut the system off.
Possible Values
<15 C>
<23 C>
<31 C>
<39 C>
<47 C>
<55 C>
<63 C>
<71 C>
<79 C>
<87 C> <95 C>
<100 C>
<111 C>
<119 C (POR)>
<127 C>
<130 C>
Default Value
<119 C (POR)>
Active Trip Point 0
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
This value controls the temperature of the ACPI Active Trip Point 0 - the point in which the OS will turn the processor fan on Active Trip Point 0 Fan Speed
Possible Values
<Disabled>
<15 C>
<23 C>
<31 C>
<39 C>
<47 C>
<55 C>
<63 C>
<71 C>
<79 C>
<87 C> <95 C>
<100 C>
<111 C>
<119 C (POR)>
Default Value
<71 C>
Active Trip Point 0 Fan Speed
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Active Trip Point 0 Fan Speed in percentage. Value must be between 0 (Fan off) - 100 (Max fan speed). This is the speed at which the fan will run when the Active Trip Point 0 threshold is met
Possible Values
Any value between 0 and 100
Default Value
<100>
Active Trip Point 1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
This value controls the temperature of the ACPI Active Trip Point 0 - the point in which the OS will turn the processor fan on Active Trip Point 1 Fan Speed
Possible Values
<Disabled>
<15 C>
<23 C>
<31 C>
<39 C>
<47 C>
<55 C>
<63 C>
<71 C>
<79 C>
<87 C> <95 C>
<100 C>
<111 C>
<119 C (POR)>
Default Value
<55 C>
Active Trip Point 1 Fan Speed
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Active Trip Point 0 Fan Speed in percentage. Value must be between 0 (Fan off) - 100 (Max fan speed). This is the speed at which the fan will run when the Active Trip Point 1 threshold is met
Possible Values
Any value between 0 and 100
Default Value
<75>
Passive Trip Point
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
This value controls the temperature of the ACPI Passive Trip Point -the point in which the OS will begin throttling the processor
<Disabled>
<15 C>
<23 C>
<31 C>
<39 C>
<47 C>
<55 C>
<63 C>
<71 C>
<79 C>
<87 C> <95 C>
<100 C>
<111 C>
<119 C (POR)>
Default Value
<95 C>
Passive TC1 Value
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
This value sets the TC1 value for the ACPI Passive Cooling Formula. Range 1-16
Default Value
[1]
Passive TC2 Value
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
This value sets the TC2 value for the ACPI Passive Cooling Formula. Range 1-16
Default Value
[5]
Passive TSP Value
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
This item sets the TSP value for the ACPI Passive Cooling Formula. It represents in tenths of a second how often the OS will read the temperature when passive cooling is enabled. Range 2-32
Default Value
[10]
Active Trip Points
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables the Active Trip Points
Default Value
<Enabled>
Passive Trip Points
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables the Passive Trip Points
Default Value
<Disabled>
Critical Trip Points
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables the Passive Trip Points
Default Value
<Enabled>
PCH Temp Read
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables temperature reading of the PCH
Default Value
[X] (Enabled)
CPU Energy Read
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables CPU Energy Read
Default Value
[X] (Enabled)
CPU Temp Read
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables temperature reading of the CPU
Default Value
[X] (Enabled)
Alert Enable Lock
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Enables or Disables the Alert Enable Lock
Default Value
<Disabled>
CPU Temp
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Displays the current CPU Temperature
CPU Fan Speed
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Platform Thermal Configuration
Description
Displays the current CPU Fan Duty Cycle
Intel(R) Dynamic Tuning Technology Configuration
Intel(R) Dynamic Tuning Technology
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enables or Disables Intel(R) DTT
Default Value
<Enabled>
INT3400 Device
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enables or Disables Intel3400 device
Default Value
<Disabled>
Processor Thermal Device
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or Disable Processor Thermal Device
Possible Values
<Disabled>
<SA Thermal Device>
Default Value
<SA Thermal Device>
PPCC Step Size
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Sets the PPCC Step Size (Step size for Turbo power limit (RAPL) control)
<0.5 Watts>
<1.0 Watts>
<1.5 Watts>
<2.0 Watts>
Default Value
<0.5 Watts>
Intel(R) Dynamic Tuning Technology Configuration
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Allows you to select the configuration of Intel(R) DTT
Default Value
[0]
FAN1 Device
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Status of FAN1 device
FAN2 Device
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Status of FAN2 device
FAN3 Device
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Status of FAN3 device
Charger Participant
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable charger participant (Not available on K800 series)
Default Value
<Disabled>
Power Participant
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable Power participant (Not available on K800 series)
Default Value
<Disabled>
Battery Participant
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable Battery participant (Not available on K800 series)
Default Value
<Disabled>
PCH FIVR Participant
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable PCH FIVR participant (Not available on K800 series)
Default Value
<Disabled>
Sensor Device 1
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable Sensor Device 1 (Not available on K800 series)
Default Value
<Disabled>
Sensor Device 2
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable Sensor Device 2 (Not available on K800 series)
Default Value
<Disabled>
Sensor Device 3
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable Sensor Device 3 (Not available on K800 series)
Default Value
<Disabled>
Sensor Device 4
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable Sensor Device 4 (Not available on K800 series)
Default Value
<Disabled>
Sensor Device 5
Type
Information
BIOS Page
Advanced Page > PCH-IO > Thermal Configuration > Intel(R) Dynamic Tuning Technology Configuration
Description
Enable or disable Sensor Device 5 (Not available on K800 series)
Default Value
<Disabled>
3.10- Platform Settings
Charging Method
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Define the charing method (Not available on K800 Series)
Default Value
<Normal Charging>
Scan Matrix Keyboard Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Enable or Disable Scan Matrix Keyboard Support
Default Value
<Disabled>
Power Loss Notification Feature
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Define the Power Loss Notification Feature
Default Value
<Default>
Device password support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Enable or disable device password support
Default Value
[X] (Enabled)
Pmic Vcc IO Level
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Define the PMIC VCC IO Level (K800 does not use a PMIC)
Default Value
<Disabled>
Pmic Vddq Level
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Define the PMIC VDDQ Level (K800 does not use a PMIC)
Default Value
<Disabled>
CSC Pmic NVM Update Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Ability to update PMIC NVM (K800 does not use a PMIC)
Default Value
<Disabled>
Pmic NVM Write Lock Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Ability to update PMIC NVM (K800 does not use a PMIC)
Default Value
<Disabled>
Enable FFU Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Enable FFU Support
Default Value
<Disabled>
HID Event Filter Driver
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Enables the HID Event Filter Driver
Default Value
<Disabled>
System Time and Alarm Source
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Defines the System Time and Alarm Source
Default Value
<ACPI Time and Alarm Device>
Enable PowerMeter
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Enables or disables PowerMeter
Default Value
<Disabled>
Aux Rail Budget (Watt)
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Defines the power budget for the VCCAUX power rail. Setting this to any lower than 6 may lead to abnormal system behavior
Default Value
[6]
System Firmware Update Config
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Opens System Firmware Update Config Menu
VTIO
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > Platform Settings
Description
Opens the VTIO Menu
System Firmware Update Config
Restore Setup Default
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings > System Firmware Update Config
Description
When enabled resets the systems BIOS settings
Default Value
<Disabled>
Skip Power Check
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings > System Firmware Update Config
Description
Skips the power check during POST
Default Value
<Enabled>
3.10.2 - VTIO
Enable VTIO Support
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > Platform Settings > VTIO
Description
Enables VTIO Support
Default Value
<Disabled>
3.11- CPU - BCLK Clock Settings
BCLK Frequency
Type
Information
BIOS Page
Advanced Page > CPU - BCLK Clock Settings
Description
Displays the BCLK frequency of the system
3.12- OnLogic Feature Configuration
SIM Card Muxing
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > OnLogic Feature Configuration
Description
Enables VTIO Support
Possible Values
<Mode 1> - UIM1 to mPCIe, UIM2 to B-Key
<Mode 2> - UIM1 to B-Key, UIM2 to mPCIe
<Mode 3> - UIM1 & UIM2 to B-Key
Default Value
<Mode 3>
LAN 1 to LAN 2
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > OnLogic Feature Configuration
Description
Enables LAN 1 and LAN 2
Default Value
<Enabled>
LAN 3 to LAN 6
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > OnLogic Feature Configuration
Description
Enables LAN 3, LAN 4, LAN 5, and LAN 6
Default Value
<Enabled>
3.13- SIO NCT5525D
I/O Configuration Port
Type
Information
BIOS Page
Advanced Page > SIO NCT5525D
Description
Displays memory location of the SIO
UART Port 1 Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > SIO NCT5525D
Description
Opens the configuration menu for UART Port 1
UART Port 2 Configuration
Type
Sub-Menu
BIOS Page
Advanced Page > SIO NCT5525D
Description
Opens the configuration menu for UART Port 2
Fan Control
Type
Sub-Menu
BIOS Page
Advanced Page > SIO NCT5525D
Description
Opens the Fan Control Menu
Hardware Monitor
Type
Sub-Menu
BIOS Page
Advanced Page > SIO NCT5525D
Description
Opens the Hardware Monitor Menu
UART Port 1 Configuration
UART Port 1
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Enables or disables UART Port 1
Default Value
<Enabled>
Base I/O Address
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the Base I/O Address for UART Port 1
Possible Values
<3F8h>
<2F8h>
<3E8h>
<2E8h>
<338h>
<228h>
<220h>
<238h>
Default Value
<38Fh>
Interrupt
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the Interrupt for UART Port 1
Possible Values
<IRQ3>
<IRQ4>
<IRQ5>
<IRQ6>
<IRQ7>
<IRQ10>
<IRQ11>
Default Value
<IRQ4>
Sharing IRQ
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines IRQ Exclusivity for UART Port 1
Possible Values
<Shared>
<Exclusive>
Default Value
<Exclusive>
Interrupt Polarity
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the Interrupt Polarity for UART Port 1
Possible Values
<Active-High>
<Active-Low>
Default Value
<Active-High>
Interrupt Mode
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the Interrupt Mode for UART Port 1
Possible Values
<Level-Triggered>
<Edge-Triggered>
Default Value
<Edge-Triggered>
Peripheral Type
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the Peripheral Type for UART Port 1
Possible Values
<RS232>
<RS485>
Default Value
<RS232>
Clock Source
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the frequency of the clock source
Possible Values
<1.8462 MHz>
<2 MHZ>
<24 MHz>
<14.769 MHz>
Default Value
<1.8462 MHz>
128 Bytes FIFO
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Enables or Disable 128 Byte FIFO
Default Value
<Enabled>
COM1 Mode Selection
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the mode the transceiver for COM1 will transmit in
Possible Values
<Low Power Shutdown>
<Pure RS-232>
<RS-485 Half Duplex (TX ENABLE Low Active)>
<RS-485 Half Duplex (TX ENABLE High Active)>
<RS-485 Half Duplex (Terminated)>
<RS-422 Full Duplex>
<Pure RS-232 (co-exists with RS485)>
<RS-422 Full Duplex (Terminated)>
Default Value
<Pure RS-232>
PWR_EN
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Enable the power output on Pin 9 Ring Indicator
Default Value
<Enabled>
PWR_SEL
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 1 Configuration
Description
Defines the Voltage on Pin 9 Ring Indicator
Possible Values
<5V>
<12V>
Default Value
<5V>
UART Port 2 Configuration
UART Port 2
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Enables or disables UART Port 2
Default Value
<Enabled>
Base I/O Address
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the Base I/O Address for UART Port 2
Possible Values
<3F8h>
<2F8h>
<3E8h>
<2E8h>
<338h>
<228h>
<220h>
<238h>
Default Value
<28FH>
Interrupt
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the Interrupt for UART Port 2
Possible Values
<IRQ3>
<IRQ4>
<IRQ5>
<IRQ6>
<IRQ7>
<IRQ10>
<IRQ11>
Default Value
<IRQ3>
Sharing IRQ
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines IRQ Exclusivity for UART Port 2
Possible Values
<Shared>
<Exclusive>
Default Value
<Exclusive>
Interrupt Polarity
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the Interrupt Polarity for UART Port 2
Possible Values
<Active-High>
<Active-Low>
Default Value
<Active-High>
Interrupt Mode
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the Interrupt Mode for UART Port 2
Possible Values
<Level-Triggered>
<Edge-Triggered>
Default Value
<Edge-Triggered>
Peripheral Type
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the Peripheral Type for UART Port 2
Possible Values
<RS232>
<RS485>
Default Value
<RS232>
Clock Source
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the frequency of the clock source
Possible Values
<1.8462 MHz>
<2 MHZ>
<24 MHz>
<14.769 MHz>
Default Value
<1.8462 MHz>
128 Bytes FIFO
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Enables or Disable 128 Byte FIFO
Default Value
<Enabled>
COM1 Mode Selection
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the mode the transceiver for COM1 will transmit in
Possible Values
<Low Power Shutdown>
<Pure RS-232>
<RS-485 Half Duplex (TX ENABLE Low Active)>
<RS-485 Half Duplex (TX ENABLE High Active)>
<RS-485 Half Duplex (Terminated)>
<RS-422 Full Duplex>
<Pure RS-232 (co-exists with RS485)>
<RS-422 Full Duplex (Terminated)>
Default Value
<Pure RS-232>
PWR_EN
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Enable the power output on Pin 9 Ring Indicator
Default Value
<Enabled>
PWR_SEL
Type
Configurable
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > UART Port 2 Configuration
Description
Defines the Voltage on Pin 9 Ring Indicator
Possible Values
<5V>
<12V>
Default Value
<5V>
Fan Control
CPUFANIN
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Displays the status of CPUFANIN (The external fan on the K800)
Mode
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Defines the Mode the Fan can operate
Possible Values
<Manual>
<Thermal Cruise>
<Speed Cruise>
<Smart Fan IV>
Default Value
<Manual>
PWM/DC Output
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Sets the fan in PWM or DC mode
Possible Values
<PWM Duty Cycle (%)>
<DC Voltage (%)>
Default Value
<PWM Duty Cycle (%)>
Output Buffer Type
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Sets the output buffer type
Possible Values
<Open-Drain>
<Push-Pull>
Default Value
<Open-Drain>
PWM Duty Cycle (%)
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Sets the Duty Cycle for the external fan header on the K800
Possible Values
Any value between 0 and 100
Default Value
50
AUXFANIN2
Type
Sub-Menu
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Displays the status of AUXFANIN2 (Fan control on Riser cards featured on K803 and K804)
Mode
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Defines the Mode the Fan can operate (Fan control on Riser cards featured on K803 and K804)
Possible Values
<Manual>
<Thermal Cruise>
<Speed Cruise>
<Smart Fan IV>
Default Value
<Manual>
PWM/DC Output
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Sets the fan in PWM or DC mode (Fan control on Riser cards featured on K803 and K804)
Possible Values
<PWM Duty Cycle (%)>
<DC Voltage (%)>
Default Value
<PWM Duty Cycle (%)>
Output Buffer Type
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Sets the output buffer type (Fan control on Riser cards featured on K803 and K804)
Possible Values
<Open-Drain>
<Push-Pull>
Default Value
<Open-Drain>
PWM Duty Cycle (%)
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Fan Control
Description
Sets the Duty Cycle for the fan control on Riser cards featured on K803 and K804
Possible Values
Any value between 0 and 100
Default Value
<Open-Drain>
Hardware Monitor
Refresh Cycle
Type
Configurable Setting
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Sets the refresh rate for sensors to be updated
Default Value
[1]
VIN0
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured Voltage on the 12V rail
AVSB
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured Voltage on the 3.3V auxiliary Standby rail
3VCC
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured Voltage on the 3.3V rail
VHIF
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured Voltage on the 1.8V rail
3VSB
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured Voltage on the 3.3V standby rail
VBAT
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured Voltage on the CMOS battery
VTT
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured Voltage on the VTT Power Rail
SYSTIN
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured temperature on the chipset
CPUTIN
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the measured temperature on the CPU
AUXTIN
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Reserved for future thermal sensing
CPUFANIN
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the CPU Fan Speed (Located on the I/O of the K800)
AUXFANIN2
Type
Information
BIOS Page
Advanced Page > PCH-IO > SIO NCT5525D > Hardware Monitor
Description
Displays the Fan Speed on the risers for K803 and K804
4- Security Page
Current TPM Device
Type
Information
BIOS Page
Security Page
Description
Displays current TPM device
TPM State
Type
Information
BIOS Page
Security Page
Description
Displays current TPM state
TPM Active PCR Hash Algorithm
Type
Information
BIOS Page
Security Page
Description
Displays active PCR hash algorithm
TPM Hardware Supported Hash Algorithm
Type
Information
BIOS Page
Security Page
Description
Displays hardware supported hash algorithm
BIOS Supported Hash Algorithm
Type
Information
BIOS Page
Security Page
Description
Displays BIOS supported hash algorithm
TrEE Protocol Version
Type
Configurable Setting
BIOS Page
Security Page
Description
Sets the TrEE Protocol Version: 1.0 or 1.1. Possible values: 1.1, 1.0. Default value: 1.1
Possible Values
1.1, 1.0
Default Value
1.1
TPM Availability
Type
Configurable Setting
BIOS Page
Security Page
Description
Enables or Disables the TPM hardware
Possible Values
Available (enabled), Hidden (disabled)
Default Value
Available
TPM Operation
Type
Configurable Setting
BIOS Page
Security Page
Description
Sets the TPM2 operation state
Possible Values
- No Operation
- Enable
- SetPCRBanks(Algorithm)
- LogAllDigests
- SetPPRequiredForClear_True
- SetPPRequiredForClear_False
- SetPPRequiredForTurnOn_False
- SetPPRequiredForTurnOn_True
- SetPPRequiredForTurnOff_False
- SetPPRequiredForTurnOff_True
- SetPPRequiredForChangePCRs_False
- SetPPRequriedForChangePCRs_True
- SetPPRequiredForChangeEPS_False
- SetPPRequiredForChangeEPS_True
- ChangeEPS
Default Value
No Operation
Clear TPM
Type
Configurable Setting
BIOS Page
Security Page
Description
Enables or Disables clearing TPM user data such as passwords, certificates, and keys
Default Value
[ ] (disabled)
Set Supervisor Password
Type
Configurable Setting
BIOS Page
Security Page
Description
Sets or Changes the supervisor password
Note: The password must be more than one character in length
5- Boot Page
Boot Type
Type
Configurable Setting
BIOS Page
Boot Page
Description
Sets the boot mode
Possible Values
UEFI Boot Type
Default Value
<UEFI Boot Type>
Quick Boot
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables Quick Boot
Default Value
<Enabled>
Quiet Boot
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables Quiet Boot
Default Value
<Enabled>
Network Stack
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables the onboard NICs before UEFI handoff
Default value: Disabled
Default Value
Disabled
PXE Boot Capability
Type
Configurable Setting
BIOS Page
Boot Page
Description
Sets the PXE Boot mode
Note: This setting is unavailable unless Network Stack is Enabled
Possible Values
- Disabled
- UEFI: IPv4
- UEFI: IPv6
- UEFI: IPv4/IPv6
Default Value
Disabled
Add Boot Options
Type
Configurable Setting
BIOS Page
Boot Page
Description
Sets which device in the boot order list the system will attempt to boot first and the direction it will move through the list (see section 5.1 below)
Possible Values
- Auto (boot order is not configurable, uses the system default)
- First (system moves through the boot order list top to bottom)
- Last (system moves through the boot order list bottom to top)
Default Value
<Auto>
USB Boot
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables booting from USB devices
Default Value
<Enabled>
UEFI OS Fast Boot
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables Fast Boot mode. When enabled, the BIOS will not initialize the keyboard during boot or watch for the BIOS menu keypress
Default Value
<Disabled>
USB Hot Key Support
Type
Configurable Setting
BIOS Page
Boot Page
Description
Enables or Disables USB Hot Key Support
Default Value
<Enabled>
Timeout
Type
Configurable Setting
BIOS Page
Boot Page
Description
The number of seconds that the firmware will wait before booting the original default boot selection
Default Value
[0]
EFI
Type
Sub-Menu
BIOS Page
Boot Page
Description
Opens the EFI Boot Order sub-menu (see section 5.1 below)
5.1- EFI
Note: The EFI boot order configuration in this menu can only be changed if the Add Boot Options option above is set to First or Last.
In this menu, you set which devices the system can boot to, as well as change the order in which it attempts to boot. Highlight a boot device and press Enter to enable or disable booting to it. Use the F5 and F6 keys to move the boot device up and down the list.
6- Exit Page
Exit Saving Changes
Type
Exit Mode
BIOS Page
Exit Page
Description
Saves your changes and exits the BIOS setup menu
Save Change Without Exit
Type
Exit Mode
BIOS Page
Exit Page
Description
Saves your changes, but does not exit the BIOS setup menu
Exit Discarding Changes
Type
Selectable
BIOS Page
Exit Page
Description
Exits the BIOS setup menu without saving your changes
Load Optimal Defaults
Type
Selectable
BIOS Page
Exit Page
Description
Loads the firmware’s optimal default settings
Load Custom Defaults
Type
Selectable
BIOS Page
Exit Page
Description
Loads user-specified set of default settings
Save Custom Defaults
Type
Selectable
BIOS Page
Exit Page
Description
Saves current settings as user-specified set
Discard Changes
Type
Selectable
BIOS Page
Exit Page
Description
Discards all changes, but does not exit the BIOS setup menu
7- RAID Configuration
7.1- RAID Overview
RAID (Redundant Array of Independent Disks) is a technology used to stitch multiple storage drives together into a single volume for a variety of purposes. The Intel W680 chipset on the Karbon 800 platform features Intel Rapid Storage Technology (RST), an integrated firmware-level RAID utility for SATA and NVMe disks. Intel RST on Alder Lake chipsets is only supported in Windows; Linux users will need to use a dedicated hardware RAID solution or a software-level RAID utility such as mdadm.
Because the RAID volumes are maintained at the firmware level, the disks in an array do not need to match perfectly. However, the timing parameters of all disks in a certain array, such as write speed, will be limited by the chipset to the lowest value among those disks.
On the Karbon platform, the M.2 B-Key, both M.2 M-Key, and both cabled SATA connectors can be configured in RAID arrays.
Different types of RAID arrays are referred to as “levels”. Intel RST on the Helix platform supports four RAID levels:
RAID 0 (Striped): In a RAID 0 array, data written to the volume is split between two or more disks. Each disk’s storage space is divided into blocks, the size of which can be set by the user. When writing data to the volume, the SATA controller will rotate block-by-block between the disks. This methodology can provide noticeable improvements to read and write speeds; however, if one disk in a RAID 0 array fails, the data on the entire volume will be lost.
RAID 1 (Mirrored): In a RAID 1 array, the SATA controller mirrors all data between two or more disks. The primary benefit of this methodology is that if a drive in the array is disconnected or fails altogether, the volume will continue to function as normal. If an OS is installed on the volume, it will not be interrupted by a failing drive. A drive can then be reconnected or replaced, at which time the SATA controller will rebuild the volume (note that the rebuild process can take several hours or even days for larger volumes). This RAID configuration has no noticeable effect on write speeds but typically improves read speeds, as the system can read from multiple disks simultaneously.
RAID 5 (Striped with Parity): A RAID 5 array functions similarly to a RAID 0 array in that it stripes data across multiple disks; however, for each set of blocks, it also writes a block of parity data that can be used to recover a block on another disk if it loses that data. Thus, you can achieve some of the performance gains of a RAID 0 array while being able to withstand a single disk failure. This methodology requires at least three disks.
RAID 10 (Striped and Mirrored): A RAID 10 array combines two RAID 1 arrays in a RAID 0 array. This allows you to achieve the performance gains of a RAID 0 array while still maintaining the fault tolerance of a RAID 1 array. Data is striped between the two RAID 1 volumes, which are able to withstand and rebuild after a failed disk. This methodology requires at least four disks. This RAID level is also sometimes referred to as RAID 1+0.
Recovery: Intel Rapid Recovery Technology creates a special RAID 1 array where instead of two equivalent disks, one disk is designated the “primary” and the other the “secondary”. Data is written to the primary drive, then copied to the secondary drive as a backup. This allows you to decide if you would like the mirroring to occur continuously or only on request; in addition, the time it takes to rebuild the array after a disk failure is decreased. However, the read speed improvements of a typical RAID 1 array are not seen here, as the SATA controller will typically only read from the primary drive.
Note: Creating a new RAID array will erase all filesystems and data on all the disks used.
7.2- Creating and Managing RAID Volumes with Intel RST
Device Management Menu
From the main menu, select “Device Management”. You will be greeted with the Device Manager options pictured below. Select “Intel(R) Rapid Storage Technology” to continue.
Note: The Intel(R) Rapid Storage Technology menu will only appear if you have set the SATA Mode Selection option to Intel RST Premium With Intel Optane System Acceleration. This option is located in the main BIOS setup under Advanced > PCH-IO Configuration > SATA And RST Configuration.
Intel(R) Rapid Storage Technology Menu
This menu will list all existing RAID arrays, as well as all SATA disks that are not currently in an array. Select “Create RAID Volume” to continue.
Creating a New RAID Array
The following menu will give you the option to specify the name of your RAID volume, the RAID level of the configuration, and which disks will become part of the array. Begin by specifying the name of the volume if desired and selecting a RAID Level.
Then, select which SATA disks will be used to create the array. Note that any disks being used in a different RAID array will not be selectable. If you are creating an array with the RAID level “Recovery”, you will need to select which drive is the primary (M) and which is the secondary (R).
For RAID 0, 5, and 10 configurations, you can specify the strip size if desired. The strip size options vary depending on the RAID level of the configuration. In addition, you can set the capacity of the volume if you would like it smaller than the maximum available. If you are creating a “Recovery” array, you can also select if the slave drive is synchronized with the master continuously or only on request.
Select “Create Volume” to return to the Device Manager menu. You should now see your new volume listed in the menu; hit F10 to save your new settings and Escape to return to the main BIOS menu.
Your RAID array is now created and ready for use.
8- BIOS Updates
The latest BIOS updates are available within the K800 Product Documentation.
Last updated
