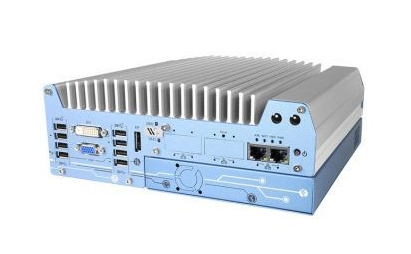

Nuvo-7000 Series

Manual, Drivers, Datasheet

As a certified OnLogic solution, all detailed product documentation, including user manuals, technical specifications, regulatory information, and software downloads, is available directly on the manufacturer support site linked below.

How to Enable Auto Power On

1. Power on the unit and immediately press the F2 key a few times to access the BIOS.

2. Navigate to the Power tab.

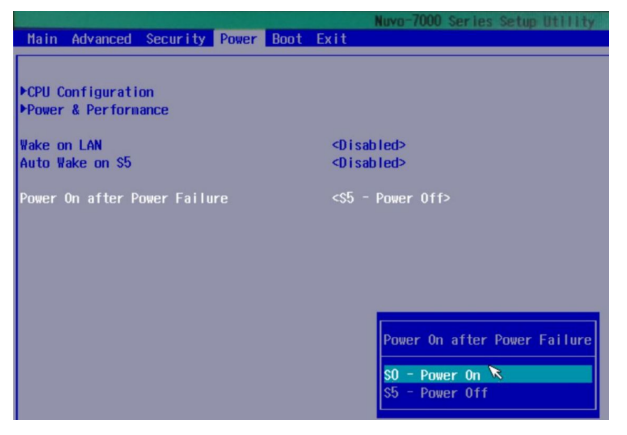

3. Change the “Power On after Power Failure” option to “S0-Power On”

4. Navigate to the Exit tab.

5. Save Changes and Exit.

6. The unit will not automatically power on when power is connected.

Troubleshooting

Opening the Nuvo-7000 Case and Clearing CMOS

The Nuvo-7000 can be opened by the user. This does not void the warranty, however, any damage caused by doing so will not be covered.

Required tools: 5mm Hex Driver, P2 Phillips Driver

Clearing CMOS

1. Unplug the system completely from power and all peripherals

2. Unscrew all hex bolts from the blue panel on the side with the power button.

3. Remove the panel and set it aside.

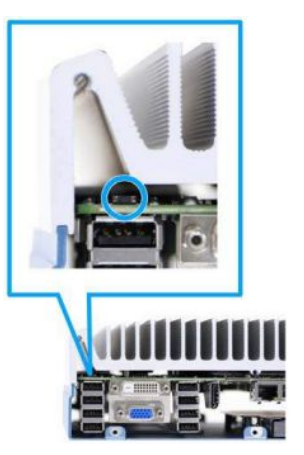

1. Press and hold the pictured CMOS reset button for 10 seconds. The CMOS is now clear.

2. Reinstall the panel and power on the unit.

Disassembling the Nuvo-7000 Case

Required tools: 5mm Hex Driver, P2 Phillips Driver

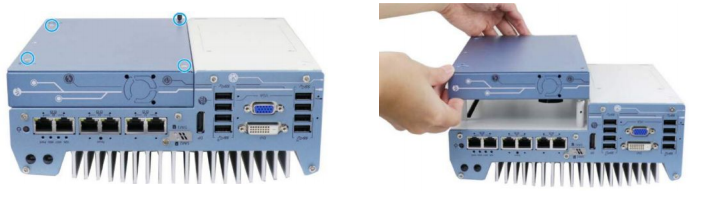

1. Unscrew the four M3 flat-head screws and detach Cassette by pulling it up. NOTE: LP models do not have the cassette. You may skip to step 3.

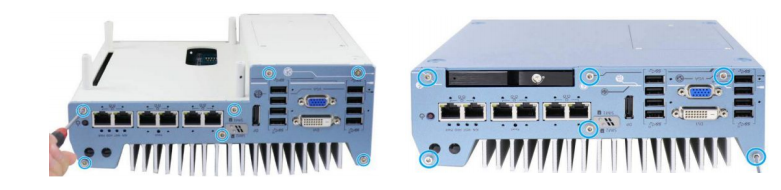

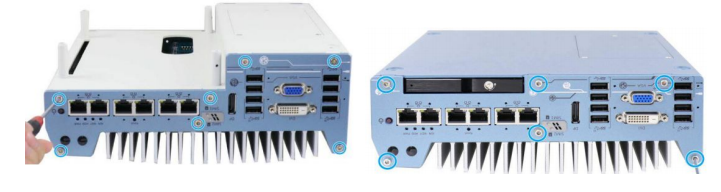

1. Unscrew all hex bolts on the front and back panel.

2. Remove both panels.

Use caution if WiFi is installed as they are still attached by the antenna wires.

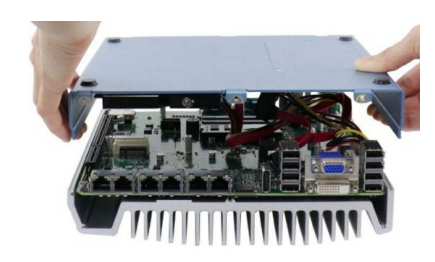

1. Lift the bottom cover up a couple inches and gently unplug the SATA cables.

2. Set the bottom cover aside.

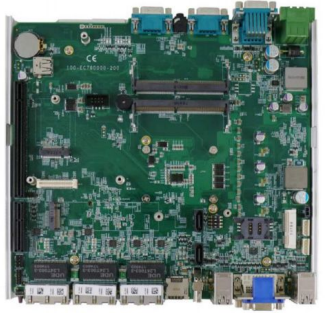

3. You now have complete access to the internals of the unit.

Adjusting Automotive Timings on Nuvo-7000

Units equipped with the MezIO ignition timings card can be remotely turned on and off using the IGN pin on the power connector.

The timings are adjusted by a rotary switch inside the unit. To access the switch, perform the following steps:

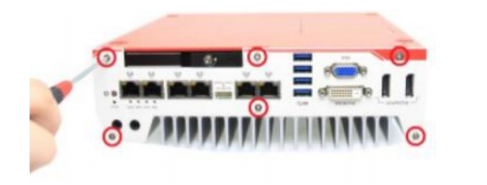

1. Remove the 6x Hex bolts from this side of the unit only:

1. Remove the white plate to reveal the timings dial.

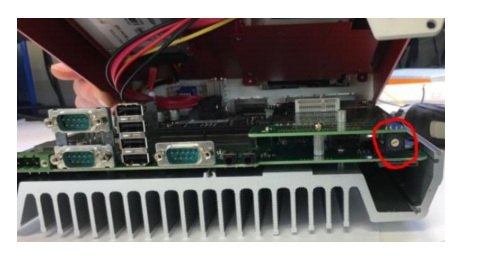

1. Using a small flathead screwdriver, carefully rotate the dial to the desired timings setting.

The following are timing settings that can be set on the Nuvo-7000

Ignition Timing Options

Mode 0

Mode 0 is the ATX mode without power-on and power-off delay. User can only use the power button on the front panel to turn on or turn off the Nuvo-7000 series system.

Mode 1

If Mode 1 is specified, the system automatically turns on the system when DC power is applied. A retry mechanism is designed to repeat the power-on cycle if the system is failed to boot up.

Mode 2

Mode 2 is a special mode designed to support remote on/off control. User can use an external latched switch to connect the DC source (8~35V) and IGN input. When the switch is closed, IGN signal is asserted to initiate a power on operation. When the switch is opened, IGN signal is de-asserted and system shutdown operation is initiated. Neither power-on delay nor power-off delay is supported in this mode.

Mode 3 ~ Mode 12

Mode 3 ~ Mode 12 are ignition power control modes with various power-on delay and power-off delay. Each mode supports a hard-off timeout of 10 minutes.

Mode 13/Mode 14

Mode 13 and Mode 14 are ignition power control modes with very long power-off delay. Both modes support the feature of “smart off-delay”, which automatically detect system status during power-off delay duration and cut off system power if system is off in prior to power-off delay expired.

Ignition Wiring

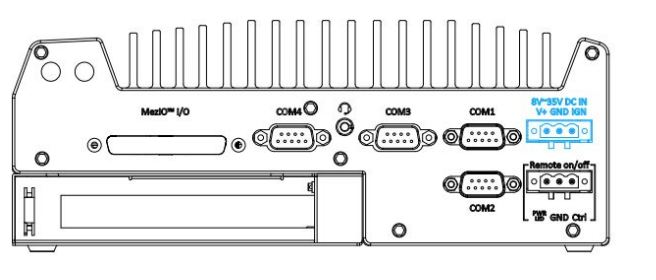

To have ignition power control for in-vehicle usage, you need to supply IGN signal to Nuvo-7000 series with MezIO-V20. The IGN input is located on the back panel via a 3-pin pluggable terminal block (shared with DC power input). Here is a general wiring configuration for in-vehicle deployment.

1. Connect car Battery+ line (12V for car, 24V for bus/truck) to V+.

2. Connect car Battery-/GND line to GND.

3. Connect ACC line to IGN.

Notes:

1. Please make sure your DC power source and IGN signal share the same ground.

2. IGN input of Nuvo-7000 series accepts 8~35VDC. Supplying a voltage higher than 35VDC may damage the system.
